Skookum 400 Series Full Sided Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Equipped with tapered roller bearings for long life in higher line speed applications.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Full side design to maximize sheave protection.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

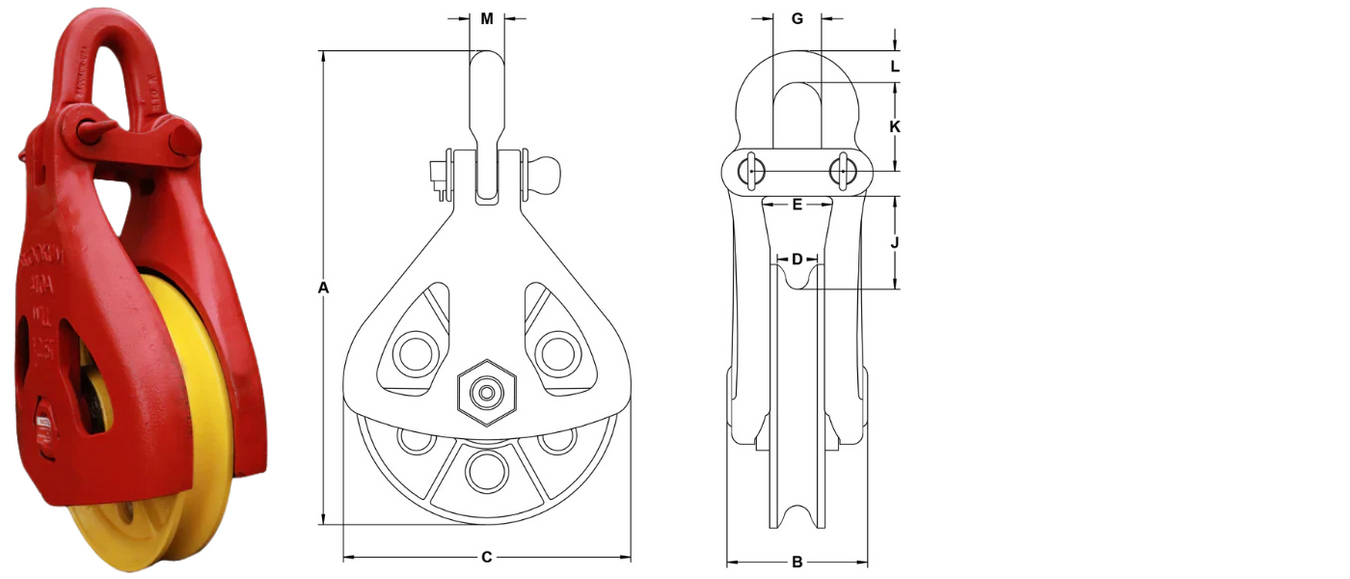

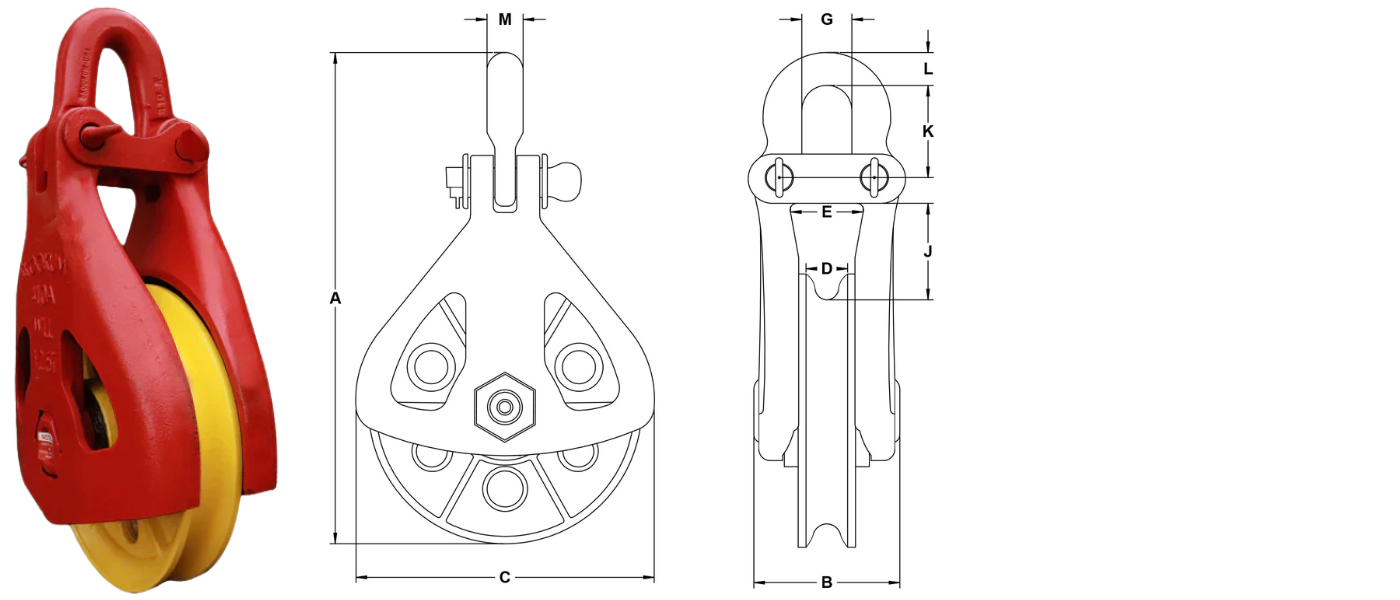

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Min. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) Inside Yoke Width G (in.) Yoke Width Below J (in.) K (in.) L (in.) M (in.) Price Quantity
573503 REGULAR YOKE 16" 3/4" 3/4" 17.5 27 6.25 17 2 3 2.38 3 3 4.75 2.5 1.75 1.63 $4,018.28
573502 SWIVEL SHACKLE 16" 3/4" 3/4" 17.5 27 6.25 17 2 3 2.38 3 3 4.75 2.5 1.75 1.63 $4,527.96

Products

MPN: 573503
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 3/4"
Wire Rope Min.: 3/4"
Working Load Limit (Ton): 17.5
A (in.): 27
B (in.): 6.25
C (in.): 17
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 3
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$4,018.28
MPN: 573502
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 16"
Wire Rope Min.: 3/4"
Wire Rope Min.: 3/4"
Working Load Limit (Ton): 17.5
A (in.): 27
B (in.): 6.25
C (in.): 17
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 3
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$4,527.96
