Skookum 400 Series Half Sided Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Equipped with tapered roller bearings for long life in higher line speed applications.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Half side design for strength with minimized weight.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

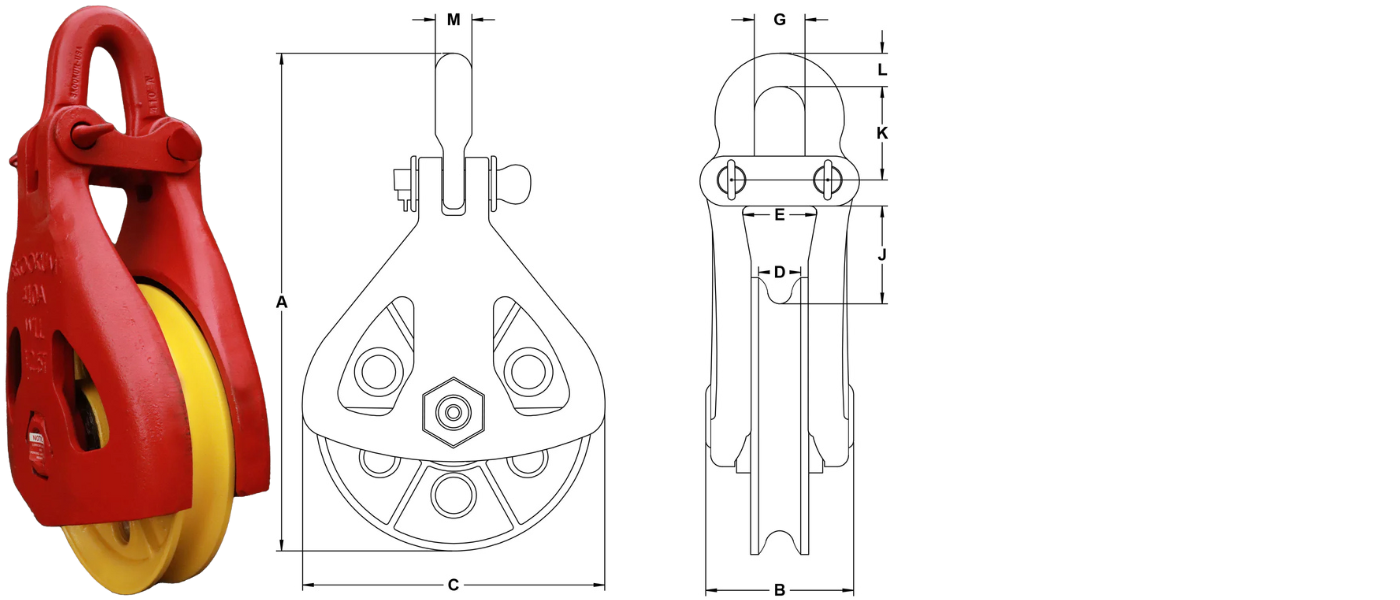

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) Inside Yoke Width G (in.) Yoke Width Below J (in.) K (in.) L (in.) M (in.) Price Quantity
553303 REGULAR YOKE 10" 5/8" 3/4" 12.5 18.5 5.5 11 1.75 2.75 1.75 1.75 2.75 4.5 2.5 1.5 1.25 $2,200.63
558203 REGULAR YOKE 12" 3/4" 7/8" 17.5 21 6.25 12.5 2 3 2.38 2.38 3 4.75 2.5 1.75 1.63 $2,513.24
558202 SWIVEL SHACKLE 12" 3/4" 7/8" 17.5 21 6.25 12.5 2 3 2.38 2.38 3 4.75 2.5 1.75 1.63 $3,299.14
558303 REGULAR YOKE 14" 3/4" 7/8" 17.5 23 6.25 15 2 3 3.3 3.38 3 4.75 2.5 1.75 1.63 $2,936.10
558302 SWIVEL SHACKLE 14" 3/4" 7/8" 17.5 23 6.25 15 2 3 3.38 3.38 3 4.75 2.5 1.75 1.63 $3,452.55
558403 REGULAR YOKE 16" 7/8" 1" 17.5 25 6.25 17 2 3 2.38 2.38 3 4.75 2.5 1.75 1.63 $3,084.85
558402 SWIVEL SHACKLE 16" 7/8" 1" 17.5 25 6.25 17 2 3 2.38 2.38 3 4.75 2.5 1.75 1.63 $3,486.07

Products

MPN: 553303
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 5/8"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 12.5
A (in.): 18.5
B (in.): 5.5
C (in.): 11
D (in.): 1.75
E (in.): 2.75
Inside Yoke Width: 1.75
G (in.): 1.75
Yoke Width Below: 2.75
J (in.): 4.5
K (in.): 2.5
L (in.): 1.5
M (in.): 1.25
Price:$2,200.63
MPN: 558203
End Fittings: REGULAR YOKE
Sheave Diameter: 12"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 17.5
A (in.): 21
B (in.): 6.25
C (in.): 12.5
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 2.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$2,513.24
MPN: 558202
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 12"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 17.5
A (in.): 21
B (in.): 6.25
C (in.): 12.5
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 2.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$3,299.14
MPN: 558303
End Fittings: REGULAR YOKE
Sheave Diameter: 14"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 17.5
A (in.): 23
B (in.): 6.25
C (in.): 15
D (in.): 2
E (in.): 3
Inside Yoke Width: 3.3
G (in.): 3.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$2,936.10
MPN: 558302
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 14"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 17.5
A (in.): 23
B (in.): 6.25
C (in.): 15
D (in.): 2
E (in.): 3
Inside Yoke Width: 3.38
G (in.): 3.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$3,452.55
MPN: 558403
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 25
B (in.): 6.25
C (in.): 17
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 2.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$3,084.85
MPN: 558402
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 16"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 25
B (in.): 6.25
C (in.): 17
D (in.): 2
E (in.): 3
Inside Yoke Width: 2.38
G (in.): 2.38
Yoke Width Below: 3
J (in.): 4.75
K (in.): 2.5
L (in.): 1.75
M (in.): 1.63
Price:$3,486.07
