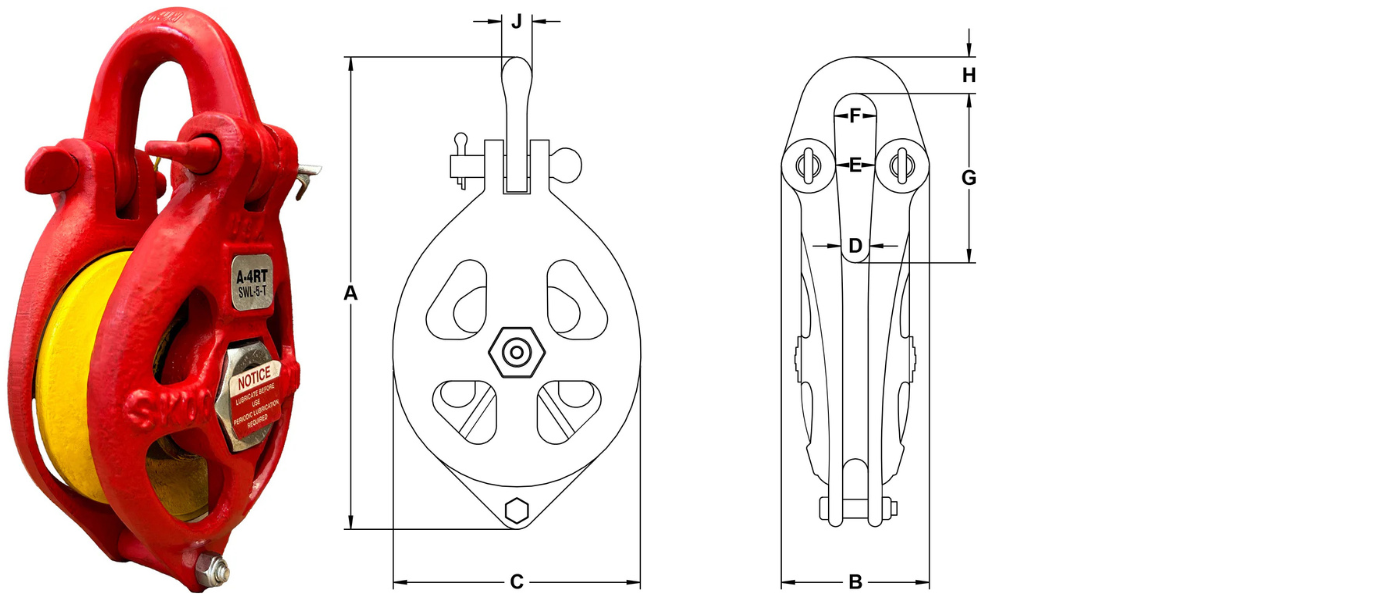

Skookum A Series Full Sided Blocks

Skookum A Series 5T cast full sided block with yoke. Model A-4RT with 4 in. sheave for 3/8 in. wire rope. Roller bearings.

Work-hardening manganese steel sheaves maximize wire rope and sheave life.
Recessed sheave design prevents wire rope from binding between sheave and block side.
Full sided block maximizes sheave protection and strength.
Versatile draw pin allow for rapid reeving & exchange of attaching style.
Rugged cast alloy steel sides for demanding environments.
ASME B30.26-1 compliant

MPN	End Fittings	Sheave Diameter	Wire Rope Min.	Wire Rope Max.	Working Load Limit (Ton)	A (in.)	B (in.)	C (in.)	D (in.)	E (in.)	F (in.)	G (in.)	H (in.)	J (in.)	Price	Quantity
Skookum A Series 5T Cast Full Sided Block with YOKE (A-4RT)	680300	REGULAR YOKE	4	1/4"	3/8"	5	9.63	3.5	4.5	1.13	1.5	1.43	3.5	0.88	0.75	$809.75

Skookum A Series 5T Cast Full Sided Block with SWIVEL HOOK (A-4RT)	680301	SWIVEL HOOK	4	1/4"	3/8"	5	9.63	3.5	4.5	1.13	1.5	1.43	3.5	0.88	0.75	$1,013.46

Skookum A Series 6.5T Cast Full Sided Block with YOKE (A-6RT)	680600	REGULAR YOKE	6	3/8"	1/2"	6.5	12	4	6.5	0.88	1.5	1.13	4.5	1.06	1.25	$1,039.71

Skookum A Series 5T Cast Full Sided Block with SWIVEL SHACKLE (A-4RT)	680302	SWIVEL SHACKLE	4	1/4"	3/8"	5	9.63	3.5	4.5	1.13	1.5	1.43	3.5	0.88	0.75	$1,048.64

Skookum A Series 6.5T Cast Full Sided Block with SWIVEL HOOK (A-6RT)	680601	SWIVEL HOOK	6	3/8"	1/2"	6.5	12	4	6.5	0.88	1.5	1.13	4.5	1.06	1.25	$1,326.06

Skookum A Series 6.5T Cast Full Sided Block with SWIVEL SHACKLE (A-6RT)	680602	SWIVEL SHACKLE	6	3/8"	1/2"	6.5	12	4	6.5	0.88	1.5	1.13	4.5	1.06	1.25	$1,363.10

Skookum A Series 6.5T Cast Full Sided Block with YOKE (A-8RT)	680900	REGULAR YOKE	8	1/2"	5/8"	6.5	16.38	4	8.63	1	1.5	1.5	5.75	1.13	1.38	$1,386.73

Skookum A Series 6.5T Cast Full Sided Block with SWIVEL HOOK (A-8RT)	680901	SWIVEL HOOK	8	1/2"	5/8"	6.5	16.38	4	8.63	1	1.5	1.5	5.75	1.13	1.38	$1,701.48

Skookum A Series 6.5 Ton Cast Full Sided Block with YOKE (A-10RT)	563800	REGULAR YOKE	10	5/8"	3/4"	6.5	18.5	4	11	1	1.5	1.5	6	1.13	1.38	$1,838.28

Skookum A Series 6.5T Cast Full Sided Block with SWIVEL SHACKLE (A-8RT)	680902	SWIVLE SHACKLE	8	1/2"	5/8"	6.5	16.38	4	8.63	1	1.5	1.5	5.75	1.13	1.38	$1,855.84

Skookum A Series 6.5 Ton Cast Full Sided Block with SWIVEL HOOK (A-10RT)	563801	SWIVEL HOOK	10	5/8"	3/4"	6.5	18.5	4	11	1	1.5	1.5	6	1.13	1.38	$1,949.66

Skookum A Series 6.5 Ton Cast Full Sided Block with SWIVEL SHACKLE (A-10RT)	563802	SWIVEL SHACKLE	10	5/8"	3/4"	6.5	18.5	4	11	1	1.5	1.5	6	1.13	1.38	$2,005.15

Skookum A Series 12.5 Ton Cast Full Sided Block with YOKE (A-12RT)	571100	REGULAR YOKE	12	3/4"	7/8"	12.5	21	6.25	12.5	1	1.75	1.75	7.25	1.44	1.38	$2,640.51

Skookum A Series 12.5 Ton Cast Full Sided Block with SWIVEL SHACKLE (A-12RT)	571102	SWIVEL SHACKLE	12	3/4"	7/8"	12.5	21	6.25	12.5	1	1.75	1.75	7.25	1.44	1.38	$3,217.62

Products

MPN: 680300

End Fittings: REGULAR YOKE

Sheave Diameter: 4

Wire Rope Min.: 1/4"

Wire Rope Max.: 3/8"

Working Load Limit (Ton): 5

A (in.): 9.63

B (in.): 3.5

C (in.): 4.5

D (in.): 1.13

E (in.): 1.5

F (in.): 1.43

G (in.): 3.5

H (in.): 0.88

J (in.): 0.75

Price:$809.75

MPN: 680301

End Fittings: SWIVEL HOOK

Sheave Diameter: 4

Wire Rope Min.: 1/4"

Wire Rope Max.: 3/8"

Working Load Limit (Ton): 5

A (in.): 9.63

B (in.): 3.5

C (in.): 4.5

D (in.): 1.13

E (in.): 1.5

F (in.): 1.43

G (in.): 3.5

H (in.): 0.88

J (in.): 0.75

Price:$1,013.46

MPN: 680600

End Fittings: REGULAR YOKE

Sheave Diameter: 6

Wire Rope Min.: 3/8"

Wire Rope Max.: 1/2"

Working Load Limit (Ton): 6.5

A (in.): 12

B (in.): 4

C (in.): 6.5

D (in.): 0.88

E (in.): 1.5

F (in.): 1.13

G (in.): 4.5

H (in.): 1.06

J (in.): 1.25

Price:$1,039.71

MPN: 680302

End Fittings: SWIVEL SHACKLE

Sheave Diameter: 4

Wire Rope Min.: 1/4"

Wire Rope Max.: 3/8"

Working Load Limit (Ton): 5

A (in.): 9.63

B (in.): 3.5

C (in.): 4.5

D (in.): 1.13

E (in.): 1.5

F (in.): 1.43

G (in.): 3.5

H (in.): 0.88

J (in.): 0.75

Price:$1,048.64

MPN: 680601

End Fittings: SWIVEL HOOK

Sheave Diameter: 6

Wire Rope Min.: 3/8"

Wire Rope Max.: 1/2"

Working Load Limit (Ton): 6.5

A (in.): 12

B (in.): 4

C (in.): 6.5

D (in.): 0.88

E (in.): 1.5

F (in.): 1.13

G (in.): 4.5

H (in.): 1.06

J (in.): 1.25

Price:$1,326.06

MPN: 680602

End Fittings: SWIVEL SHACKLE

Sheave Diameter: 6

Wire Rope Min.: 3/8"

Wire Rope Max.: 1/2"

Working Load Limit (Ton): 6.5

A (in.): 12

B (in.): 4

C (in.): 6.5

D (in.): 0.88

E (in.): 1.5

F (in.): 1.13

G (in.): 4.5

H (in.): 1.06

J (in.): 1.25

Price:$1,363.10

MPN: 680900

End Fittings: REGULAR YOKE

Sheave Diameter: 8

Wire Rope Min.: 1/2"

Wire Rope Max.: 5/8"

Working Load Limit (Ton): 6.5

A (in.): 16.38

B (in.): 4

C (in.): 8.63

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 5.75

H (in.): 1.13

J (in.): 1.38

Price:$1,386.73

MPN: 680901

End Fittings: SWIVEL HOOK

Sheave Diameter: 8

Wire Rope Min.: 1/2"

Wire Rope Max.: 5/8"

Working Load Limit (Ton): 6.5

A (in.): 16.38

B (in.): 4

C (in.): 8.63

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 5.75

H (in.): 1.13

J (in.): 1.38

Price:$1,701.48

MPN: 563800

End Fittings: REGULAR YOKE

Sheave Diameter: 10

Wire Rope Min.: 5/8"

Wire Rope Max.: 3/4"

Working Load Limit (Ton): 6.5

A (in.): 18.5

B (in.): 4

C (in.): 11

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 6

H (in.): 1.13

J (in.): 1.38

Price:$1,838.28

MPN: 680902

End Fittings: SWIVLE SHACKLE

Sheave Diameter: 8

Wire Rope Min.: 1/2"

Wire Rope Max.: 5/8"

Working Load Limit (Ton): 6.5

A (in.): 16.38

B (in.): 4

C (in.): 8.63

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 5.75

H (in.): 1.13

J (in.): 1.38

Price:$1,855.84

MPN: 563801

End Fittings: SWIVEL HOOK

Sheave Diameter: 10

Wire Rope Min.: 5/8"

Wire Rope Max.: 3/4"

Working Load Limit (Ton): 6.5

A (in.): 18.5

B (in.): 4

C (in.): 11

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 6

H (in.): 1.13

J (in.): 1.38

Price:$1,949.66

MPN: 563802

End Fittings: SWIVEL SHACKLE

Sheave Diameter: 10

Wire Rope Min.: 5/8"

Wire Rope Max.: 3/4"

Working Load Limit (Ton): 6.5

A (in.): 18.5

B (in.): 4

C (in.): 11

D (in.): 1

E (in.): 1.5

F (in.): 1.5

G (in.): 6

H (in.): 1.13

J (in.): 1.38

Price:$2,005.15

MPN: 571100

End Fittings: REGULAR YOKE

Sheave Diameter: 12

Wire Rope Min.: 3/4"

Wire Rope Max.: 7/8"

Working Load Limit (Ton): 12.5

A (in.): 21

B (in.): 6.25

C (in.): 12.5

D (in.): 1

E (in.): 1.75

F (in.): 1.75

G (in.): 7.25

H (in.): 1.44

J (in.): 1.38

Price:$2,640.51

MPN: 571102

End Fittings: SWIVEL SHACKLE

Sheave Diameter: 12

Wire Rope Min.: 3/4"

Wire Rope Max.: 7/8"

Working Load Limit (Ton): 12.5

A (in.): 21

B (in.): 6.25

C (in.): 12.5

D (in.): 1

E (in.): 1.75

F (in.): 1.75

G (in.): 7.25

H (in.): 1.44

J (in.): 1.38

Price:$3,217.62
