1 1/2" - 3 1/2 Forged Swivel Hoist Ring Coil Thread 24,000 lbs WLL (57152)

Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 57152
Description: Forged Swivel Hoist Ring Coil Thread
Working Load Limit: 24,000 lbs
Thread Type: Coil
Thread Size: 1 1/2" - 3 1/2

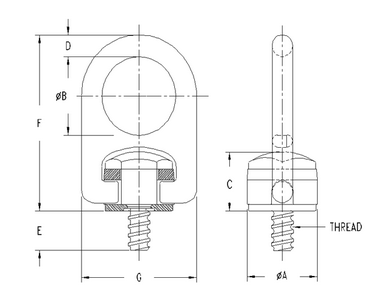

A: 3.50 in
B: 4.00 in
C: 3.28 in
D: 1.25 in
E: 3.00 in
F: 9.35 in
G: 6.75 in
Torque: 800 ft-lbs
Weight: 18.35 lbs
Swivel Angle: 360°
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested with Serial Number for Traceability
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Rated: 100% From 0° - 90°
