1-1/2 in Pivot Lifting Plate 10,000 lbs WLL (44419)
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 44419
Description: Pivot Lifting Plate
Rated Load: 10,000 lbs

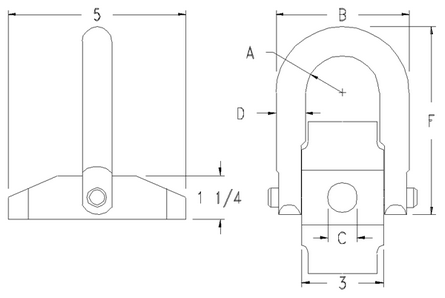

A: 1.40 in
B: 4 13/16 in
C: 1-1/2 in
D: 1 in
F: 6 1/2 in
Torque: 230 ft-lbs
Weight: 6.7 lbs
Pivot Angle: 180°
Safety Factor: 5:1
Material: Alloy Steel
Finish: Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Tested: 200% Proof-Load Tested upon request
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Screws: High Tensile Alloy screws equivalent to Grade 8 must be used
Thread Type: UNC and Coil screws available
Thread Engagement: Should be at least 1.5 times the screw diameter
