Adjustable Spread Telescoping Beams

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Spreader Beams shipped with proof load certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Standard with swivel latch hooks. Top rigging not included - please call for pricing
  • Made in U.S.A.
  • Custom designs available - call for engineering.

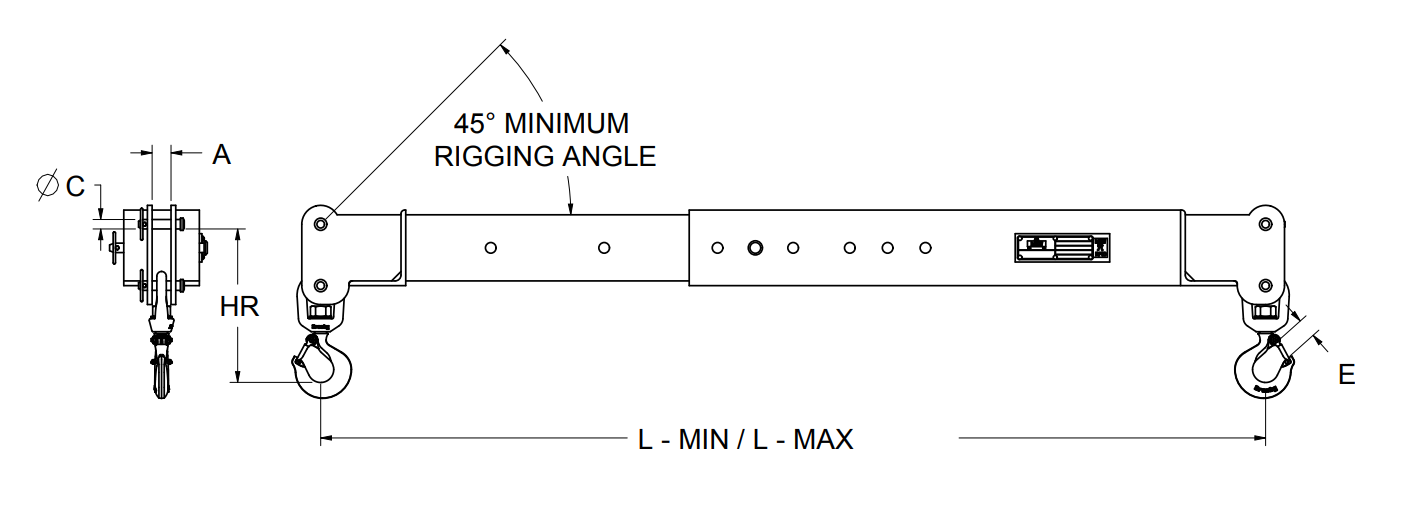

  • Minimum horizontal top rigging angle of 45°.
  • Ideally suited for adding stability to critical lifts.
WLL MPN Outside Spread (L) Headroom (in) Weight (lbs) A (in) C (in) E (in) Price Quantity
4,000 12805 4' - 6' 5.37 80 1.00 0.50 0.89 $2,454.27
4,000 12822 6' - 10' 5.12 120 1.00 0.50 0.89 $2,432.15
4,000 12813 8' - 14' 5.12 155 1.00 0.50 0.89 $2,847.04
4,000 12829 12' - 20' 5.12 235 1.00 0.50 0.89 $3,319.17
4,000 24455 21' - 30' 8.87 585 1.00 0.50 0.89 $4,015.29
10,000 12834 4' - 6' 6.53 130 1.25 0.75 1.08 $2,575.22
10,000 12842 6' - 10' 6.28 190 1.25 0.75 1.08 $2,904.28
10,000 12848 8' - 14' 6.28 250 1.25 0.75 1.08 $3,147.49
10,000 12853 12' - 20' 6.28 365 1.25 0.75 1.08 $4,048.82
10,000 24454 21' - 30' 11.0 802 1.25 0.75 1.08 $4,763.47
20,000 12864 4' - 6' 7.63 185 1.66 1.00 1.31 $3,147.49
20,000 12872 6' - 10' 7.63 265 1.66 1.00 1.31 $3,705.45
20,000 12880 8' - 14' 7.63 345 1.66 1.00 1.31 $4,163.26
20,000 12885 12' - 20' 7.63 510 1.66 1.00 1.31 $5,751.32
20,000 24453 21' - 30' 13.0 1160 1.66 1.00 1.31 $6,487.64
