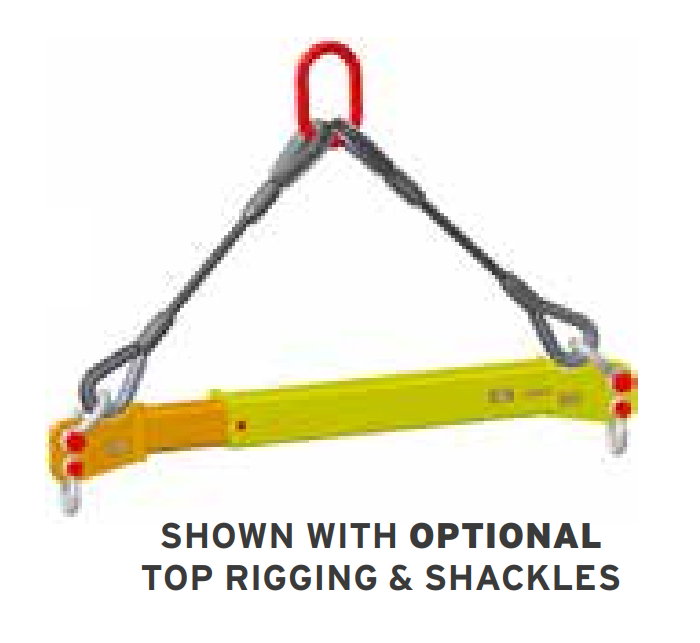

Adjustable Spread Telescoping Beams – Large Capacity Shackle End

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Spreader Beams shipped with proof load certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Minimum horizontal top rigging angle of 45°
  • Ideally suited for adding stability to critical lifts.
  • Beam only. Shackles supplied by others.
WLL MPN Shackle Size Outside Spread (L) Headroom (in) Weight (lbs) Price Quantity
40,000 20127 1-1/2” Top 1-1/2” Bottom min 5’6” - max 7’ 7.6 340 $5,035.98
40,000 20126 1-1/2” Top, 1-1/2” Bottom min 7' - max 10' 7.6 410 $5,808.54
40,000 20125 1-1/2” Top, 1-1/2” Bottom min 10' - max 14' 7.6 560 $6,466.66
40,000 20124 1-1/2” Top, 1-1/2” Bottom min 14' - max 20' 7.6 760 $8,984.65
40,000 24406 1-1/2” Top, 1-1/2” Bottom min 21' - max 30' 7.6 1,275 $9,529.53
60,000 20132 1-3/4” Top, 1-3/4” Bottom min 5’6” - max 7’ 7.1 395 $7,496.74
60,000 20131 1-3/4” Top, 1-3/4” Bottom min 7' - max 10' 7.1 490 $8,026.10
60,000 20130 1-3/4” Top, 1-3/4” Bottom min 10' - max 14' 7.1 660 $8,398.07
60,000 20129 1-3/4” Top, 1-3/4” Bottom min 14' - max 20' 7.1 890 $10,014.72
60,000 24407 1-3/4” Top, 1-3/4” Bottom min 21' - max 30' 7.1 1,775 $10,399.37
80,000 20137 2” Top, 2” Bottom min 5’6” - max 7’ 9.3 575 $10,486.86
80,000 20136 2” Top, 2” Bottom min 7' - max 10' 9.3 700 $11,230.81
80,000 20135 2” Top, 2” Bottom min 10' - max 14' 9.3 950 $11,731.55
80,000 20134 2” Top, 2” Bottom min 14' - max 20' 9.3 1,250 $14,006.32
80,000 24413 2” Top, 2” Bottom min 21' - max 30' 9.3 2,280 $14,303.36
100,000 20142 2” Top, 2” Bottom min 5’6” - max 7’ 9.3 575 $14,670.15
100,000 20141 2” Top, 2” Bottom min 7' - max 10' 9.3 700 $15,708.83
100,000 20140 2” Top, 2” Bottom min 10' - max 14' 9.3 950 $16,424.17
100,000 20139 2” Top, 2” Bottom min 14' - max 20' 9.3 1,250 $19,600.27
100,000 24408 2” Top, 2” Bottom min 21' - max 30' 9.3 2,437 $20,521.76
150,000 24412 2-1/2” Top, 2-1/2” Bottom min 7' - max 10' 13.9 1,310 $16,076.71
150,000 24411 2-1/2” Top, 2-1/2” Bottom min 10' - max 14' 13.9 1,640 $16,646.26
150,000 24410 2-1/2” Top, 2-1/2” Bottom min 14' - max 20' 13.9 2,120 $19,364.53
150,000 24409 2-1/2” Top, 2-1/2” Bottom min 21' - max 30' 13.9 2,995 $21,254.39
