CM USA Alloy BNC Shackles

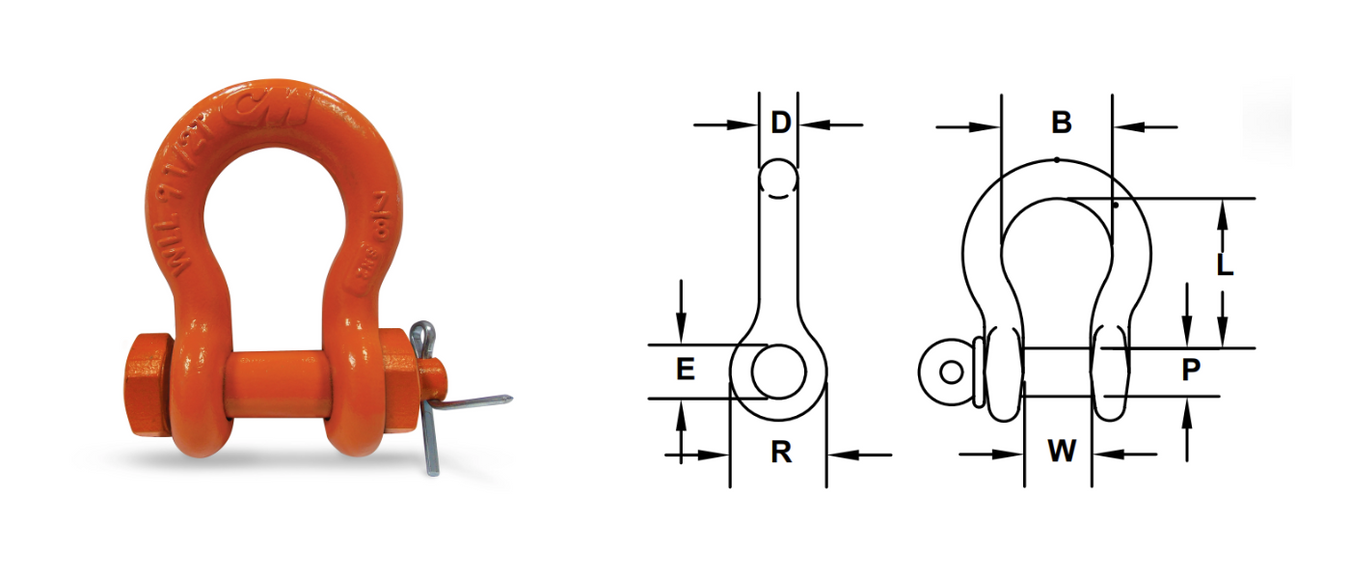

CM Alloy Shackles are designed with a 5:1 design factor and have a strength rating approximately 50% higher than a comparable-sized carbon shackle and about 25% stronger than super strong shackles. Anchor shackles can be side loaded or used for multiple connections.

Size D (in.)	Working Load Limit (Ton)	MPN	P (in.)	E (in.)	W (in.)	R (in.)	L (in.)	B (in.)	Price	Quantity
3/8" 2 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	3/8	2	M848AP	0.44	0.52	0.66	1.00	1.40	1.00	$23.25

7/16" 2.6 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	7/16	2-2/3	M849AP	0.50	0.58	0.72	1.15	1.69	1.19	$29.56

1/2" 3.3 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1/2	3-1/3	M850AP	0.63	0.70	0.84	1.34	1.94	1.38	$38.42

5/8" 5 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	5/8	5	M851AP	0.75	0.83	1.06	1.66	2.41	1.63	$59.46

3/4" 7 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	3/4	7	M852AP	0.88	0.95	1.28	1.94	2.84	1.89	$81.81

7/8" 9.5 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	7/8	9-1/2	M853AP	1.00	1.09	1.44	2.14	3.31	2.06	$100.95

1" 12.5 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1	12-1/2	M854AP	1.13	1.22	1.72	2.44	3.75	2.52	$136.25

1-1/8" 15 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-1/8	15	M855AP	1.25	1.36	1.84	2.66	4.02	2.69	$171.01

1-1/4" 18 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-1/4	18	M856AP	1.38	1.52	2.03	3.15	4.63	2.88	$224.24

1-3/8" 21 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-3/8	21	M866AP	1.50	1.65	2.25	3.25	5.19	3.25	$293.57

1-1/2" 30 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-1/2	30	M857AP	1.63	1.77	2.41	3.50	5.63	3.50	$349.78

1-5/8" 35 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-5/8	35	M885AP	1.75	1.88	2.66	3.91	6.13	4.13	$581.46

1-3/4" 40 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	1-3/4	40	M877AP	2.00	2.13	2.94	4.06	6.97	4.75	$900.86

2" 50 ton Bolt, Nut, & Cotter Alloy Anchor Shackle	2	50	M858AP	2.25	2.38	3.28	4.51	7.44	5.50	$1,133.88

Products

Size D (in.): 3/8

Working Load Limit (Ton): 2

MPN: M848AP

P (in.): 0.44

E (in.): 0.52

W (in.): 0.66

R (in.): 1.00

L (in.): 1.40

B (in.): 1.00

Price:$23.25

Size D (in.): 7/16

Working Load Limit (Ton): 2-2/3

MPN: M849AP

P (in.): 0.50

E (in.): 0.58

W (in.): 0.72

R (in.): 1.15

L (in.): 1.69

B (in.): 1.19

Price:$29.56

Size D (in.): 1/2

Working Load Limit (Ton): 3-1/3

MPN: M850AP

P (in.): 0.63

E (in.): 0.70

W (in.): 0.84

R (in.): 1.34

L (in.): 1.94

B (in.): 1.38

Price:$38.42

Size D (in.): 5/8

Working Load Limit (Ton): 5

MPN: M851AP

P (in.): 0.75

E (in.): 0.83

W (in.): 1.06

R (in.): 1.66

L (in.): 2.41

B (in.): 1.63

Price:$59.46

Size D (in.): 3/4

Working Load Limit (Ton): 7

MPN: M852AP

P (in.): 0.88

E (in.): 0.95

W (in.): 1.28

R (in.): 1.94

L (in.): 2.84

B (in.): 1.89

Price:$81.81

Size D (in.): 7/8

Working Load Limit (Ton): 9-1/2

MPN: M853AP

P (in.): 1.00

E (in.): 1.09

W (in.): 1.44

R (in.): 2.14

L (in.): 3.31

B (in.): 2.06

Price:$100.95

Size D (in.): 1

Working Load Limit (Ton): 12-1/2

MPN: M854AP

P (in.): 1.13

E (in.): 1.22

W (in.): 1.72

R (in.): 2.44

L (in.): 3.75

B (in.): 2.52

Price:$136.25

Size D (in.): 1-1/8

Working Load Limit (Ton): 15

MPN: M855AP

P (in.): 1.25

E (in.): 1.36

W (in.): 1.84

R (in.): 2.66

L (in.): 4.02

B (in.): 2.69

Price:$171.01

Size D (in.): 1-1/4

Working Load Limit (Ton): 18

MPN: M856AP

P (in.): 1.38

E (in.): 1.52

W (in.): 2.03

R (in.): 3.15

L (in.): 4.63

B (in.): 2.88

Price:$224.24

Size D (in.): 1-3/8

Working Load Limit (Ton): 21

MPN: M866AP

P (in.): 1.50

E (in.): 1.65

W (in.): 2.25

R (in.): 3.25

L (in.): 5.19

B (in.): 3.25

Price:$293.57

Size D (in.): 1-1/2

Working Load Limit (Ton): 30

MPN: M857AP

P (in.): 1.63

E (in.): 1.77

W (in.): 2.41

R (in.): 3.50

L (in.): 5.63

B (in.): 3.50

Price:$349.78

Size D (in.): 1-5/8

Working Load Limit (Ton): 35

MPN: M885AP

P (in.): 1.75

E (in.): 1.88

W (in.): 2.66

R (in.): 3.91

L (in.): 6.13

B (in.): 4.13

Price:$581.46

Size D (in.): 1-3/4

Working Load Limit (Ton): 40

MPN: M877AP

P (in.): 2.00

E (in.): 2.13

W (in.): 2.94

R (in.): 4.06

L (in.): 6.97

B (in.): 4.75

Price:$900.86

Size D (in.): 2

Working Load Limit (Ton): 50

MPN: M858AP

P (in.): 2.25

E (in.): 2.38

W (in.): 3.28

R (in.): 4.51

L (in.): 7.44

B (in.): 5.50

Price:$1,133.88
