CM USA Alloy SPA Shackles

CM Alloy Shackles are designed with a 5:1 design factor and have a strength rating approximately 50% higher than a comparable-sized carbon shackle and about 25% stronger than super strong shackles. Anchor shackles can be side loaded or used for multiple connections.

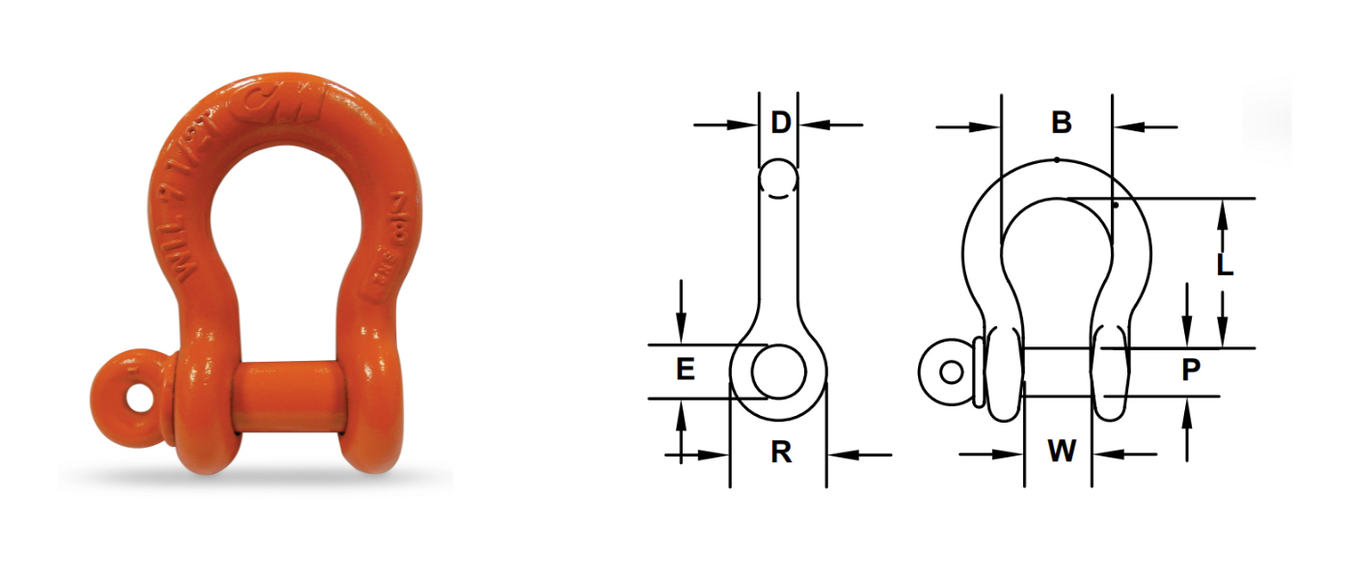

Size D (in.)	Working Load Limit (Ton)	MPN	P (in.)	E (in.)	W (in.)	R (in.)	L (in.)	B (in.)	Price	Quantity
3/8" 2 ton Screw Pin Alloy Anchor Shackle	3/8	2	M648AP	0.44	0.52	0.66	1.00	1.40	1.00	$14.89

7/16" 2.6 ton Screw Pin Alloy Anchor Shackle	7/16	2-2/3	M649AP	0.50	0.58	0.72	1.15	1.69	1.19	$17.17

1/2" 3.3 ton Screw Pin Alloy Anchor Shackle	1/2	3-1/3	M650AP	0.63	0.70	0.84	1.34	1.94	1.38	$21.42

5/8" 5 ton Screw Pin Alloy Anchor Shackle	5/8	5	M651AP	0.75	0.83	1.06	1.66	2.41	1.63	$31.60

3/4" 7 ton Screw Pin Alloy Anchor Shackle	3/4	7	M652AP	0.88	0.95	1.28	1.94	2.84	1.89	$44.73

7/8" 9.5 ton Screw Pin Alloy Anchor Shackle	7/8	9-1/2	M653AP	1.00	1.09	1.44	2.14	3.31	2.06	$59.02

1" 12.5 ton Screw Pin Alloy Anchor Shackle	1	12-1/2	M654AP	1.13	1.22	1.72	2.44	3.75	2.52	$78.33

1-1/8" 15 ton Screw Pin Alloy Anchor Shackle	1-1/8	15	M655AP	1.25	1.36	1.84	2.66	4.02	2.69	$112.00

1-1/4" 18 ton Screw Pin Alloy Anchor Shackle	1-1/4	18	M656AP	1.38	1.52	2.03	3.15	4.63	2.88	$162.25

1-3/8" 21 ton Screw Pin Alloy Anchor Shackle	1-3/8	21	M666AP	1.50	1.65	2.25	3.25	5.19	3.25	$217.89

1-1/2" 25 ton Screw Pin Alloy Anchor Shackle	1-1/2	25	M657AP	1.63	1.77	2.41	3.50	5.63	3.50	$293.78

1-5/8" 29 ton Screw Pin Alloy Anchor Shackle	1-5/8	29	M685AP	1.75	1.88	2.66	3.91	6.13	4.13	$419.15

1-3/4" 34 ton Screw Pin Alloy Anchor Shackle	1-3/4	34	M677AP	2.00	2.13	2.94	4.06	6.97	4.75	$489.95

2" 43 ton Screw Pin Alloy Anchor Shackle	2	43	M658AP	2.25	2.38	3.28	4.51	7.44	5.50	$694.03

Products

Size D (in.): 3/8

Working Load Limit (Ton): 2

MPN: M648AP

P (in.): 0.44

E (in.): 0.52

W (in.): 0.66

R (in.): 1.00

L (in.): 1.40

B (in.): 1.00

Price:$14.89

Size D (in.): 7/16

Working Load Limit (Ton): 2-2/3

MPN: M649AP

P (in.): 0.50

E (in.): 0.58

W (in.): 0.72

R (in.): 1.15

L (in.): 1.69

B (in.): 1.19

Price:$17.17

Size D (in.): 1/2

Working Load Limit (Ton): 3-1/3

MPN: M650AP

P (in.): 0.63

E (in.): 0.70

W (in.): 0.84

R (in.): 1.34

L (in.): 1.94

B (in.): 1.38

Price:$21.42

Size D (in.): 5/8

Working Load Limit (Ton): 5

MPN: M651AP

P (in.): 0.75

E (in.): 0.83

W (in.): 1.06

R (in.): 1.66

L (in.): 2.41

B (in.): 1.63

Price:$31.60

Size D (in.): 3/4

Working Load Limit (Ton): 7

MPN: M652AP

P (in.): 0.88

E (in.): 0.95

W (in.): 1.28

R (in.): 1.94

L (in.): 2.84

B (in.): 1.89

Price:$44.73

Size D (in.): 7/8

Working Load Limit (Ton): 9-1/2

MPN: M653AP

P (in.): 1.00

E (in.): 1.09

W (in.): 1.44

R (in.): 2.14

L (in.): 3.31

B (in.): 2.06

Price:$59.02

Size D (in.): 1

Working Load Limit (Ton): 12-1/2

MPN: M654AP

P (in.): 1.13

E (in.): 1.22

W (in.): 1.72

R (in.): 2.44

L (in.): 3.75

B (in.): 2.52

Price:$78.33

Size D (in.): 1-1/8

Working Load Limit (Ton): 15

MPN: M655AP

P (in.): 1.25

E (in.): 1.36

W (in.): 1.84

R (in.): 2.66

L (in.): 4.02

B (in.): 2.69

Price:$112.00

Size D (in.): 1-1/4

Working Load Limit (Ton): 18

MPN: M656AP

P (in.): 1.38

E (in.): 1.52

W (in.): 2.03

R (in.): 3.15

L (in.): 4.63

B (in.): 2.88

Price:$162.25

Size D (in.): 1-3/8

Working Load Limit (Ton): 21

MPN: M666AP

P (in.): 1.50

E (in.): 1.65

W (in.): 2.25

R (in.): 3.25

L (in.): 5.19

B (in.): 3.25

Price:$217.89

Size D (in.): 1-1/2

Working Load Limit (Ton): 25

MPN: M657AP

P (in.): 1.63

E (in.): 1.77

W (in.): 2.41

R (in.): 3.50

L (in.): 5.63

B (in.): 3.50

Price:$293.78

Size D (in.): 1-5/8

Working Load Limit (Ton): 29

MPN: M685AP

P (in.): 1.75

E (in.): 1.88

W (in.): 2.66

R (in.): 3.91

L (in.): 6.13

B (in.): 4.13

Price:$419.15

Size D (in.): 1-3/4

Working Load Limit (Ton): 34

MPN: M677AP

P (in.): 2.00

E (in.): 2.13

W (in.): 2.94

R (in.): 4.06

L (in.): 6.97

B (in.): 4.75

Price:$489.95

Size D (in.): 2

Working Load Limit (Ton): 43

MPN: M658AP

P (in.): 2.25

E (in.): 2.38

W (in.): 3.28

R (in.): 4.51

L (in.): 7.44

B (in.): 5.50

Price:$694.03
