Alloy Steel Sorting Hooks Eye Style A

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Corrosion resistant finish.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Made in U.S.A.
  • ±4% on dimensions.
  • All eyes welded unless otherwise specified.
  • Maximum use temperature is 400° F.
  • Handle not designed for lifting.

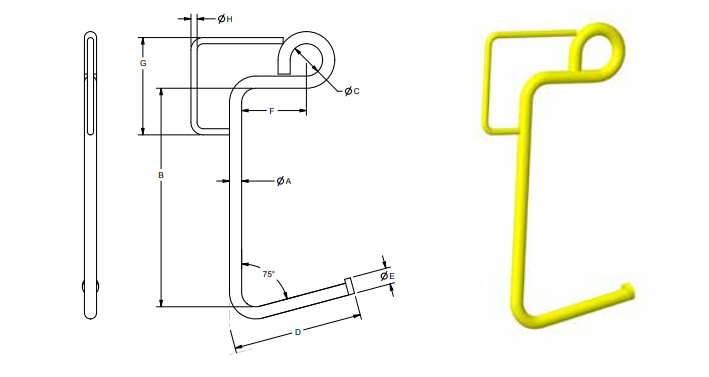

Material øA in Inches MPN B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) Weight (lbs) WLL Price Quantity
1/2 13457 3.25 1.50 4.00 0.75 1.88 4.00 1.0 100 lbs $481.88
3/4 13425 13.50 2.00 8.00 1.00 4.00 6.00 4.5 300 lbs $550.72
7/8 13424 13.50 2.00 8.00 1.00 3.88 6.00 6.0 450 lbs $636.78

Products

Material øA in Inches: 1/2
MPN: 13457
B (in.): 3.25
C (in.): 1.50
D (in.): 4.00
E (in.): 0.75
F (in.): 1.88
G (in.): 4.00
Weight (lbs): 1.0
WLL: 100 lbs
Price:$481.88
Material øA in Inches: 3/4
MPN: 13425
B (in.): 13.50
C (in.): 2.00
D (in.): 8.00
E (in.): 1.00
F (in.): 4.00
G (in.): 6.00
Weight (lbs): 4.5
WLL: 300 lbs
Price:$550.72
Material øA in Inches: 7/8
MPN: 13424
B (in.): 13.50
C (in.): 2.00
D (in.): 8.00
E (in.): 1.00
F (in.): 3.88
G (in.): 6.00
Weight (lbs): 6.0
WLL: 450 lbs
Price:$636.78
