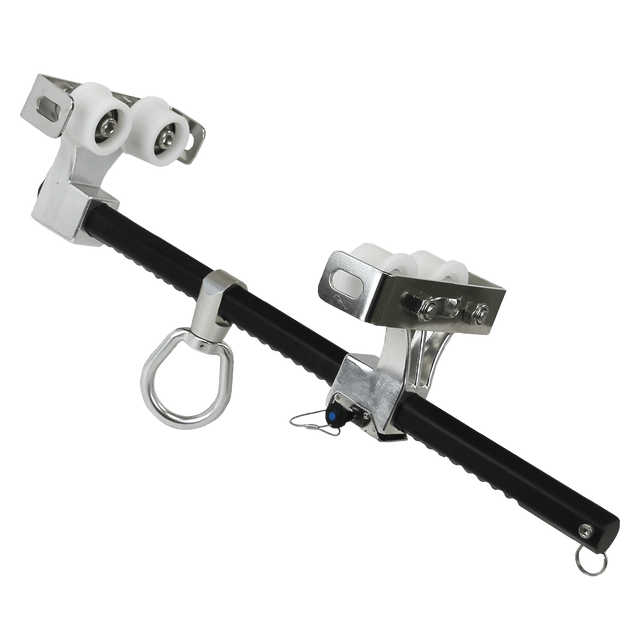

18" Aluminum Beam Trolley Anchor (7712)

Features

• Features single trolley adjustment with aluminum crossbar, swiveling D-ring and wheel plates
• Includes high-density Nylacast wheels suitable for some food-rated installations.
• Fits beam flanges from 4" to 18" wide and up to 1-3/4" thick
• For temporary or permanent installation on overhead horizontal I-beams
• Complies with ANSI Z359.18-2017

Material Specifications

• D-ring: Aluminum alloy; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Wheel Plates: Aluminum alloy

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
