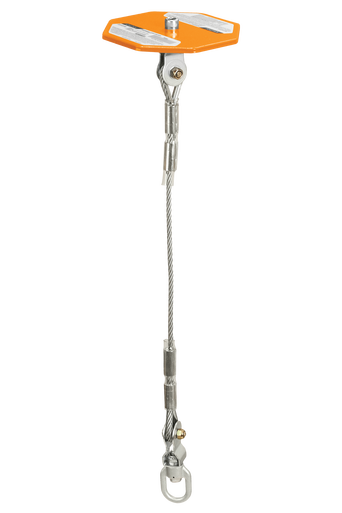

8 1/2' Suspended Cable Anchor (PN 749485)

Features

• Installs through overhead openings in steel deck, concrete or grating
• 6" x 6" x 1/4" high-visibility steel load-bearing plate.
• 1/4" galvanized steel cable with swivel connection eye
• Assembled with steel thimbles and swaged aluminum ferrules
• Complies with ANSI Z359.18-2017


Material Specifications

• Cable: 1/4" galvanized steel; 5,000 lb min. static strength
  Plate: Powder coated carbon steel

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
