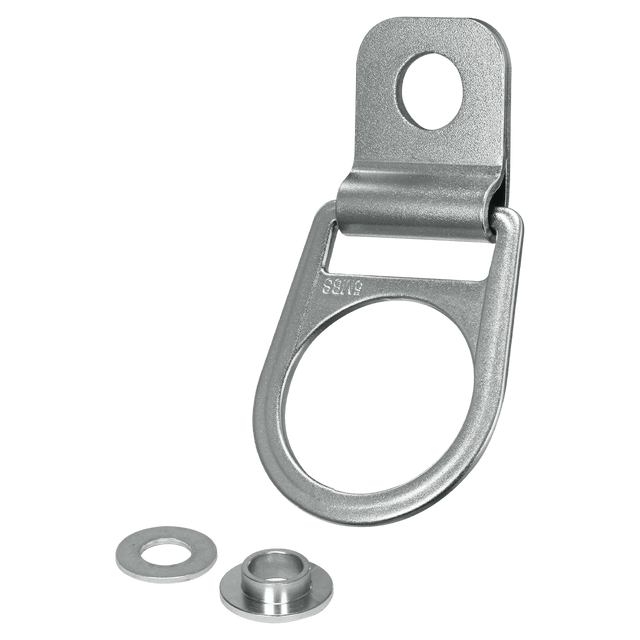

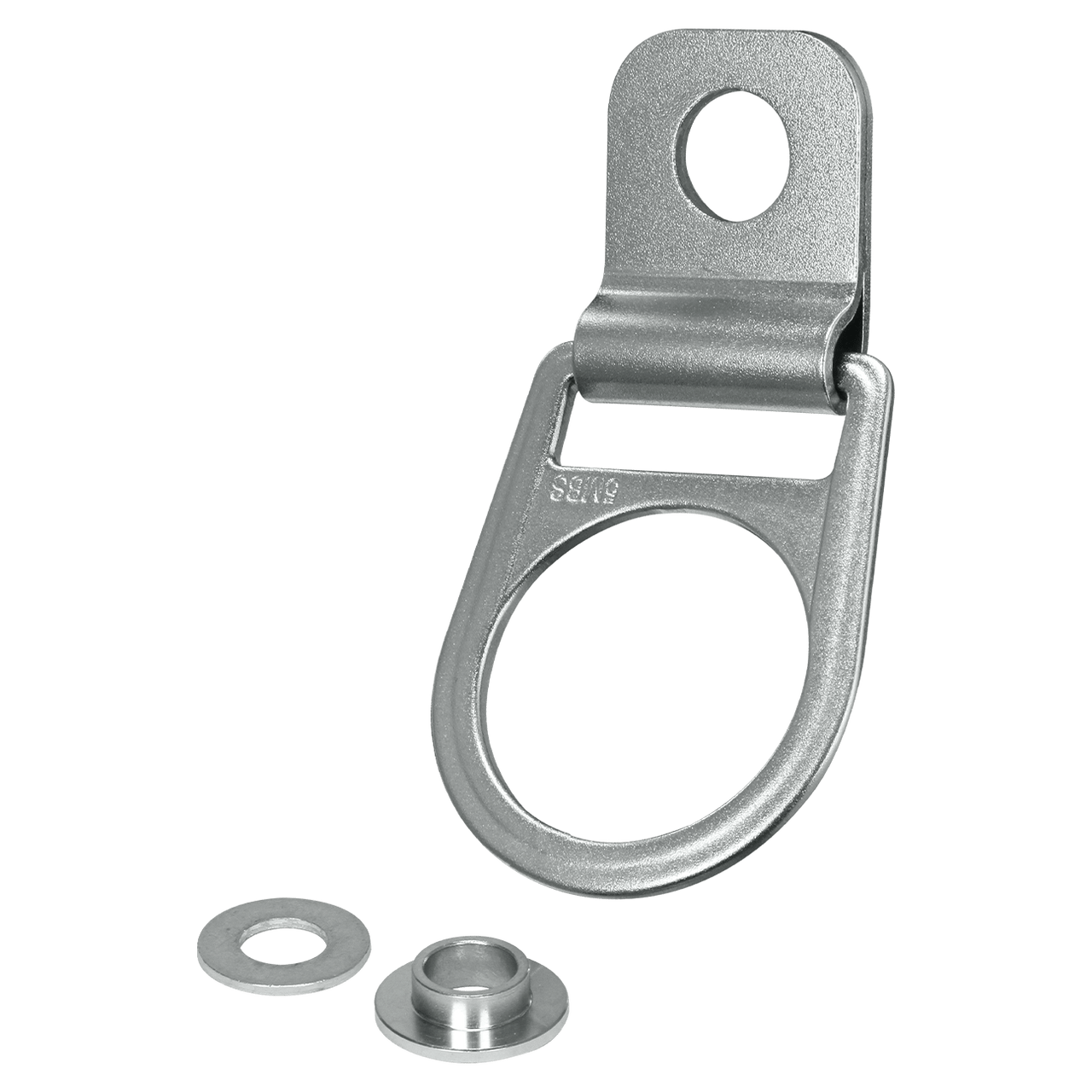

Rotating D-ring Anchor with Bushing (7451AC)

Features

• Features stainless steel anchoring plate with alloy steel connecting D-ring
• Precision-cut bushing provides 360° D-ring rotation.
• Ideally suited for temporary or permanent installation in steel and cured concrete
• Anchor requires user-supplied fasteners for installation
• Features reusable anchoring plate and D-ring
• Complies with ANSI Z359.18-2017


Material Specifications

• Anchoring Plate: Plated stainless steel

• D-ring: Plated alloy steel; 5,000 lb min. static strength

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With

OSHA 1926.502 and 1910.66
