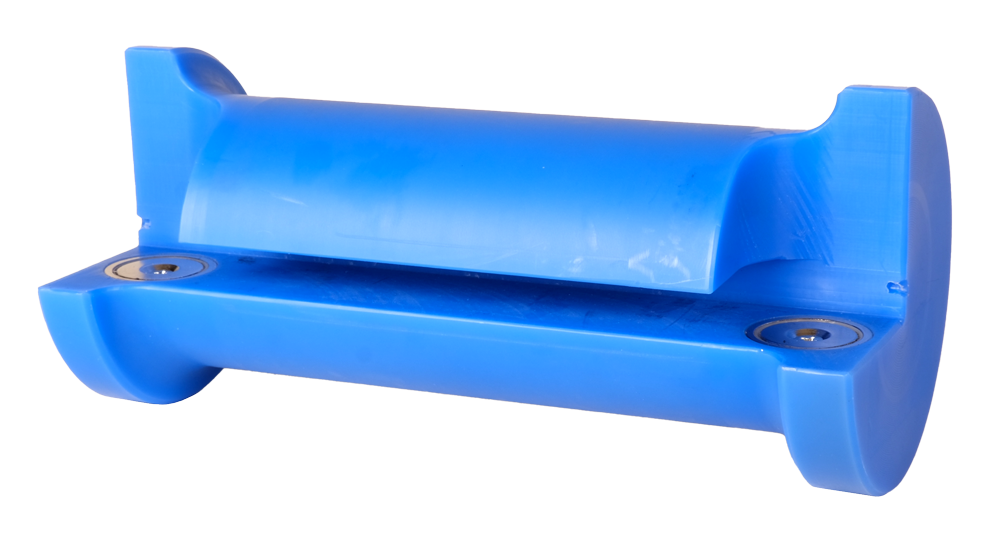

Beam & Plate Protectors

Slings & Load Type:
Ideal for use with synthetic slings.  They can be used with wire rope and chain slings. Designed specifically for use with horizontal edges such as I-beams and steel plates.

Specific Use:

To protect slings from damage caused by direct contact with edges, corners or protrusions of loads being lifted.

Beam & Plate Units MUST fit snug, and all three interior surfaces of the plate and I-beam protector MUST be in full contact with the load. If the grooved unit does not fit snug, the edge of the I-beam or plate may create a point load. Point loading can exceed the materials capacity and cause the product to fail.

  • (4) Beam & Plate Units are needed at each lift point of an I-Beam.
  • (2) units on the bottom flange.
  • (2) units on the top flange.
  • (8) units are needed to pick I-Beams from (2) pick Points.

Steel Plate: Groove size MUST match the plate thickness. Custom sizes are available for your specific needs. Beam & Plate units must be snug.  Improperly fit units will lead to point loading and potentially product failure.

  • (4) total units are typically needed when lifting steel plates.
  • (1) Beam & Plate unit is needed per contact point.

Medium Duty

MPN Overall Length (inches) Max Sling Width (inches) 1" Sling Capacity (lbs) Max Capacity Based on Max Sling Width (lbs) Weight (lbs) Price Quantity
LG-9-2-360G-.25 9 7 6,250 43,750 2.8 $250.55
LG-9-2-360G-0.5 9 7 6,250 43,750 2.8 $252.20
LG-9-2-360G-.625 9 7 6,250 43,750 2.8 $250.55
LG-9-2-360G-.75 9 7 6,250 43,750 2.8 $250.55

Products

Heavy Duty

MPN Overall Length (inches) Max Sling Width (inches) Weight (lbs) Price Quantity
LG-9-3-360G-0.375 HD 9 7 - $423.80
LG-9-3-360G-1.25 9 7 5.25 $423.80
LG-9-3-360G-2 9 7 5 $423.80
LG-12-3-360G-1.5 12 10 9 $511.25
LG-12-3-360G-2.5 12 10 9 $511.25
LG-12-3-360G-1.75 12 10 9 $511.25

Products

Overall Length: Equates to the total end to end length of a sling protector.
Safe Operating Zone: The useable area between the raised shoulders of the sling protector (see image below).
Width at Load: Sling Width Under Load.

o   Sling Total Contact Width: Round synthetic slings compress and flatten as the load is picked. Select your sling protector based on the Sling Width Under Load.

o   Caution – If your sling width under load is wider than the safe operating zone, the sling will point load. (see image below)

1” Sling Capacity: The maximum capacity per lineal inch of sling contact, ASSUMING the face of the sling protector (the portion in contact with the load) is in 100% contact on both the vertical and horizontal load surfaces.

Maximum Capacity: The total capacity of the individual sling protector, ASSUMING, the sling contact width does not exceed the safe operating area, AND the face of the sling protector is in 100% contact on both the vertical and horizontal surfaces.
