Skookum | SKU:
SKM-62-S-SWSH
Ropemaster 3.75T 6" Full Sided Block with SWIVEL SHACKLE
Regular price
$1,485.51
Unit price
/
Unavailable
Ropemaster 3.75T full sided block with swivel hook. Model 62-S with 6 in. sheave for 1/2 in wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided block maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 6 |
| Wire Rope Min | 3/8 |
| Wire Rope Max | 1/2 |
| WLL (TONS) | 3.75 |
| Weight (LBS) | 26 |
| Replacement Sheave Part # | SKM-221803 |
| Draw Pin Part # | SKM-551413 |

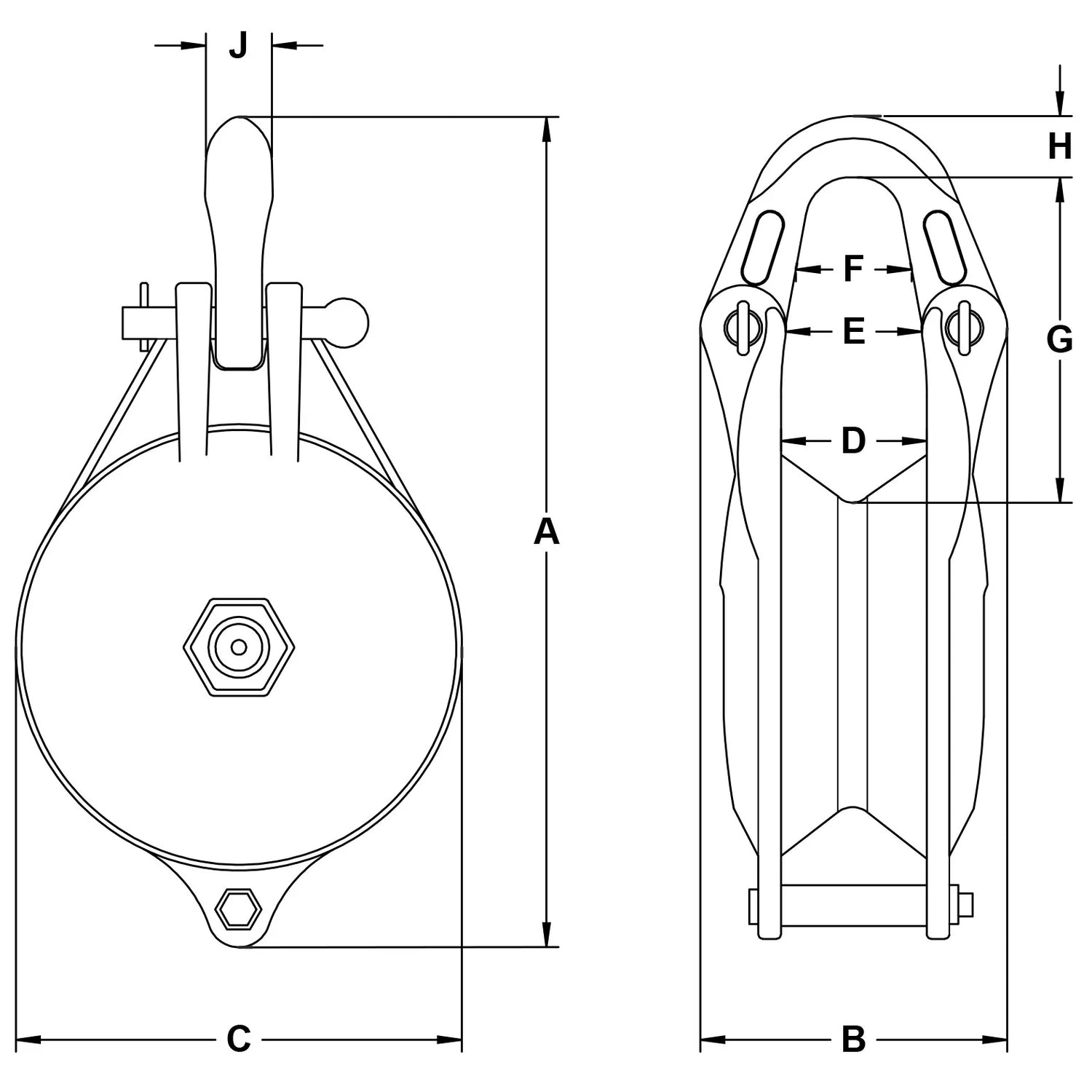

| Height (A) | 13.75 |
| Thickness (B) | 5.75 |
| Width (C) | 6.75 |
| Throat Bottom (D) | 2.75 |
| Inside Throat Width (E) | 2.75 |
| Inside Yoke Width (F) | 2.5 |
| Throat Height (G) | 5 |
| Yoke Bar Height (H) | 1.25 |
| Yoke Bar Width (J) | 1.38 |
