Skookum | SKU:
SKM-82-S-SWHK
Ropemaster 3.75T 8" Full Sided Block with SWIVEL HOOK
Regular price
$1,614.10
Unit price
/
Unavailable
Ropemaster 3.75T full sided block with swivel hook. Model 82-S with 8 in. sheave for 1/2 in wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided block maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 8 |
| Wire Rope Min | 3/8 |
| Wire Rope Max | 1/2 |
| WLL (TONS) | 3.75 |
| Weight (LBS) | 33 |
| Replacement Sheave Part # | SKM-222603 |
| Draw Pin Part # | SKM-551413 |

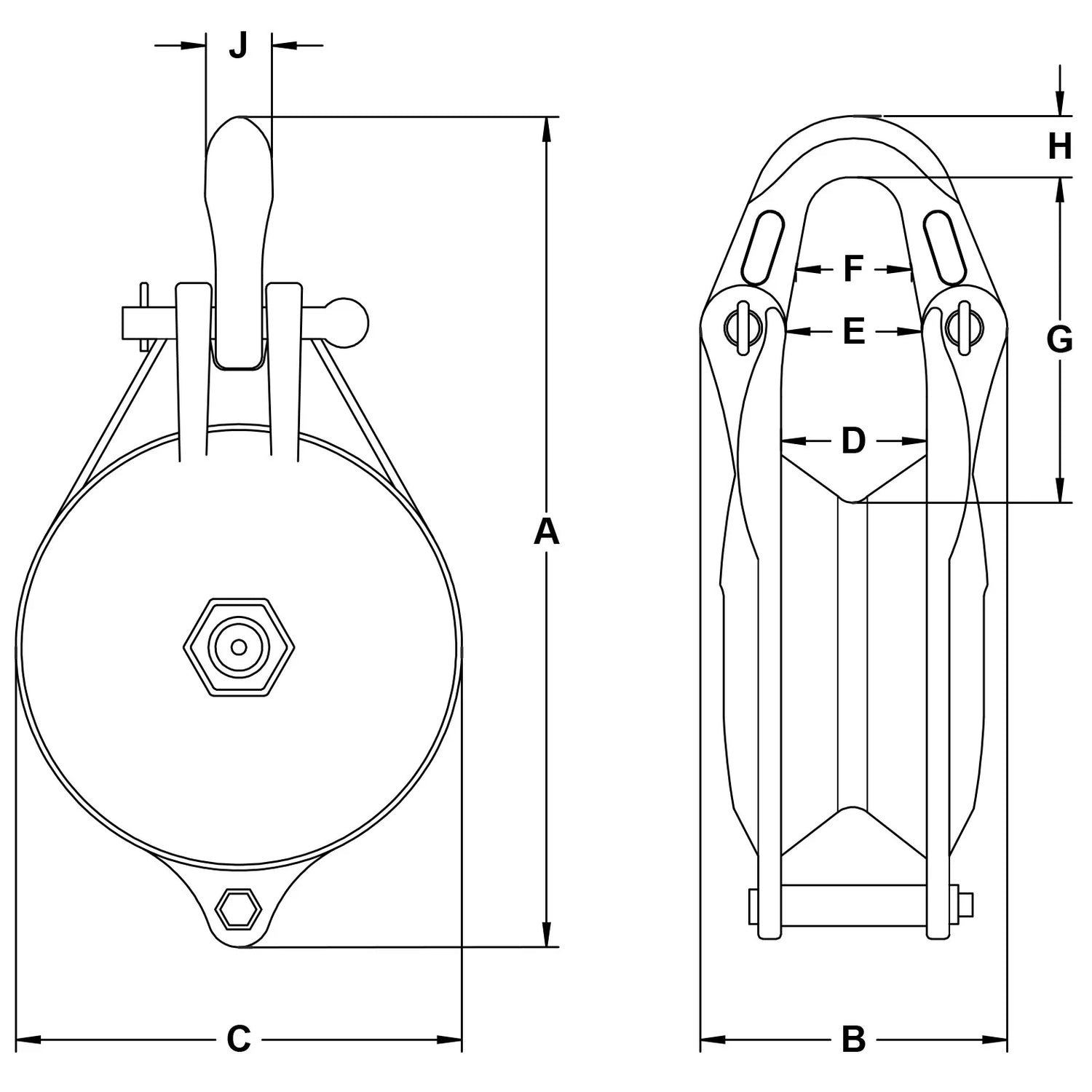

| Height (A) | 16.5 |
| Thickness (B) | 5.5 |
| Width (C) | 8.5 |
| Throat Bottom (D) | 2.75 |
| Inside Throat Width (E) | 2.75 |
| Inside Yoke Width (F) | 2.5 |
| Throat Height (G) | 5.25 |
| Yoke Bar Height (H) | 1.25 |
| Yoke Bar Width (J) | 1.38 |
