Skookum | SKU:
SKM-1000703

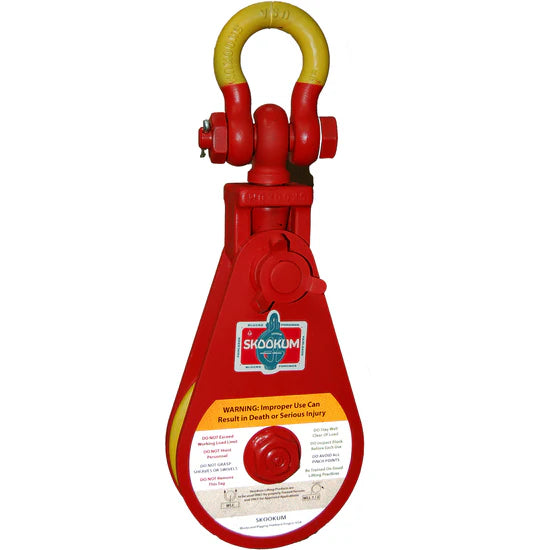

Skookum 15 ton 8" Alloy Snatch Block with SWIVEL SHACKLE (8" x 15T) (1000703)
Regular price
$1,854.70
Unit price
/
Unavailable
Model 8" 15T, swivel shackle. Bronze bushed. Up to 7/8 in. wire rope.
- Skookum Gold Standard forgings heat treated for toughness.
- Interchangeable hook & shackle connector options.
- Available with bronze bushings, composite bushings, or roller bearings.
- Captured attaching pin for convenient reeving while block is suspended.
- ASME B30.26-1 compliant
| Sheave Diameter | 8 |
| Wire Rope Min | 3/4 |
| Wire Rope Max | 7/8 |
| WLL (TONS) | 15 |
| Weight (LBS) | 49.85 |
| Replacement Sheave Part # | SKM-1000246 |
| Height (A) | 23.13 |
| Thickness (D) | 4.43 |
| Width (E) | 8.25 |
| Inside Throat Width (F) | 1.97 |
| Throat Height (G) | 1.13 |
| Shackle Height (K) | 9.38 |
