Skookum | SKU:
SKM-2616-YOKE
Skookum 2000 Series 50 Ton 16" Sheave Full Sided Block with REGULAR YOKE
Regular price
$15,403.15
Unit price
/
Unavailable
Skookum 2000 Series 50T full sided block with yoke. Model 2616 with 16 in. sheave for 1-5/8 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided design maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 16 |
| Wire Rope Min | 1.5 |
| Wire Rope Max | 1.625 |
| WLL (TONS) | 50 |
| Weight (LBS) | 600 |
| Replacement Sheave Part # | SKM-575403 |
| Draw Pin Part # | SKM-102960 |

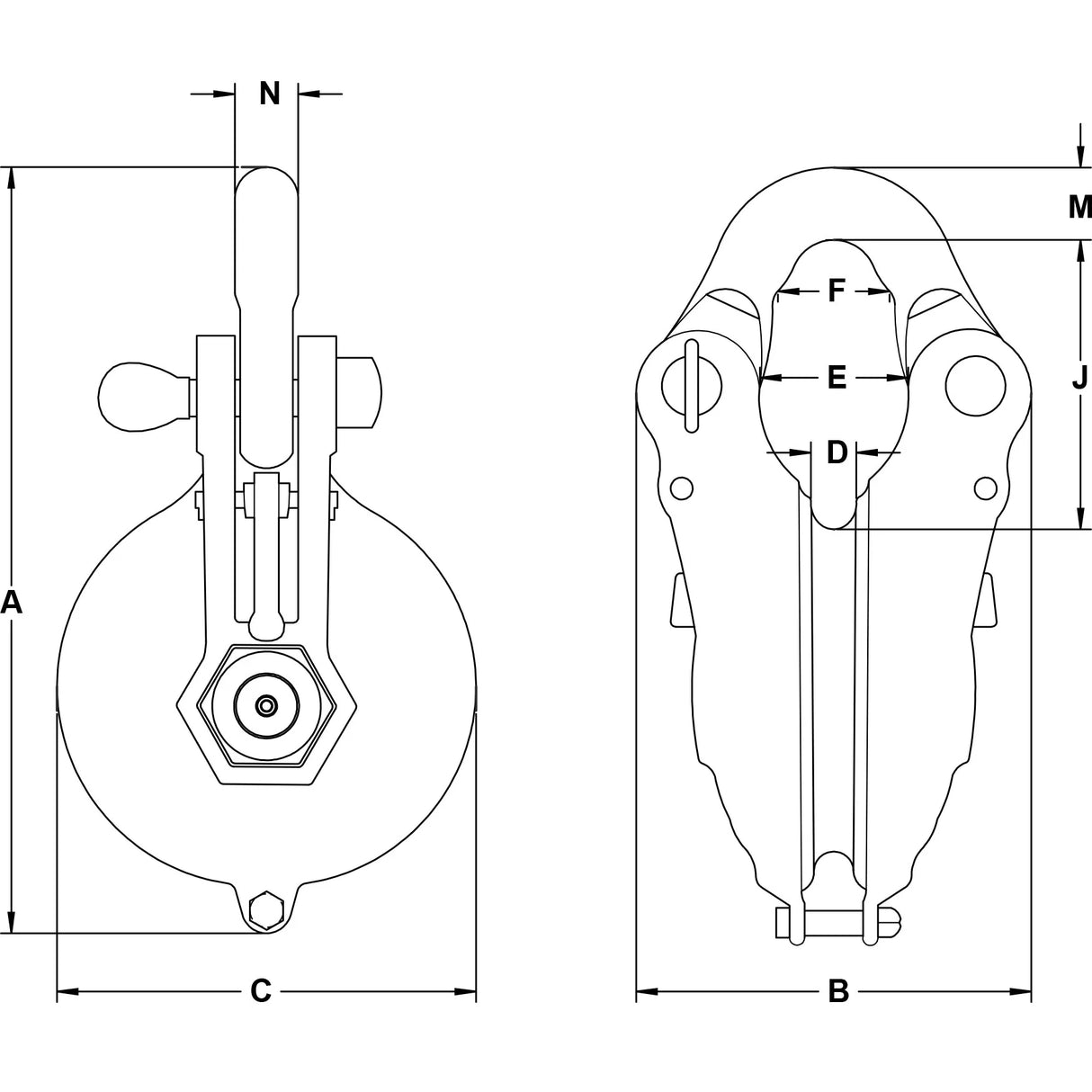

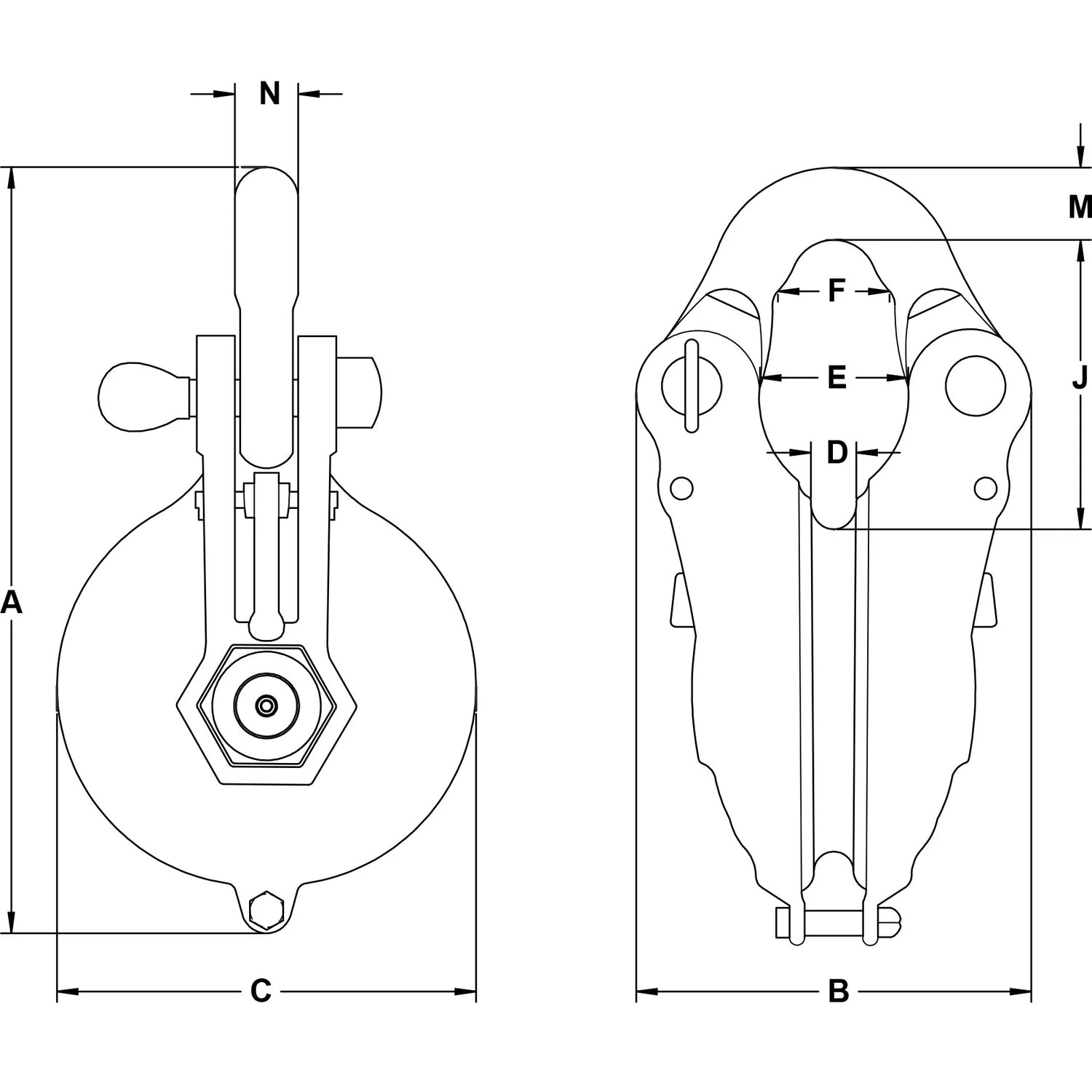

| Height (A) | 37 |
| Thickness (B) | 12.5 |
| Width (C) | 17.5 |
| Throat Bottom (D) | 3 |
| Inside Throat Width (E) | 4 |
| Inside Yoke Width (F) | 7.75 |
| Yoke Width Below Lineguard | 4.5 |
| Yoke Width Above Lineguard | 5 |
| Throat Height (J) | 2.75 |
| Throat Height Below Lineguard | 6.8 |
| Throat Height Above Lineguard | 6 |
| Yoke Bar Height (M) | 2.75 |
| Yoke Bar Width (N) | 2.92 |
