Skookum | SKU:
SKM-2210A-SWSH
Skookum 2200 Series 21.5 Ton 10" Half Sided Block with SWIVEL SHACKLE
Regular price
$4,488.45
Unit price
/
Unavailable
Skookum 2200 Series 21.5T half sided block with swivel shackle. Model 2210A with 10 in. sheave for 1 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side for light weight or full side design to maximize sheave protection.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 10 |
| Wire Rope Min | 7/8 |
| Wire Rope Max | 1 |
| WLL (TONS) | 21.5 |
| Weight (LBS) | 83 |
| Replacement Sheave Part # | SKM-536503 |
| Draw Pin Part # | SKM-555501 |

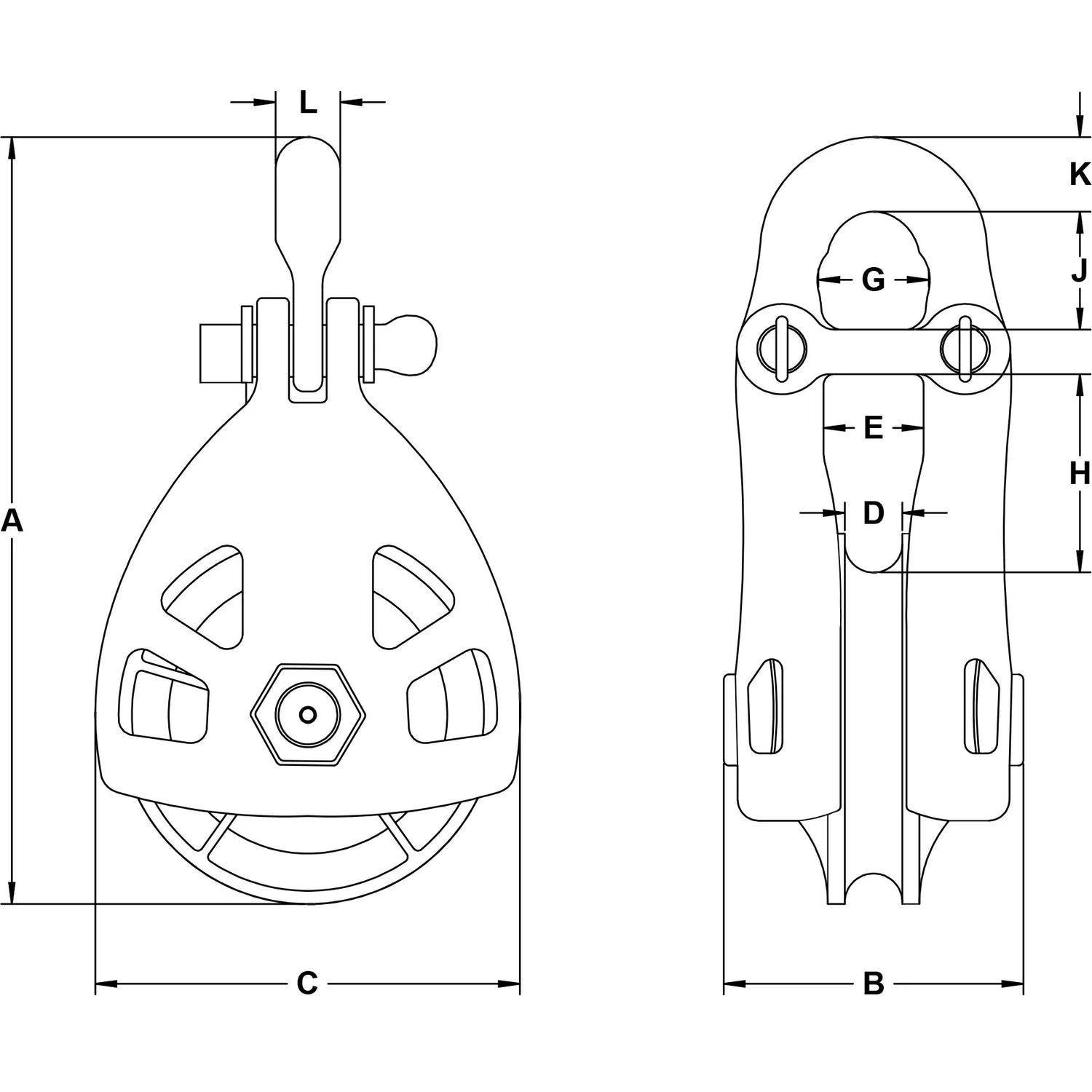

| Height (A) | 18 |
| Thickness (B) | 7 |
| Width (C) | 11 |
| Throat Bottom (D) | 2 |
| Inside Throat Width (E) | 2.75 |
| Yoke Width Below Lineguard | 2.75 |
| Yoke Width Above Lineguard(G) | 2.75 |
| Throat Height Below Lineguard (H) | 4.25 |
| Throat Height Above Lineguard (J) | 2.25 |
| Yoke Bar Height (K) | 1.75 |
| Yoke Bar Width (L) | 2 |
