Skookum | SKU:
SKM-308-YOKE
Skookum 300 Series 13 Ton 8" Full Sided Block with REGULAR YOKE
Regular price
$3,122.66
Unit price
/
Unavailable
Skookum 300 Series 13T full sided block with yoke. Model 308 with 8 in. sheave for 1 in. wire rope. Bronze bushed.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided design maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant

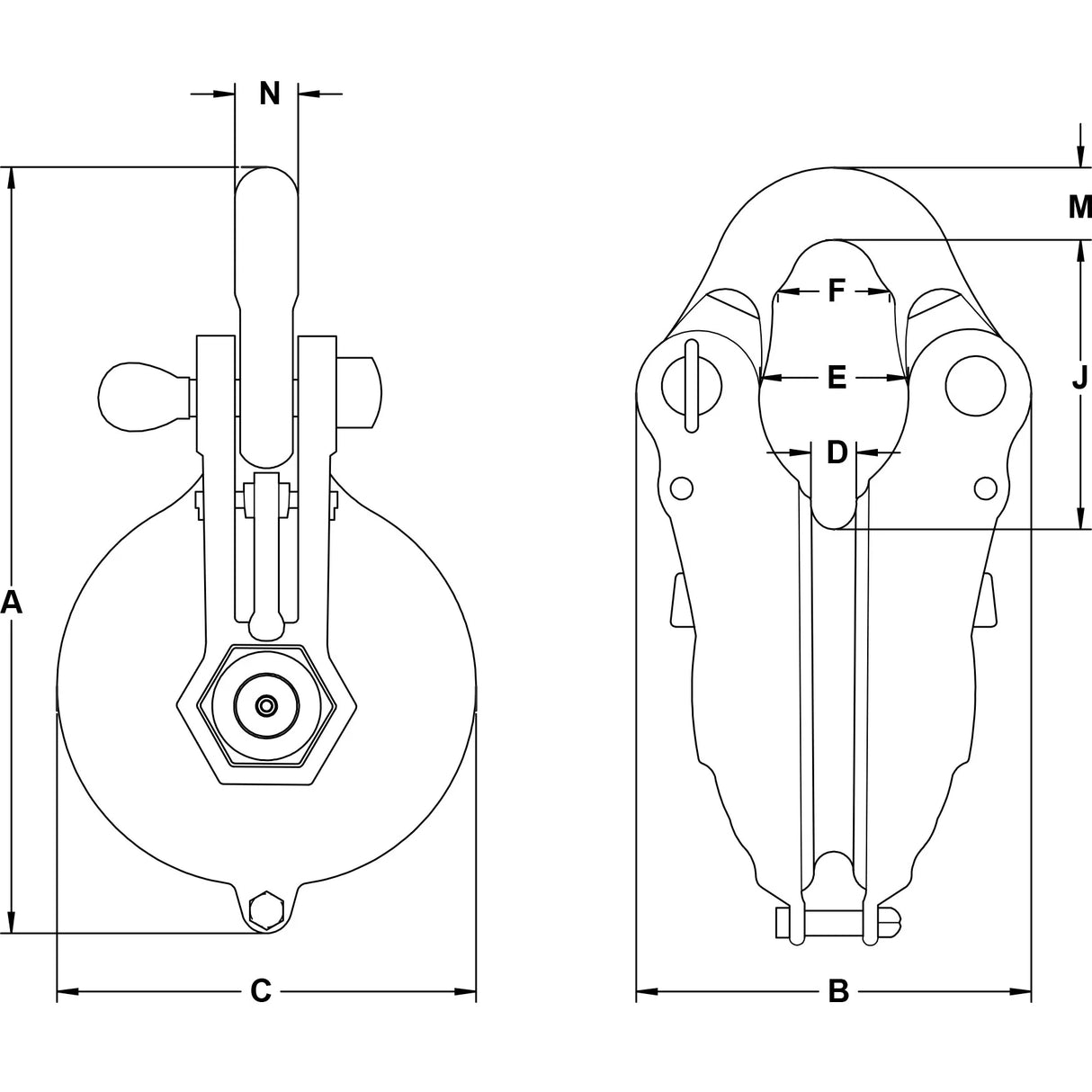

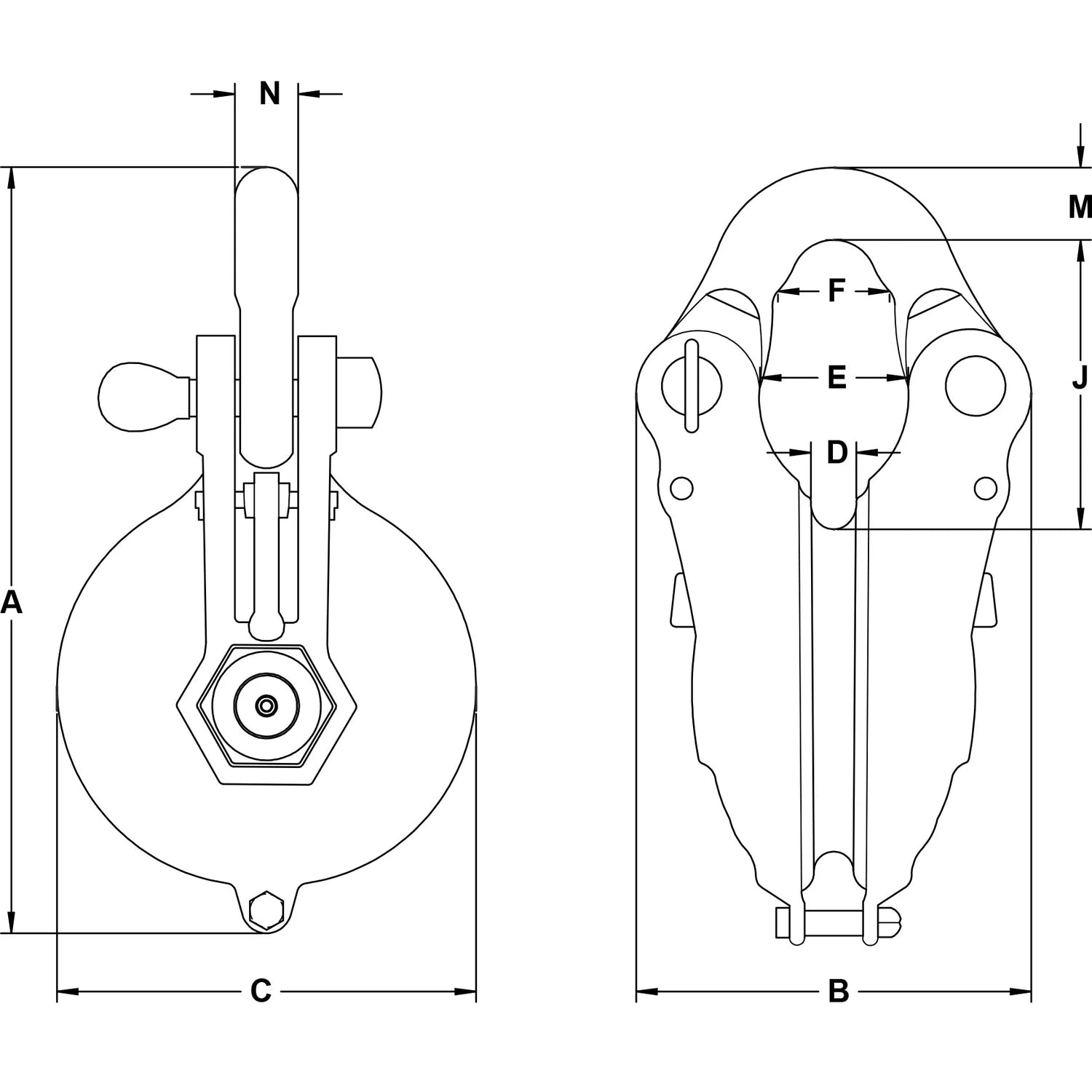

| Sheave Diameter | 8 |
| Wire Rope Min | 7/8 |
| Wire Rope Max | 1 |
| WLL (TONS) | 13 |
| Weight (LBS) | 55 |
| Replacement Sheave Part # | SKM-791101 |
| Draw Pin Part # | SKM-551431 |
| Height (A) | 18.5 |
| Thickness (B) | 7 |
| Width (C) | 8.13 |
| Throat Bottom (D) | 1.75 |
| Inside Throat Width (E) | 2.75 |
| Inside Yoke Width (F) | 2.5 |
| Throat Height (J) | 7.5 |
| Yoke Bar Height (M) | 1.85 |
| Yoke Bar Width (N) | 1.38 |
