Skookum | SKU:
SKM-1000136

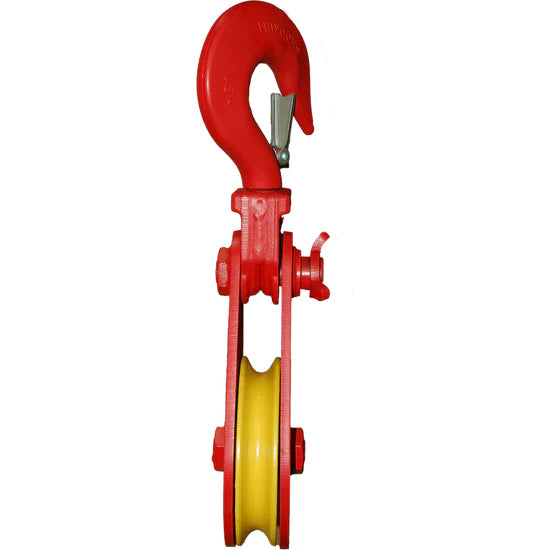

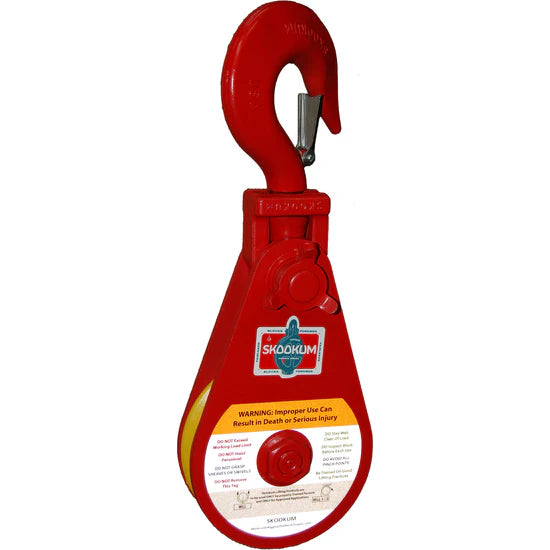

Skookum 4 ton 4" Alloy Snatch Block with SWIVEL HOOK (4" x 4T) (1000136)
Regular price
$760.98
Unit price
/
Unavailable
Model 4" 4T, swivel hook. Bronze bushed. Up to 3/8 in. wire rope.
- Skookum Gold Standard forgings heat treated for toughness.
- Interchangeable hook & shackle connector options.
- Available with bronze bushings, composite bushings, or roller bearings.
- Captured attaching pin for convenient reeving while block is suspended.
- ASME B30.26-1 compliant
| Sheave Diameter | 4 |
| Wire Rope Min | 1/4 |
| Wire Rope Max | 3/8 |
| WLL (TONS) | 4 |
| Weight (LBS) | 8.3 |
| Replacement Sheave Part # | SKM-571901 |

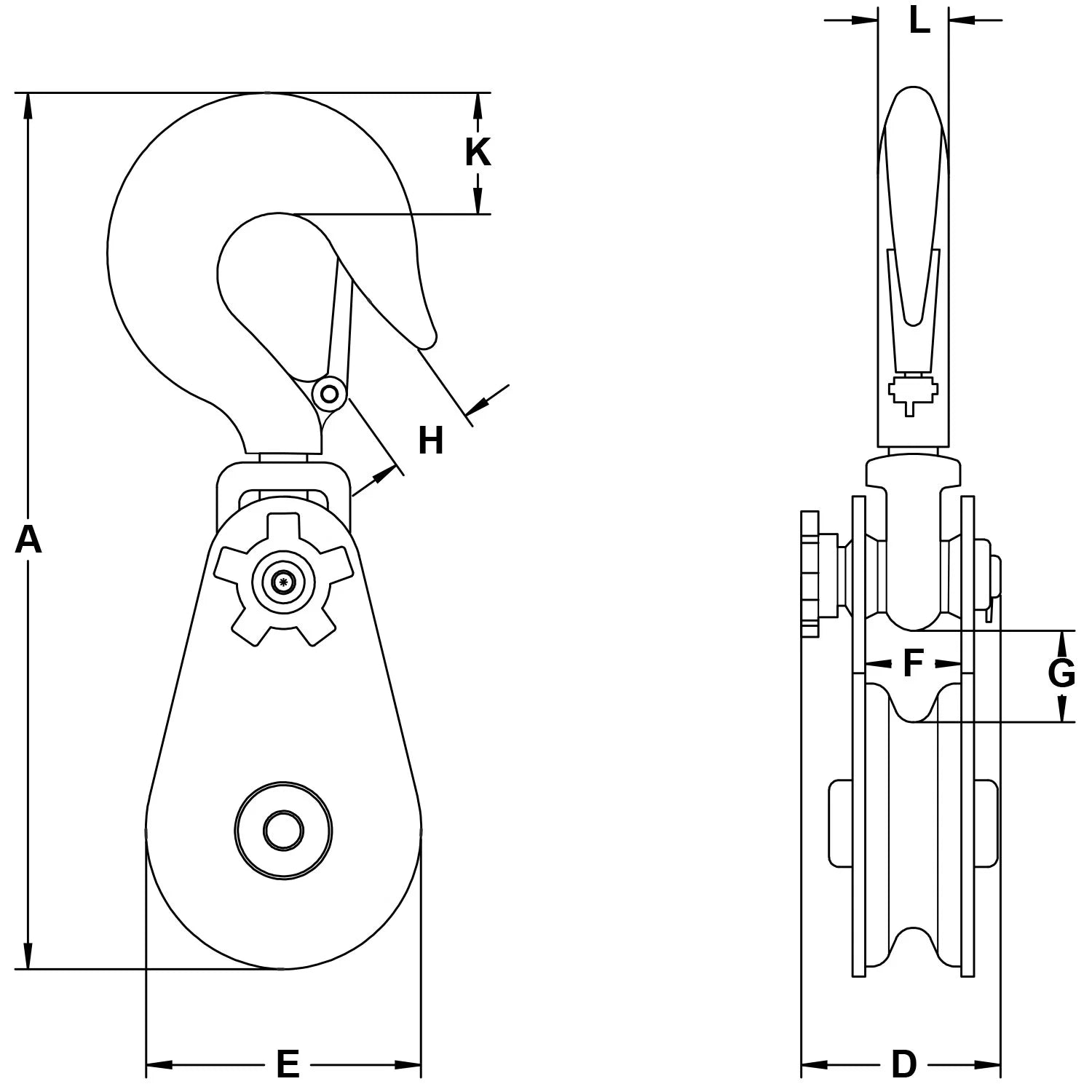

| Height (A) | 13.6 |
| Thickness (D) | 3.3 |
| Width (E) | 4.06 |
| Inside Throat Width (F) | 1.5 |
| Throat Height (G) | 1 |
| Hook Opening (H) | 1.35 |
| Hook Height (J) | 5.2 |
| Hook Top Height (K) | 1.5 |
| Hook Top Thickness (L) | 1.13 |
Couldn't load pickup availability
Skookum 4 ton 4" Alloy Snatch Block with SWIVEL HOOK (4" ...
Regular price
$760.98
Unit price
/
Unavailable
Specifications
Specifications
-
Working Load Limit
-
Wire Rope Diameter
-
Material
-
MPN
-
Category
-
Domestic
-
Sheave Diameter
