Skookum | SKU:
SKM-4"4T-SWSH
Skookum 4 ton 4" Alloy Snatch Block with SWIVEL SHACKLE (4" x 4T)
Regular price
$891.18
Unit price
/
Unavailable
Model 4" 4T, swivel shackle. Bronze bushed. Up to 3/8 in. wire rope.
- Skookum Gold Standard forgings heat treated for toughness.
- Interchangeable hook & shackle connector options.
- Available with bronze bushings, composite bushings, or roller bearings.
- Captured attaching pin for convenient reeving while block is suspended.
- ASME B30.26-1 compliant
| Sheave Diameter | 4 |
| Wire Rope Min | 1/4 |
| Wire Rope Max | 3/8 |
| WLL (TONS) | 4 |
| Weight (LBS) | 9.35 |
| Replacement Sheave Part # | SKM-571901 |

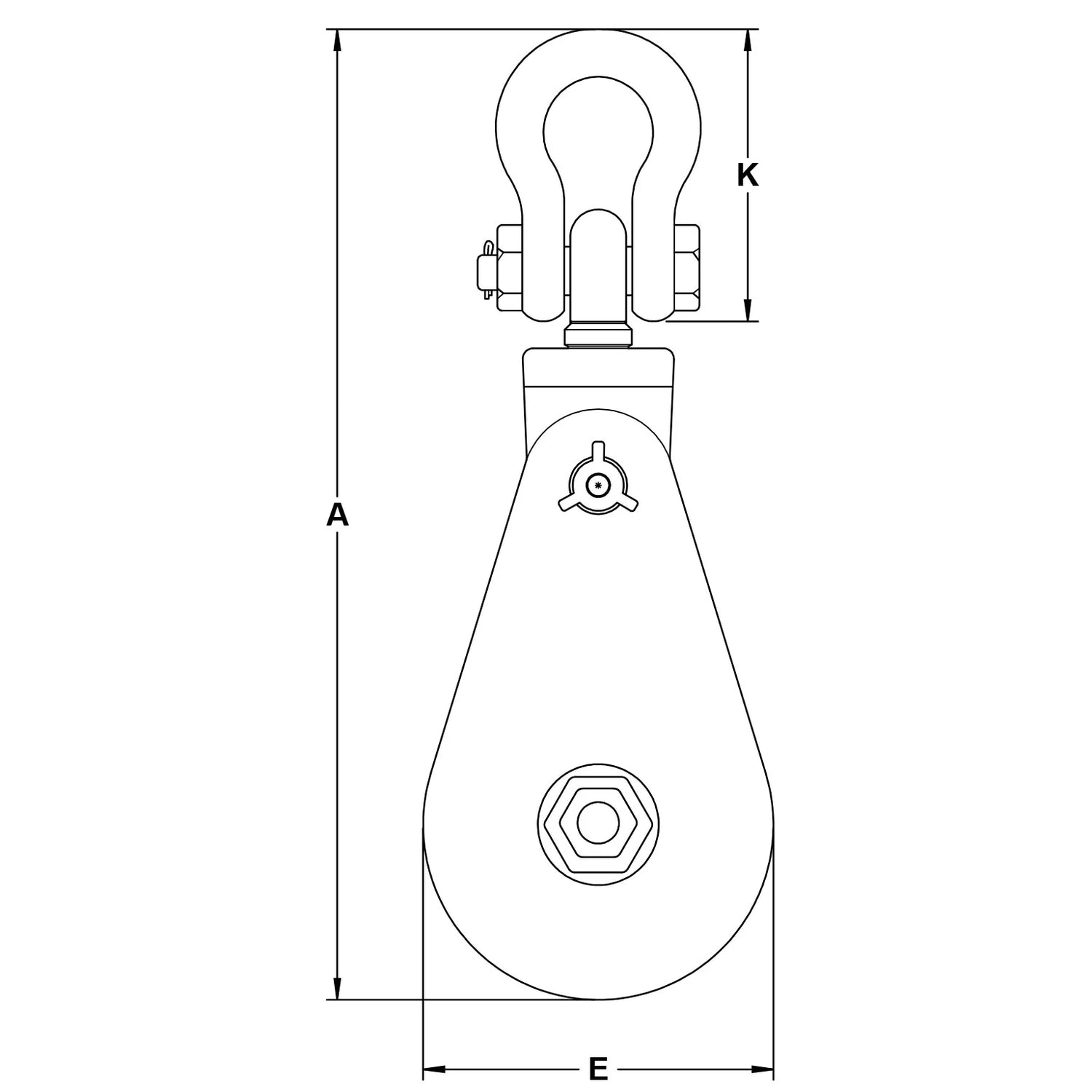

| Height (A) | 12.75 |
| Thickness (D) | 3.3 |
| Width (E) | 4.06 |
| Inside Throat Width (F) | 1.5 |
| Throat Height (G) | 1 |
| Shackle Height (K) | 5.22 |
