Skookum | SKU:
SKM-410-A
Skookum 400 Series 12.5 Ton 10" Half Sided Block with REGULAR YOKE (410-A)
Regular price
$2,541.73
Unit price
/
Unavailable
Skookum 400 Series 12.5T half sided block with yoke. Model 410-A with 10 in. sheave for 3/4 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 10 |
| Wire Rope Min | 5/8 |
| Wire Rope Max | 3/4 |
| WLL (TONS) | 12.5 |
| Weight (LBS) | 48 |
| Replacement Sheave Part # | SKM-536703 |
| Draw Pin Part # | SKM-551422 |

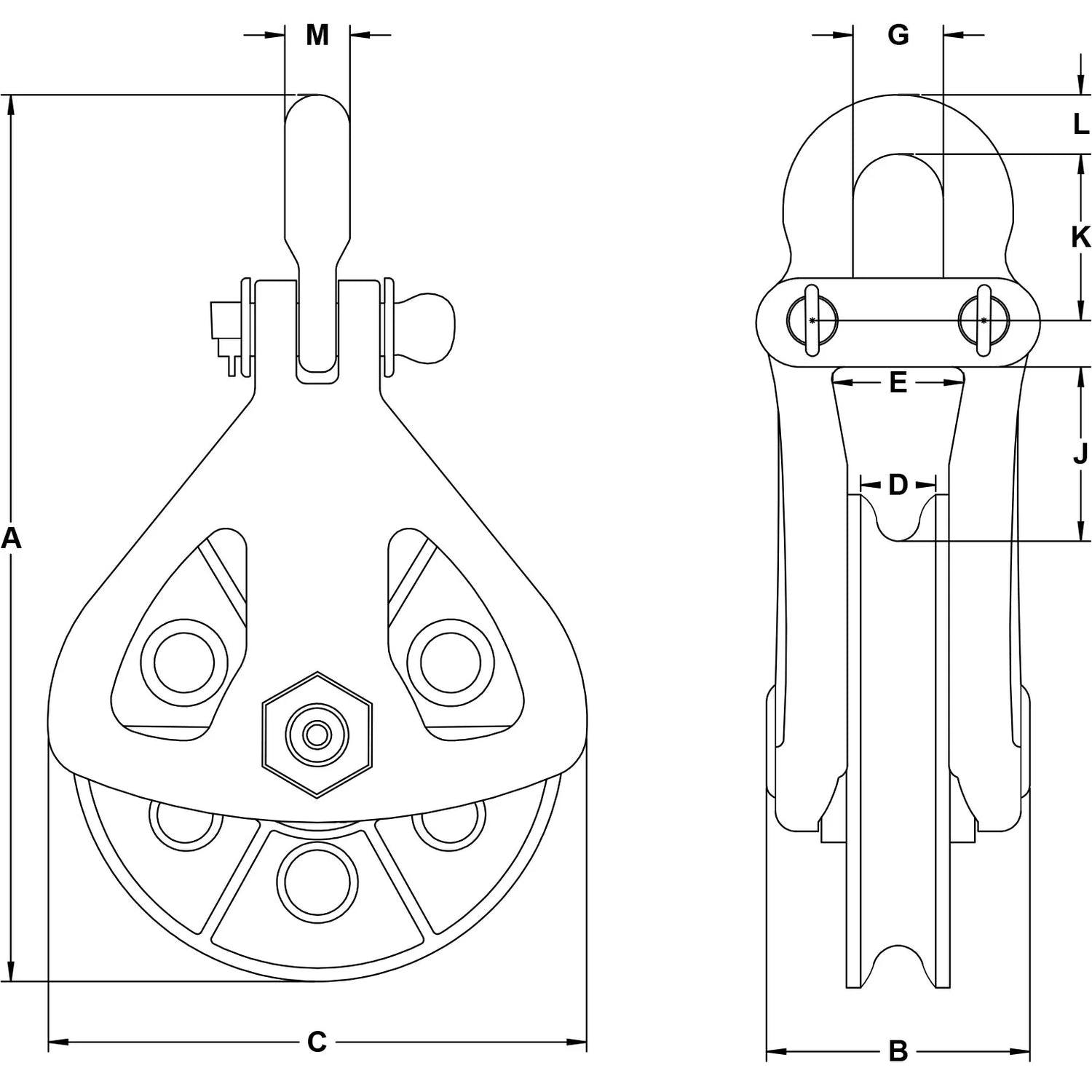

| Height (A) | 18.5 |
| Thickness (B) | 5.5 |
| Width (C) | 11 |
| Throat Bottom (D) | 1.75 |
| Inside Throat Width (E) | 2.75 |
| Inside Yoke Width | 1.75 |
| Yoke Width Above (G) | 1.75 |
| Yoke Width Below | 2.75 |
| Throat Height Below (J) | 4.5 |
| Throat Height Above (K) | 2.5 |
| Yoke Bar Top Height (L) | 1.5 |
| Yoke Bar Width (M) | 1.25 |
