Skookum | SKU:
SKM-416-T-YOKE

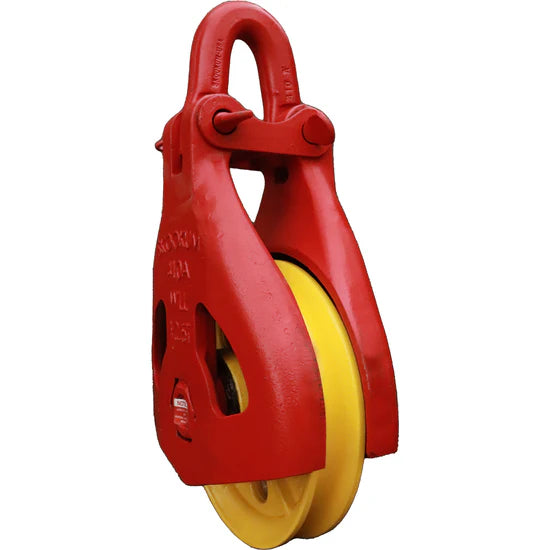

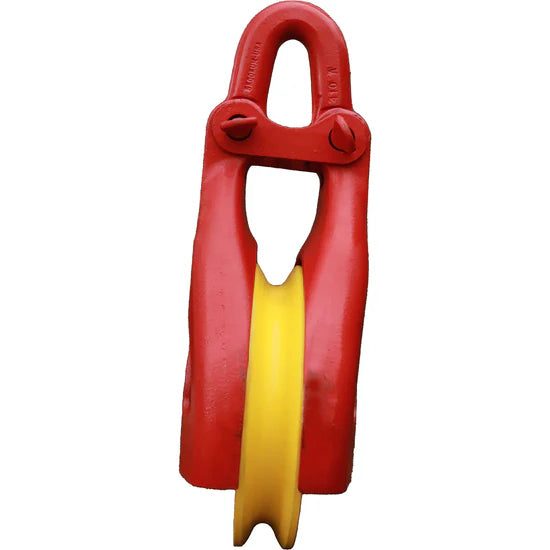

Skookum 400 Series 17.5T Full Sided Block with YOKE (416-T)
Regular price
$4,018.28
Unit price
/
Unavailable
Model 416-T with 16 in. sheave for 7/8 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full side design to maximize sheave protection.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 16 |
| Wire Rope Min | 3/4 |
| Wire Rope Max | 7/8 |
| WLL (TONS) | 17.5 |
| Weight (LBS) | 107 |
| Replacement Sheave Part # | SKM-537503 |
| Draw Pin Part # | SKM-555501 |

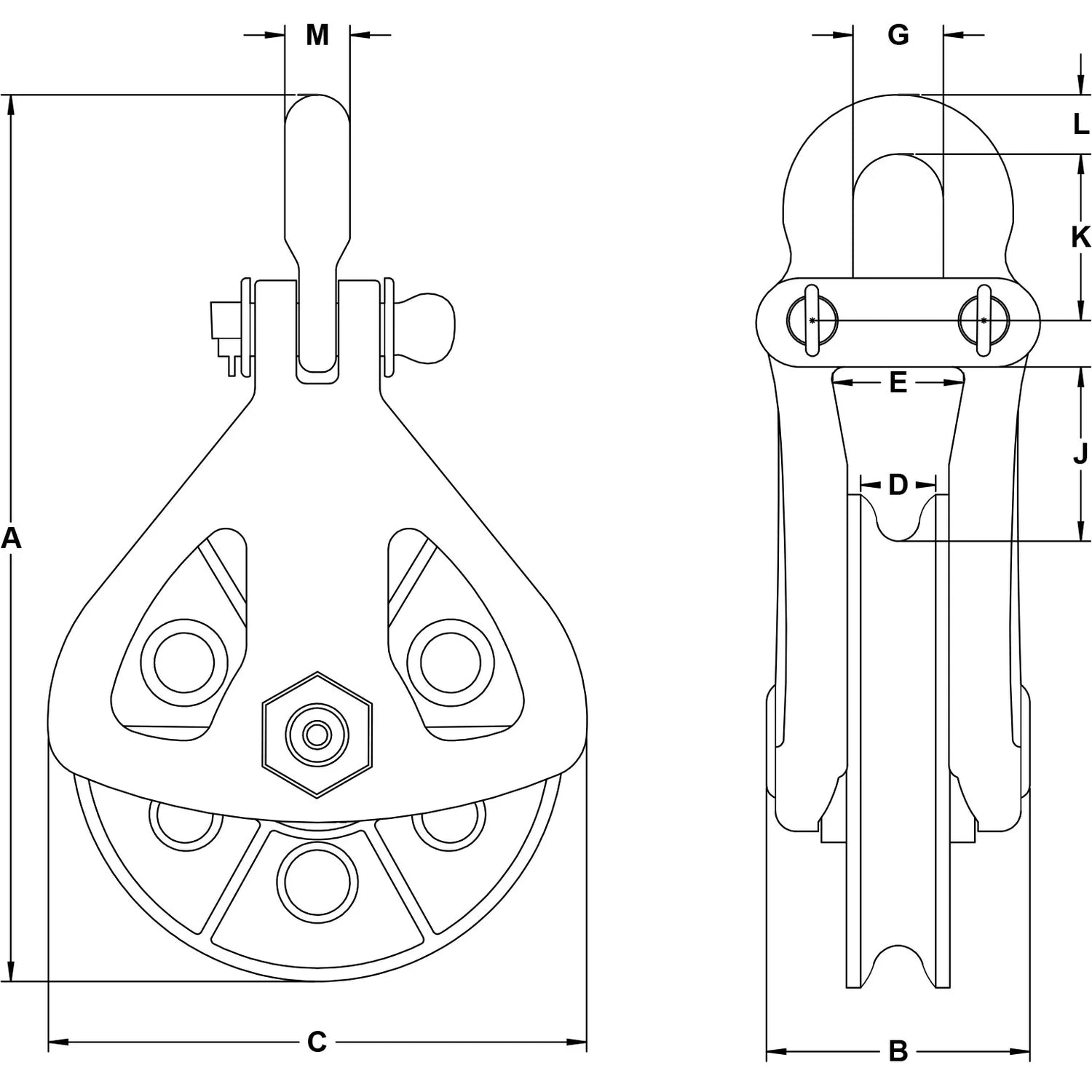

| Height (A) | 27 |
| Thickness (B) | 6.25 |
| Width (C) | 17 |
| Throat Bottom (D) | 2 |
| Inside Throat Width (E) | 3 |
| Inside Yoke Width | 2.38 |
| Yoke Width Above (G) | 3 |
| Yoke Width Below | 3 |
| Throat Height Below (J) | 4.75 |
| Throat Height Above (K) | 2.5 |
| Yoke Bar Top Height (L) | 1.75 |
| Yoke Bar Width (M) | 1.63 |
