Skookum | SKU:
SKM-1000142

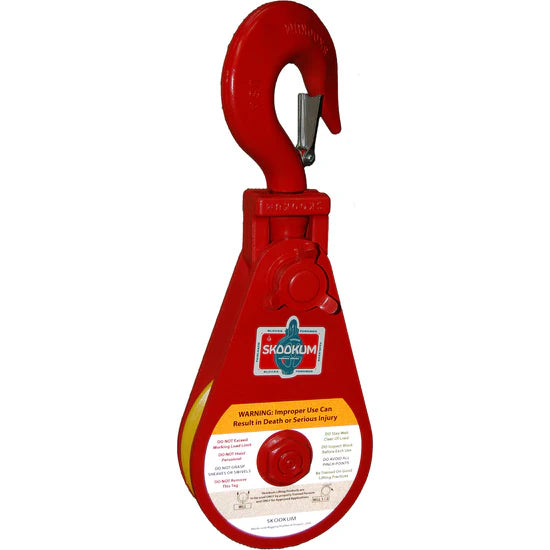

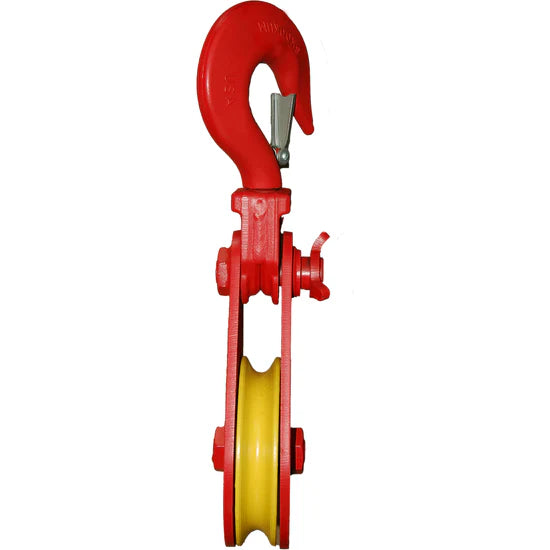

Skookum 8 ton 6" Alloy Snatch Block with SWIVEL HOOK (6" x 8T) (1000142)
Regular price
$957.26
Unit price
/
Unavailable
Model 6" 8T, swivel hook. Bronze bushed. Up to 3/4 in. wire rope.
- Skookum Gold Standard forgings heat treated for toughness.
- Interchangeable hook & shackle connector options.
- Available with bronze bushings, composite bushings, or roller bearings.
- Captured attaching pin for convenient reeving while block is suspended.
- ASME B30.26-1 compliant
| Sheave Diameter | 6 |
| Wire Rope Min | 5/8 |
| Wire Rope Max | 3/4 |
| WLL (TONS) | 8 |
| Weight (LBS) | 27.15 |
| Replacement Sheave Part # | SKM-1003066 |
| Height (A) | 18.65 |
| Thickness (D) | 4.25 |
| Width (E) | 6 |
| Inside Throat Width (F) | 1.91 |
| Throat Height (G) | 1.21 |
| Hook Opening (H) | 1.7 |
| Hook Height (J) | 6.33 |
| Hook Top Height (K) | 2.38 |
| Hook Top Thickness (L) | 1.5 |
