Skookum | SKU:
SKM-1000143

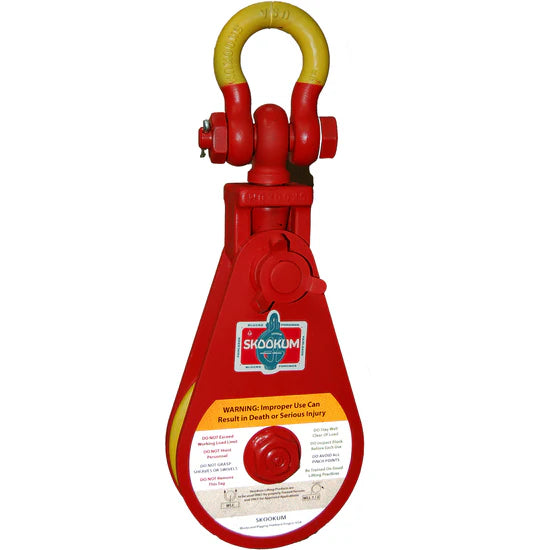

Skookum 8 ton 6" Alloy Snatch Block with SWIVEL SHACKLE (6" x 8T) (1000143)
Regular price
$1,240.04
Unit price
/
Unavailable
Model 6" 8T, swivel shackle. Bronze bushed. Up to 3/4 in. wire rope.
- Skookum Gold Standard forgings heat treated for toughness.
- Interchangeable hook & shackle connector options.
- Available with bronze bushings, composite bushings, or roller bearings.
- Captured attaching pin for convenient reeving while block is suspended.
- ASME B30.26-1 compliant
| Sheave Diameter | 6 |
| Wire Rope Min | 5/8 |
| Wire Rope Max | 3/4 |
| WLL (TONS) | 8 |
| Weight (LBS) | 23.4 |
| Replacement Sheave Part # | SKM-1003066 |
| Height (A) | 16.46 |
| Thickness (D) | 4.25 |
| Width (E) | 6 |
| Inside Throat Width (F) | 1.91 |
| Throat Height (G) | 1.21 |
| Shackle Height (K) | 5.65 |
