Skookum | SKU:
SKM-A-12RT-SWSH

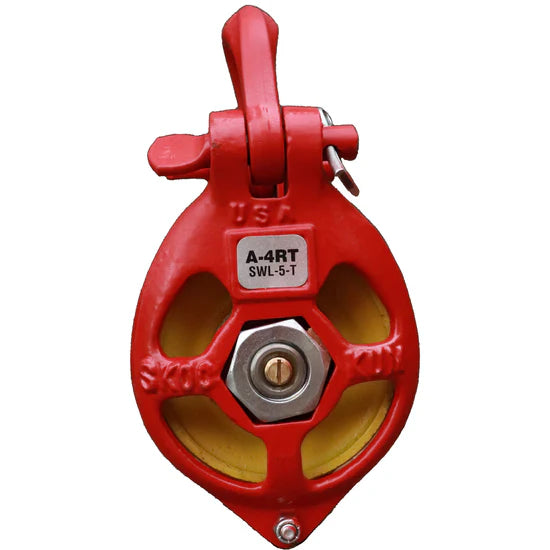

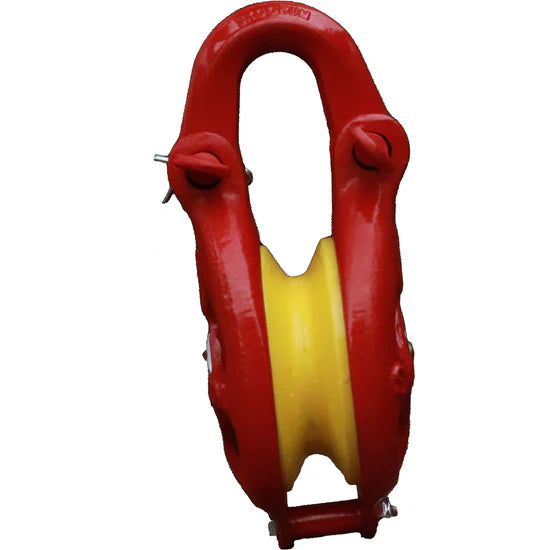

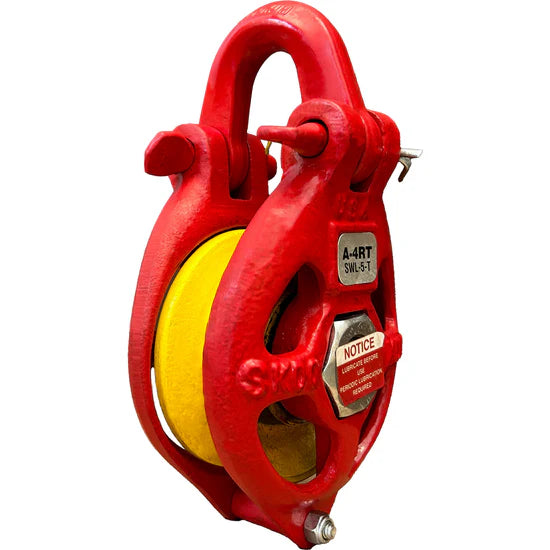

Skookum A Series 12.5 Ton Cast Full Sided Block with SWIVEL SHACKLE (A-12RT)
Regular price
$3,217.62
Unit price
/
Unavailable
Model A-10RT with 10 in. sheave for 3/4 in. wire rope. Roller bearings.
- Work-hardening manganese steel sheaves maximize wire rope and sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided block maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 12 |
| Wire Rope Min | 3/4 |
| Wire Rope Max | 7/8 |
| WLL (TONS) | 12.5 |
| Weight (LBS) | 60 |
| Replacement Sheave Part # | SKM-574602 |
| Draw Pin Part # | SKM-551430 |

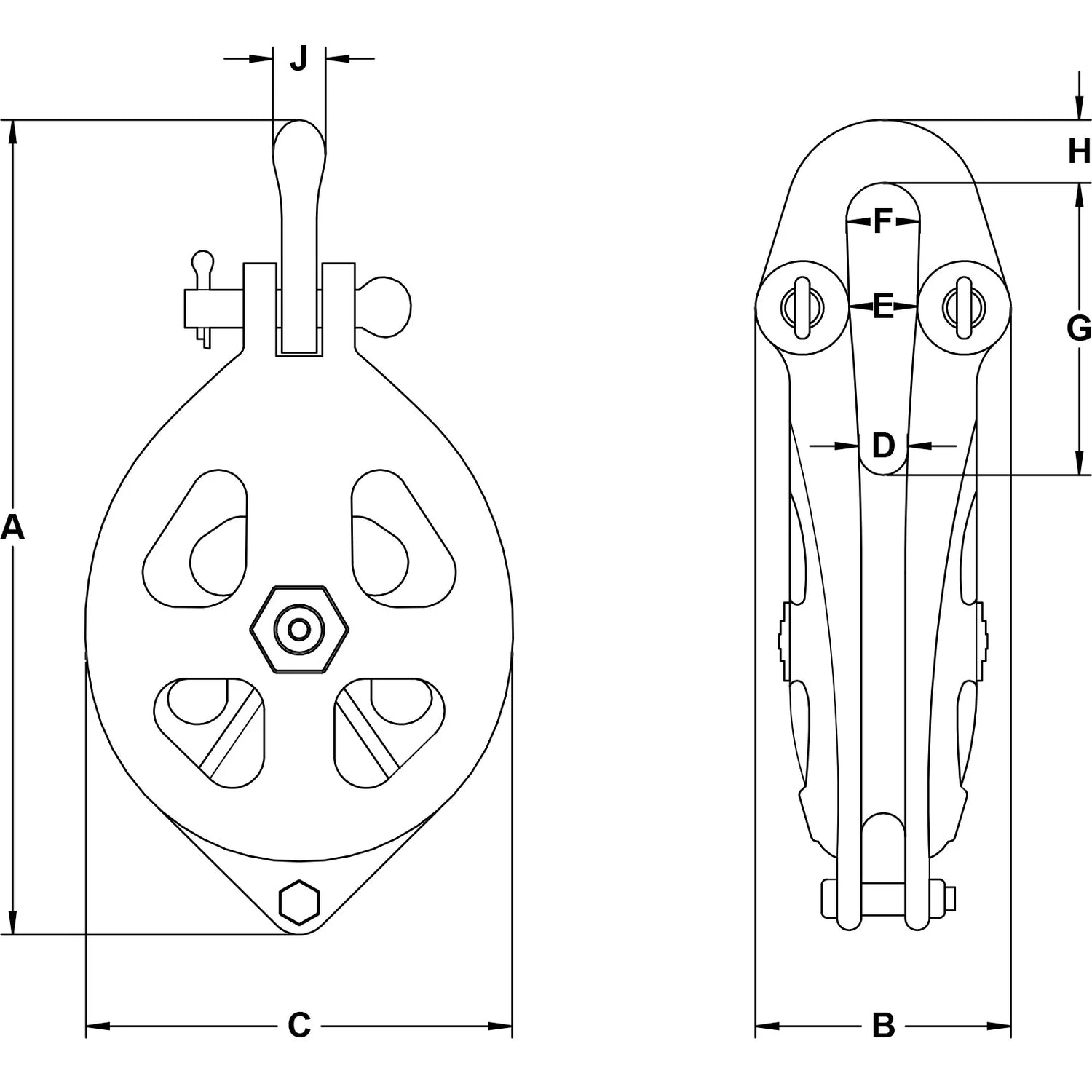

| Height (A) | 21 |
| Thickness (B) | 6.25 |
| Overall Width (C) | 12.5 |
| Throat Bottom Width (D) | 1 |
| Inside Throat Width (E) | 1.75 |
| Inside Yoke Width (F) | 1.75 |
| Throat Height (G) | 7.25 |
| Yoke Bar Height (H) | 1.44 |
| Yoke Bar Width (J) | 1.38 |
