Skookum | SKU:
SKM-A-4RT-YOKE
Skookum A Series 5T Cast Full Sided Block with YOKE (A-4RT)
Regular price
$809.75
Unit price
/
Unavailable
Model A-4RT with 4 in. sheave for 3/8 in. wire rope. Roller bearings.
- Work-hardening manganese steel sheaves maximize wire rope and sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided block maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 4 |
| Wire Rope Min | 1/4 |
| Wire Rope Max | 3/8 |
| WLL (TONS) | 5 |
| Weight (LBS) | 13 |
| Replacement Sheave Part # | SKM-571902 |
| Draw Pin Part # | SKM-551401 |

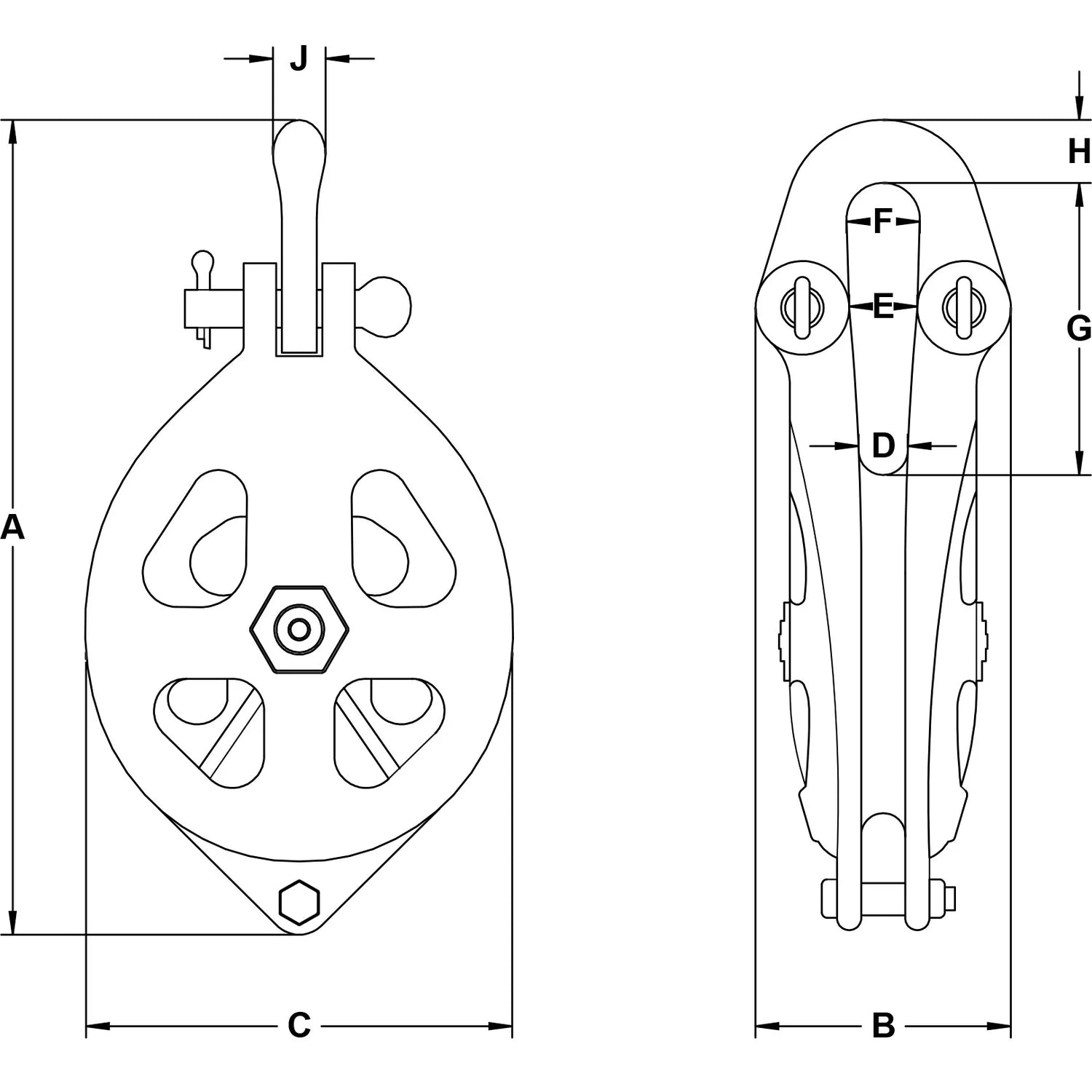

| Height (A) | 9.63 |
| Thickness (B) | 3.5 |
| Overall Width (C) | 4.5 |
| Throat Bottom Width (D) | 1.13 |
| Inside Throat Width (E) | 1.5 |
| Inside Yoke Width (F) | 1.43 |
| Throat Height (G) | 3.5 |
| Yoke Bar Height (H) | 0.88 |
| Yoke Bar Width (J) | 0.75 |
