Skookum | SKU:
SKM-A-10-YOKE

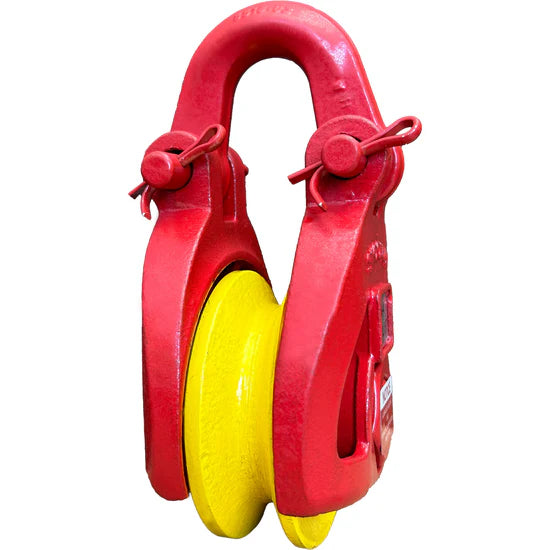

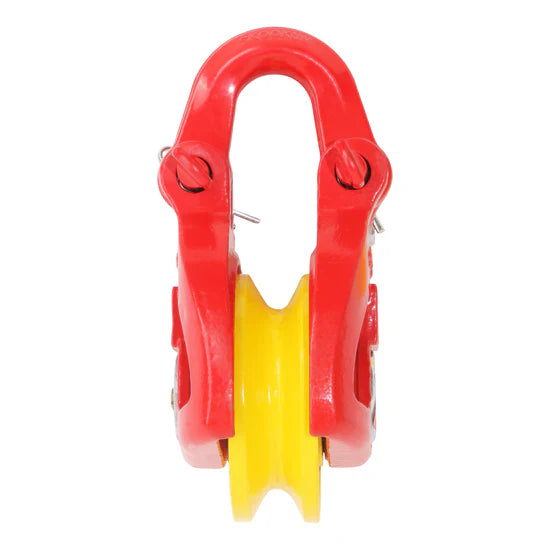

Skookum A Series 8T Cast Half Sided Block with REGULAR YOKE (A-10)
Regular price
$1,345.59
Unit price
/
Unavailable
Model A-10 with 10 in. sheave for 3/4 in. wire rope. Bronze bushed.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 10 |
| Wire Rope Min | 5/8 |
| Wire Rope Max | 3/4 |
| WLL (TONS) | 8 |
| Weight (LBS) | 34 |
| Replacement Sheave Part # | SKM-574401 |
| Draw Pin Part # | SKM-551420 |
| Height (A) | 16.5 |
| Thickness (B) | 4 |
| Overall Width (C) | 11 |
| Throat Bottom Width (D) | 1 |
| Inside Yoke Width | 1.5 |
| Throat Height (G) | 6 |
| Yoke Bar Height | 1.13 |
| Yoke Bar Width | 1.38 |
