Skookum | SKU:
SKM-BML-12
Skookum BML-12 Block 27.5 Tons 12" Full Sided Block with REGULAR YOKE
Regular price
$4,742.10
Unit price
/
Unavailable
Skookum 27.5T full sided block with yoke. Model BML-12 with 12 in. sheave for 1 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Full sided design maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 12 |
| Wire Rope Min | 1 |
| Wire Rope Max | 1.25 |
| WLL (TONS) | 27.5 |
| Weight (LBS) | 162 |
| Replacement Sheave Part # | SKM-60185 |
| Draw Pin Part # | SKM-960189 |

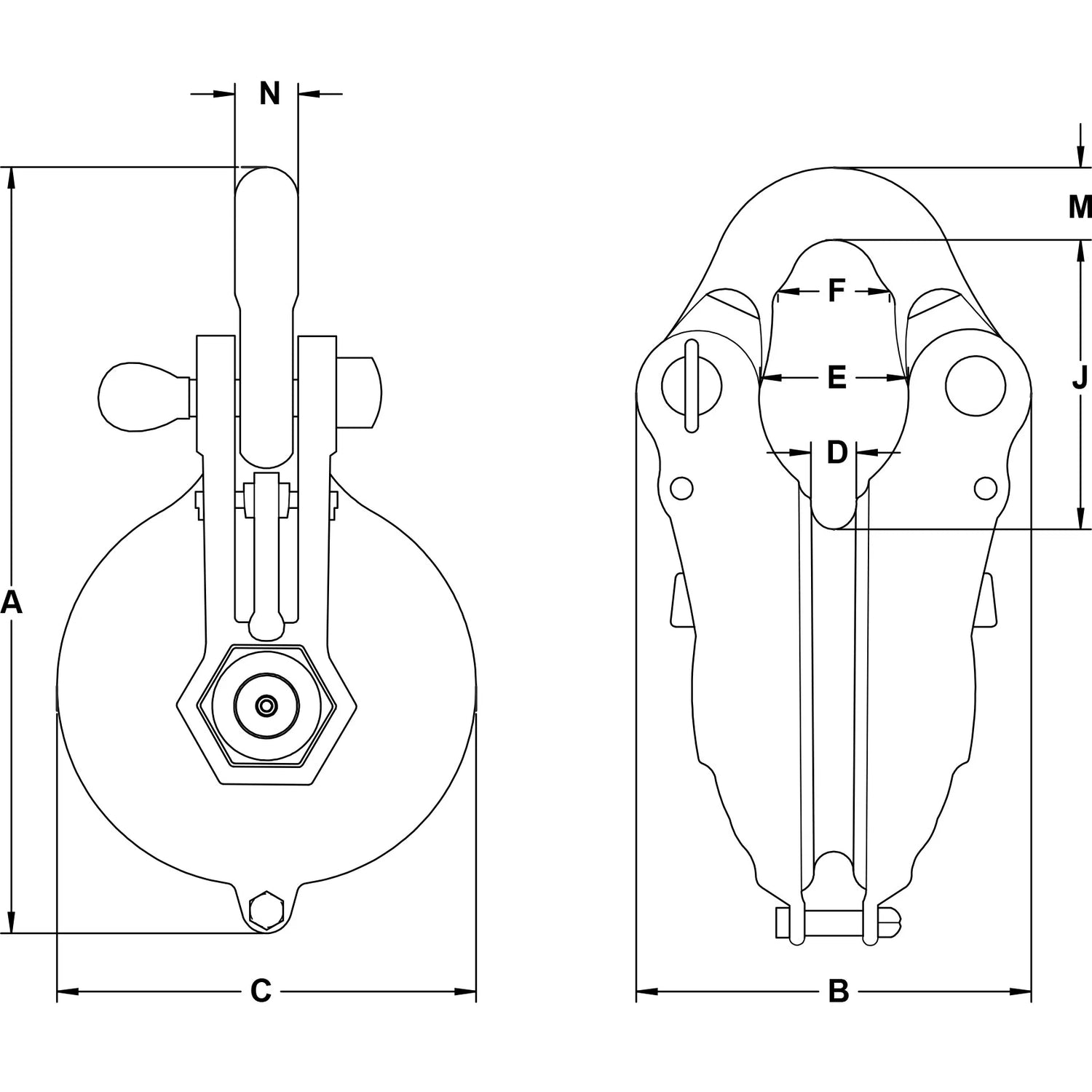

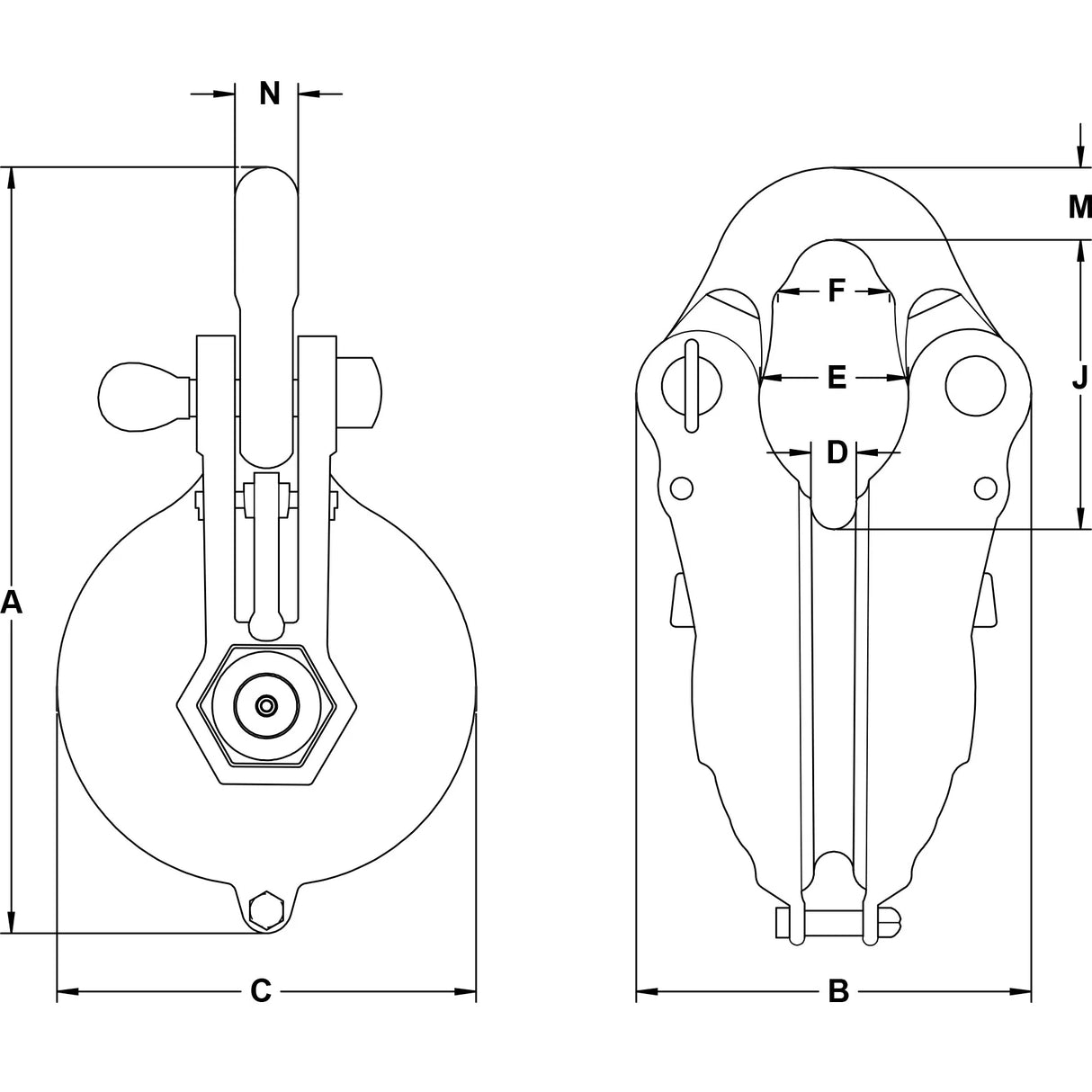

| Height (A) | 25 |
| Thickness (B) | 11.75 |
| Width (C) | 13 |
| Throat Bottom (D) | 1.75 |
| Inside Throat Width (E) | 4.5 |
| Inside Yoke Width (F) | 4 |
| Throat Height (J) | 9 |
| Yoke Bar Height (M) | 2.75 |
| Yoke Bar Width (N) | 2.15 |
