Skookum | SKU:
SKM-557700-YOKE
Skookum R Series 8 Ton 8" Full Sided Block with REGULAR YOKE
Regular price
$1,693.33
Unit price
/
Unavailable
Model R8 with 8 in. sheave for 5/8 in. wire rope. Timken roller bearings.
- Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
- Work -hardening manganese steel sheaves maximize wire rope & sheave life.
- Alloy sheave option offers same durability at a lower cost.
- R6, R8, & R4 equipped with tapered roller bearings for long life in higher line speed applications.
- R4 equipped with straight roller bearings to minimize size.
- Recessed sheave prevents wire rope from binding between sheave and block side.
- Full sided block maximizes sheave protection and strength.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 8 |
| Wire Rope Min | 1/2 |
| Wire Rope Max | 5/8 |
| WLL (TONS) | 8 |
| Weight (LBS) | 43 |
| Replacement Sheave Part # | SKM-799203 |
| Draw Pin Part # | SKM-551420 |

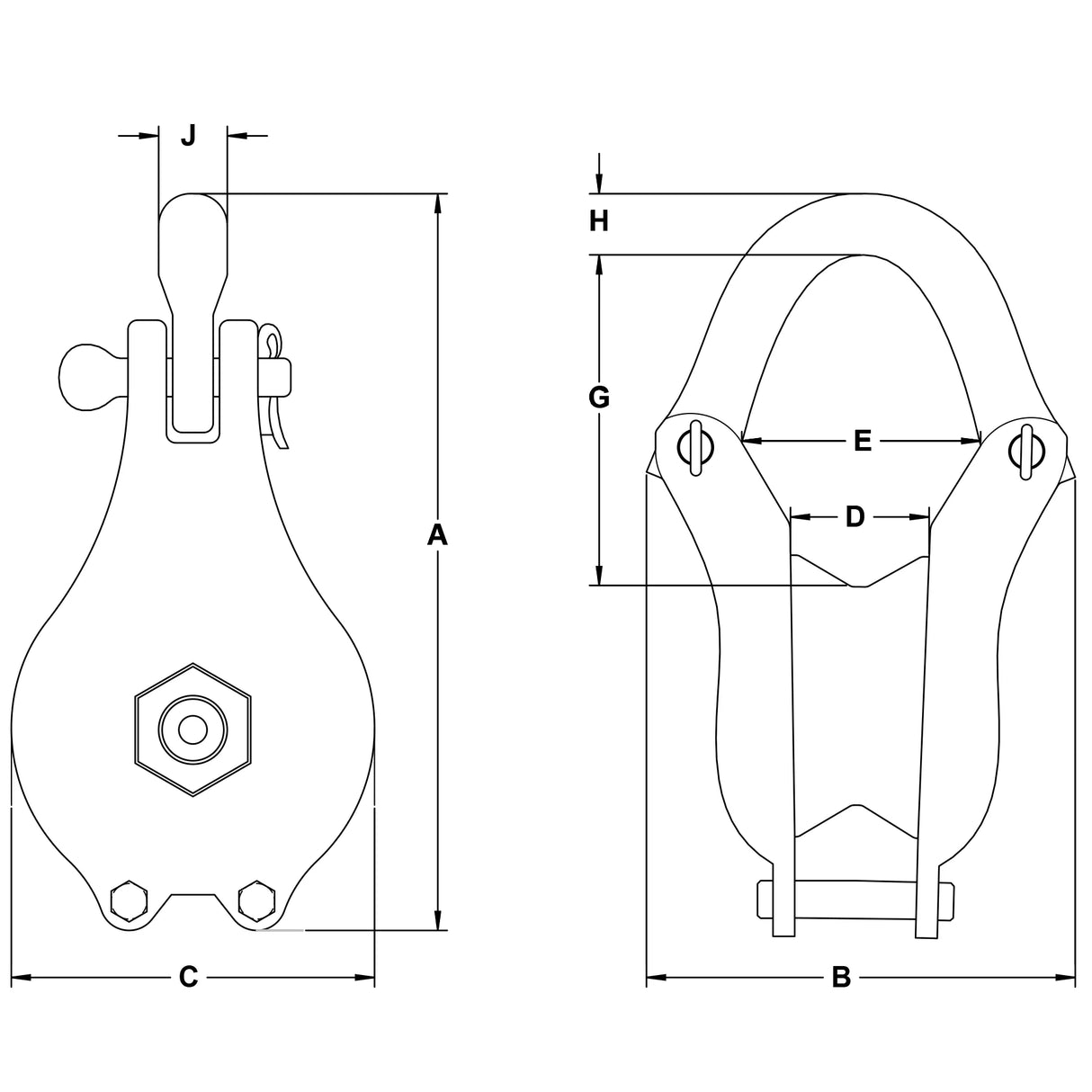

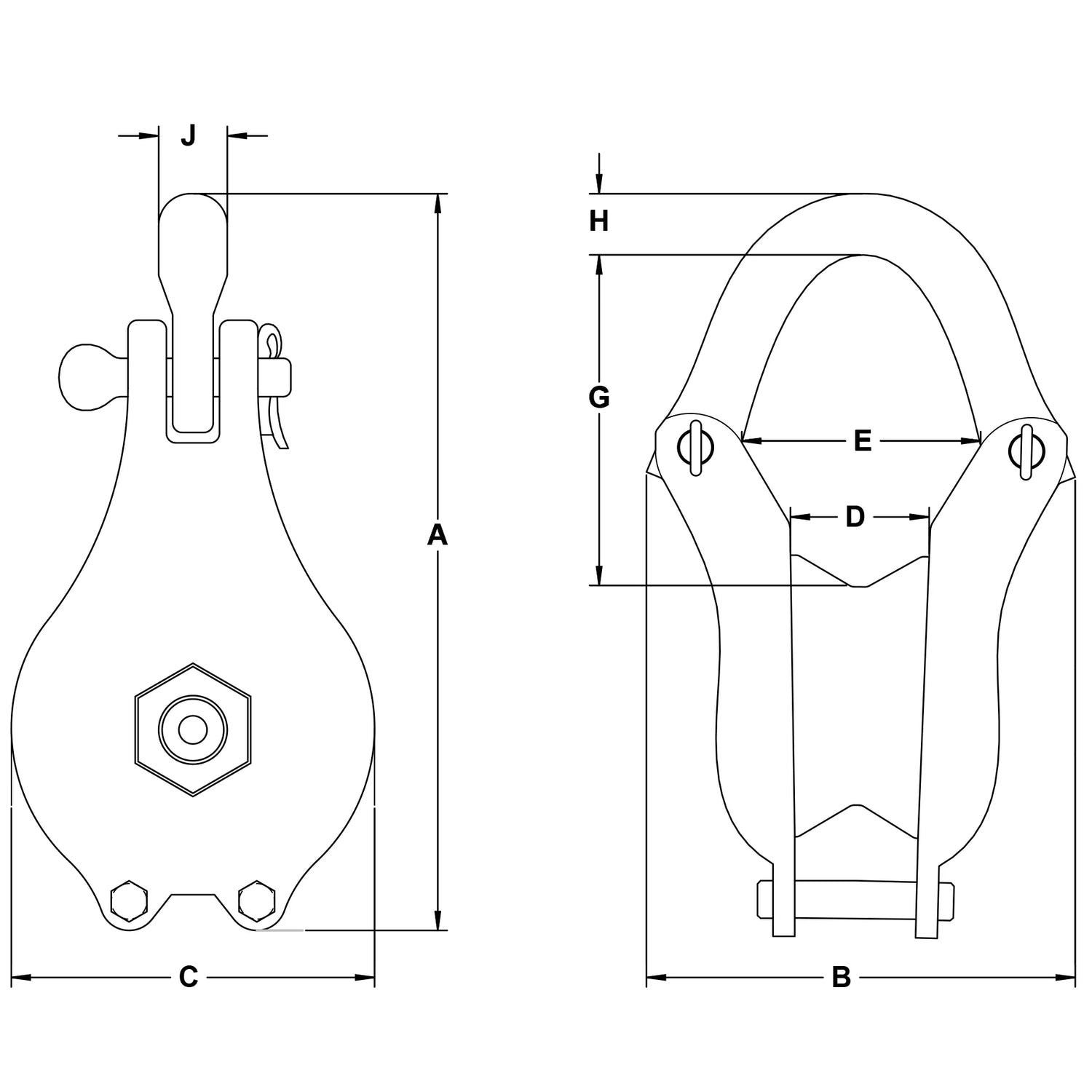

| Height (A) | 17 |
| Thickness (B) | 8.5 |
| Width (C) | 8.75 |
| Throat Bottom (D) | 2.5 |
| Inside Throat Width (E) | 4.75 |
| Throat Height (G) | 7.25 |
| Yoke Bar Height (H) | 1.38 |
| Yoke Bar Width (J) | 1.38 |
