Skookum Ropemaster 10 Ton 8" Wide Throat Cast Half Sided Block with SWIVEL SHACKLE

Ropemaster Wide Throat 10T cast half sided block with swivel shackle. Model 808 with 8 in. sheave for 5/8 in. wire rope. Timken roller bearings.

• Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
• Work-hardening manganese steel sheave maximize wire rope & sheave life.
• Equipped with tapered roller bearings for long life in higher line speed applications.
• Recessed sheave design prevents wire rope from binding between sheave and block side.
• Half side design for strength with minimized weight.
• Versatile draw pin allow for rapid reeving & exchange of attaching style.
• Rugged cast alloy steel sides for demanding environments.
• ASME B30.26-1 compliant

• Sheave Diameter	8
  Wire Rope Min	1/2
  Wire Rope Max	5/8
  WLL (TONS)	10
  Weight (LBS)	32
  Replacement Sheave Part #	SKM-799203
  Draw Pin Part #	SKM-551420

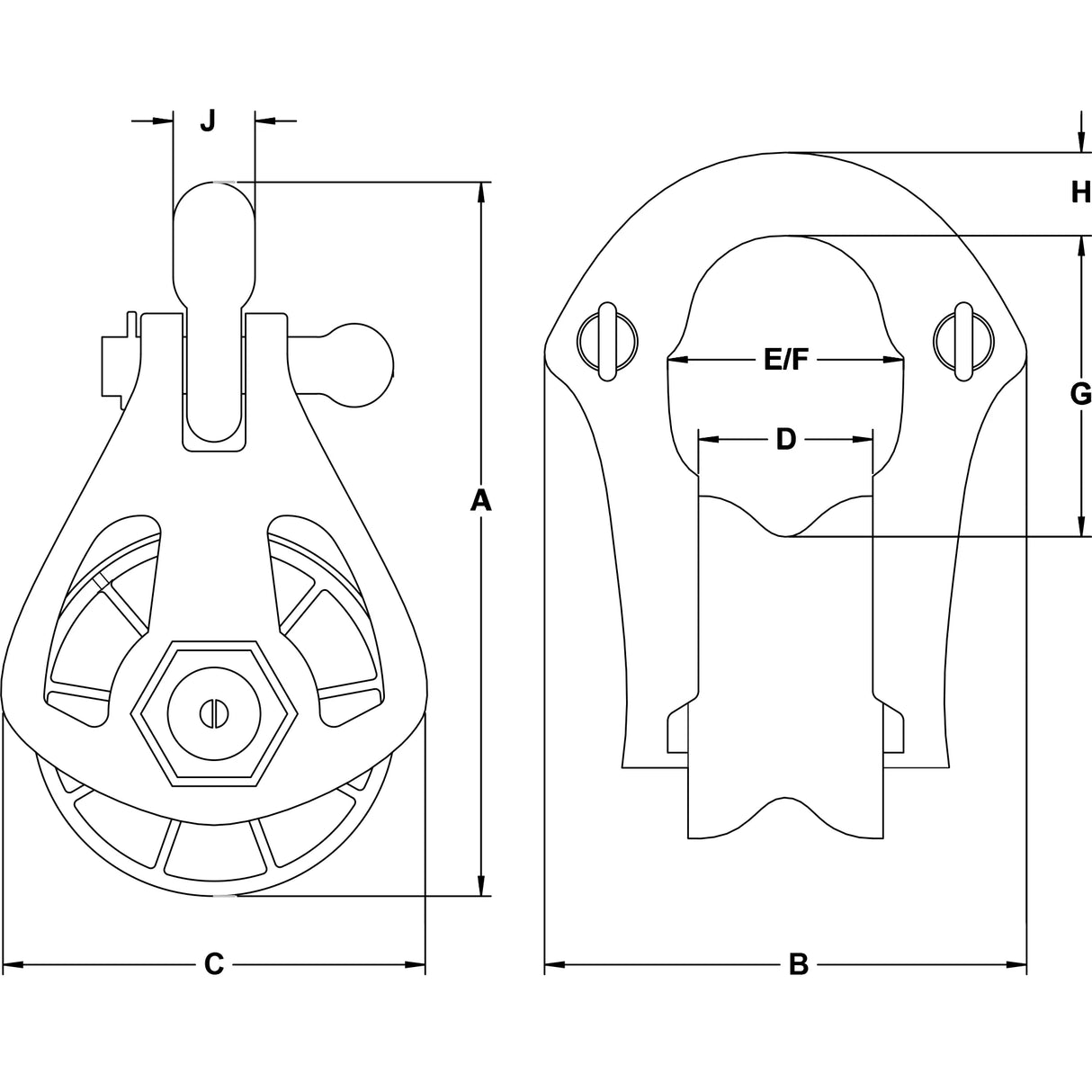

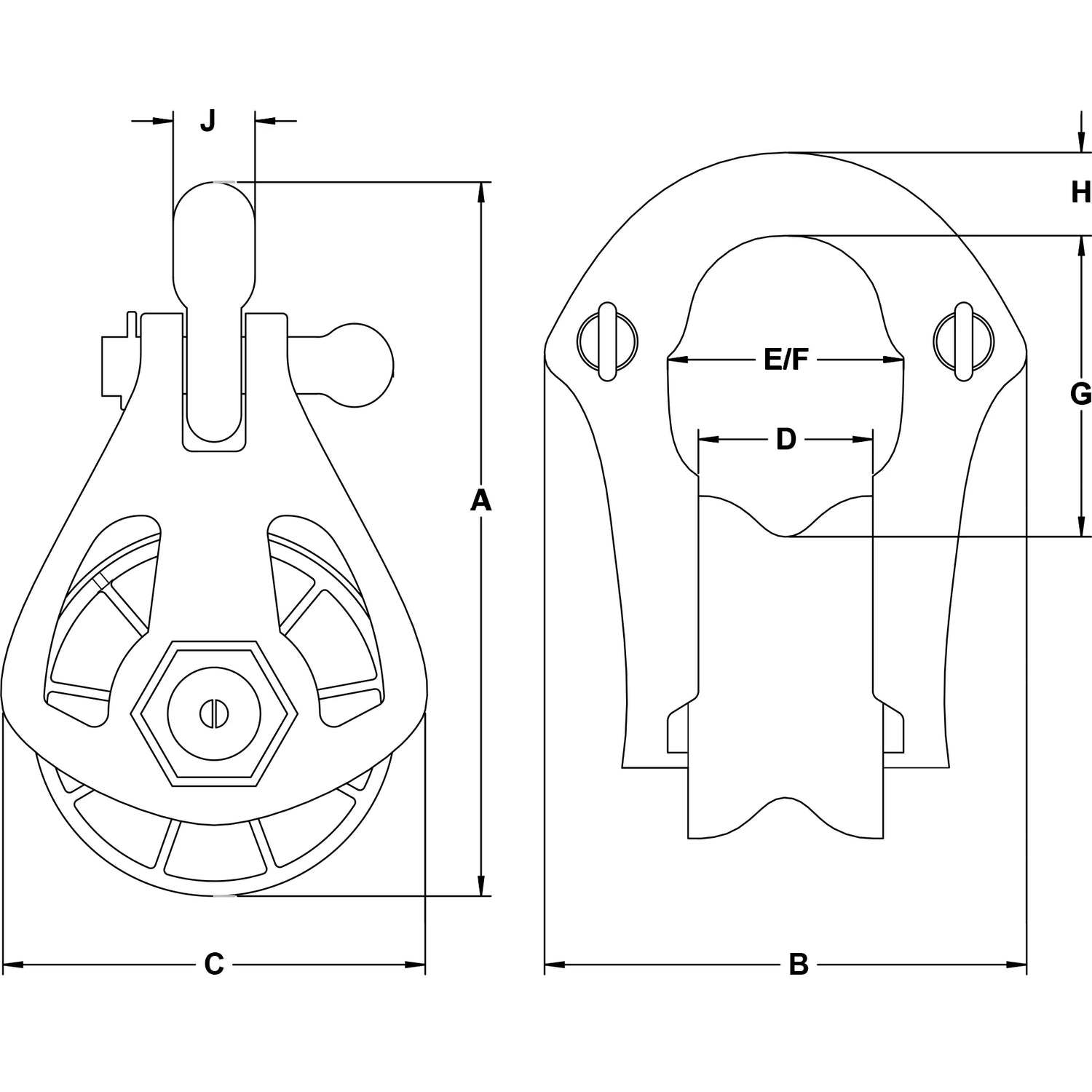

  Height (A)	17
  Thickness (B)	6.5
  Width (C)	8.75
  Throat Bottom (D)	2.63
  Inside Throat Width (E)	2.63
  Inside Yoke Width (F)	2.63
  Throat Height (G)	3.75
  Yoke Bar Height (H)	1.38
  Yoke Bar Width (J)	1.38
