Skookum | SKU:
SKM-508-YOKE

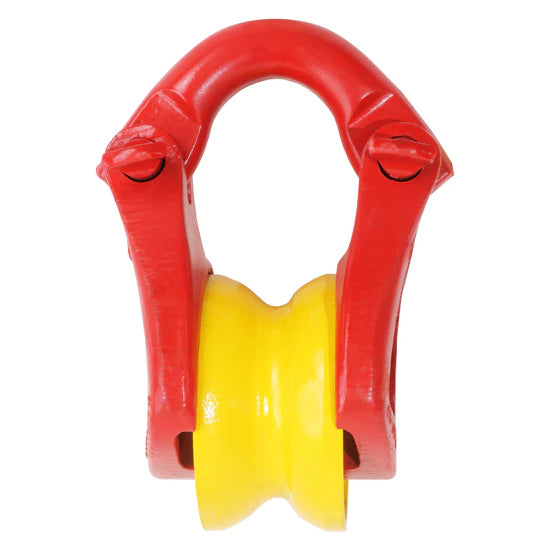

Skookum Ropemaster 15 Ton 8" Wide Throat Cast Half Sided Block with REGULAR YOKE
Regular price
$3,106.27
Unit price
/
Unavailable
Ropemaster Wide Throat 15T cast half sided block with yoke. Model 508 with 8 in. sheave for 1-1/8 in. wire rope. Timken roller bearings.
- Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 8 |
| Wire Rope Min | 1 |
| Wire Rope Max | 1 1/8 |
| WLL (TONS) | 15 |
| Weight (LBS) | 72 |
| Replacement Sheave Part # | SKM-226203 |
| Draw Pin Part # | SKM-551468 |

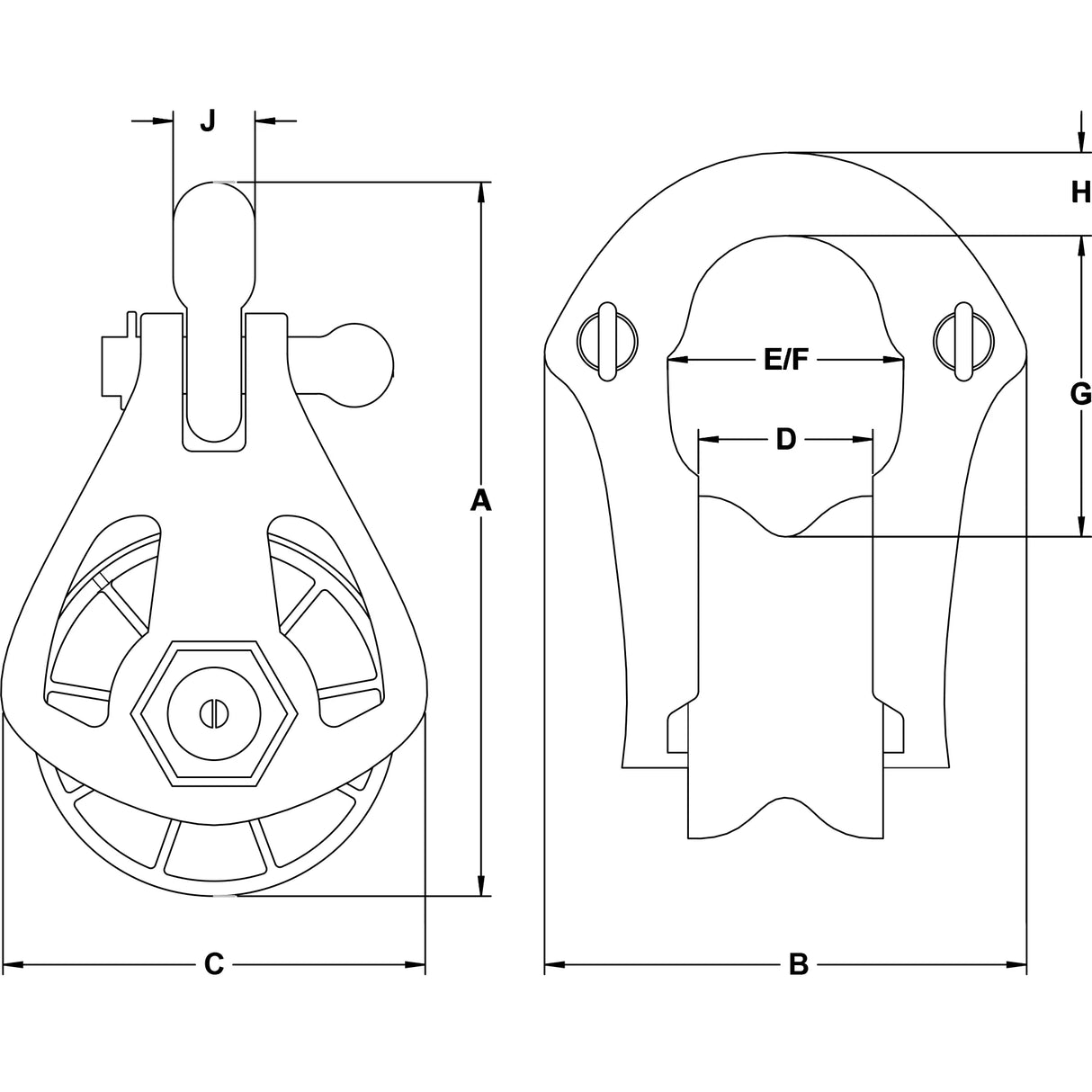

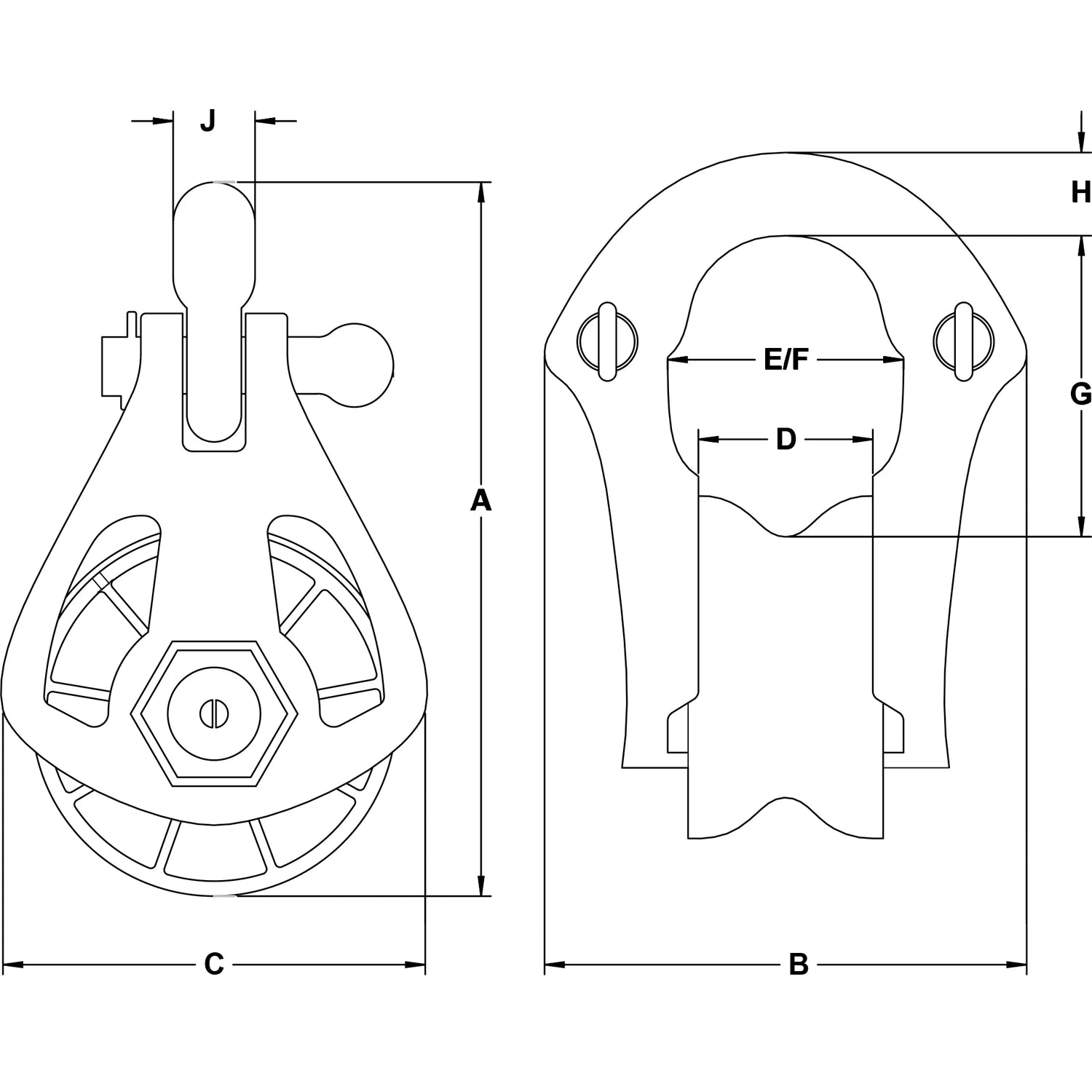

| Height (A) | 15 |
| Thickness (B) | 11 |
| Width (C) | 9.5 |
| Throat Bottom (D) | 4 |
| Inside Throat Width (E) | 4 |
| Inside Yoke Width (F) | 5.25 |
| Throat Height (G) | 6.5 |
| Yoke Bar Height (H) | 2 |
| Yoke Bar Width (J) | 2 |
