Skookum | SKU:
SKM-108500

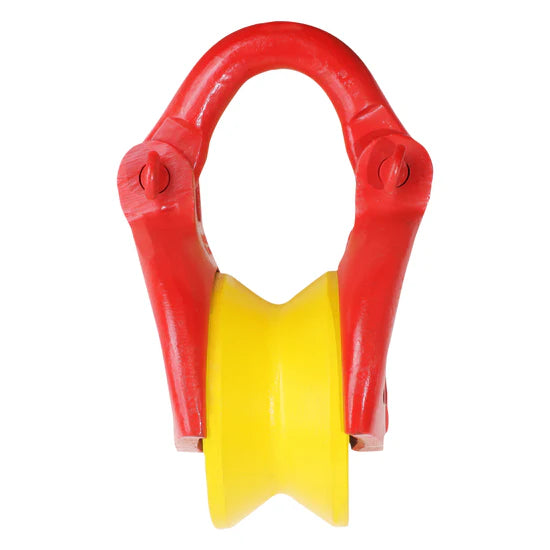

Skookum Ropemaster 25 Ton 10" Wide Throat Cast Half Sided Block with REGULAR YOKE (108500)
Regular price
$3,968.33
Unit price
/
Unavailable
Ropemaster Wide Throat 25T cast half sided block with yoke. Model TM-10 with 10 in. sheave for 1-1/2 in. wire rope. Timken roller bearings.
- Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 10 |
| Wire Rope Min | 1 |
| Wire Rope Max | 1 1/4 |
| WLL (TONS) | 25 |
| Weight (LBS) | 110 |
| Replacement Sheave Part # | SKM-108526 |
| Draw Pin Part # | SKM-108512 |

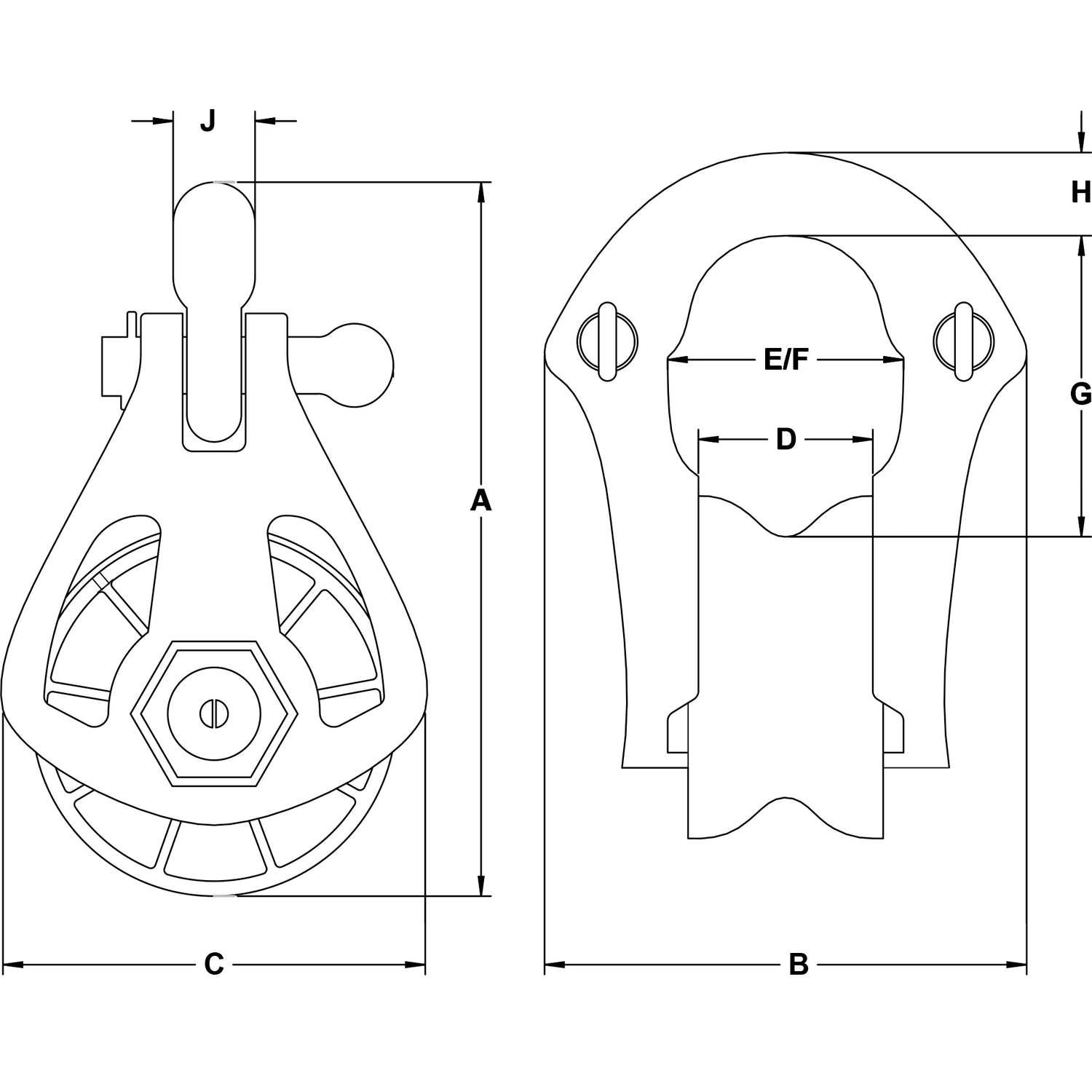

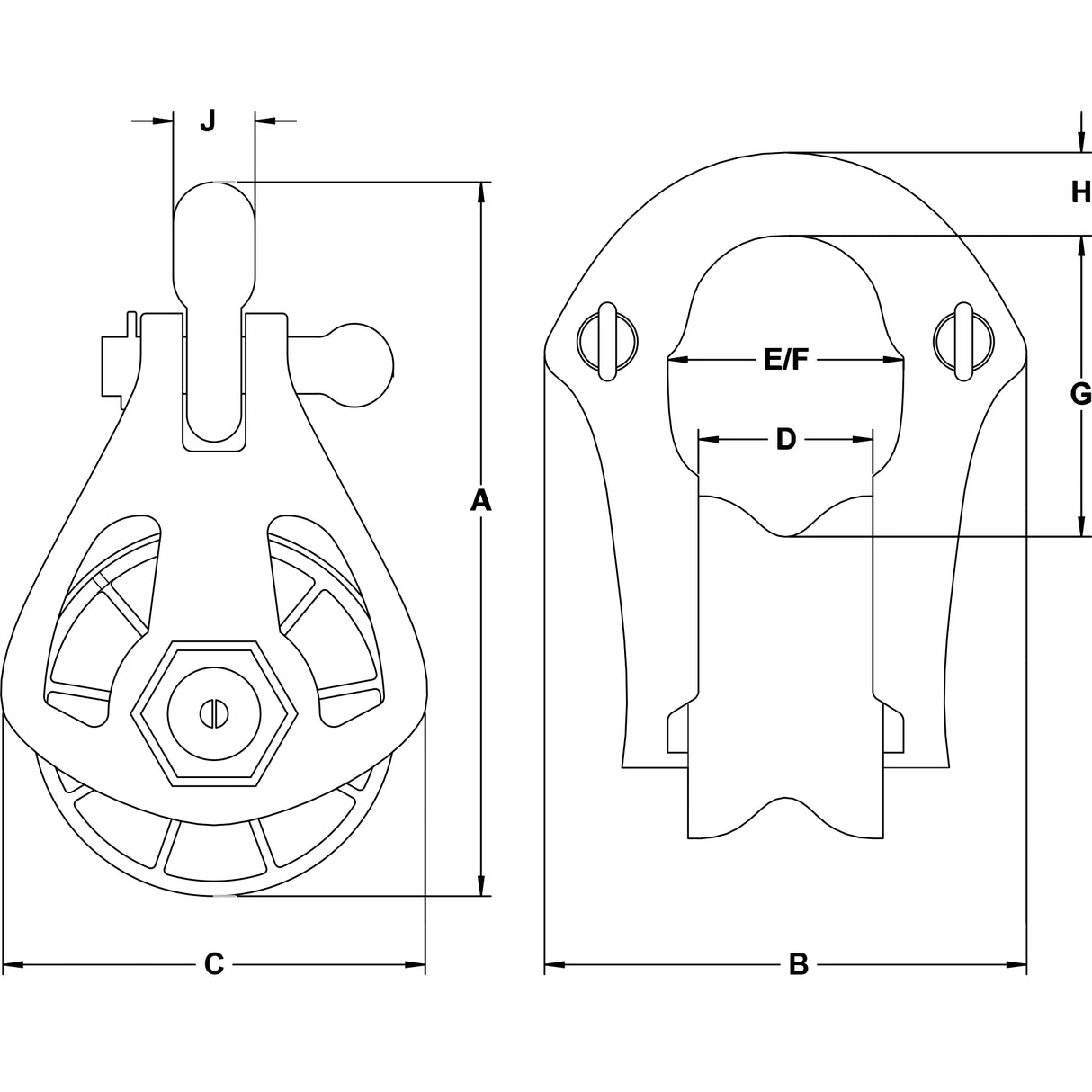

| Height (A) | 20 |
| Thickness (B) | 12 |
| Width (C) | 11.5 |
| Throat Bottom (D) | 4.5 |
| Inside Throat Width (E) | 4.5 |
| Inside Yoke Width (F) | 6 |
| Throat Height (G) | 9 |
| Yoke Bar Height (H) | 2 |
| Yoke Bar Width (J) | 2 |
