Skookum | SKU:
SKM-2216WA-YOKE
Skookum Ropemaster 25 Ton 16" Wide Throat Cast Half Sided Block with REGULAR YOKE
Regular price
$10,657.43
Unit price
/
Unavailable
Ropemaster Wide Throat 25T cast half sided block with yoke. Model 2216WA with 16 in. sheave for 1-1/4 in. wire rope. Timken roller bearings.
- Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 16 |
| Wire Rope Min | 1 1/8 |
| Wire Rope Max | 1 1/4 |
| WLL (TONS) | 25 |
| Weight (LBS) | 285 |
| Replacement Sheave Part # | SKM-101983 |
| Draw Pin Part # | SKM-620801WA |

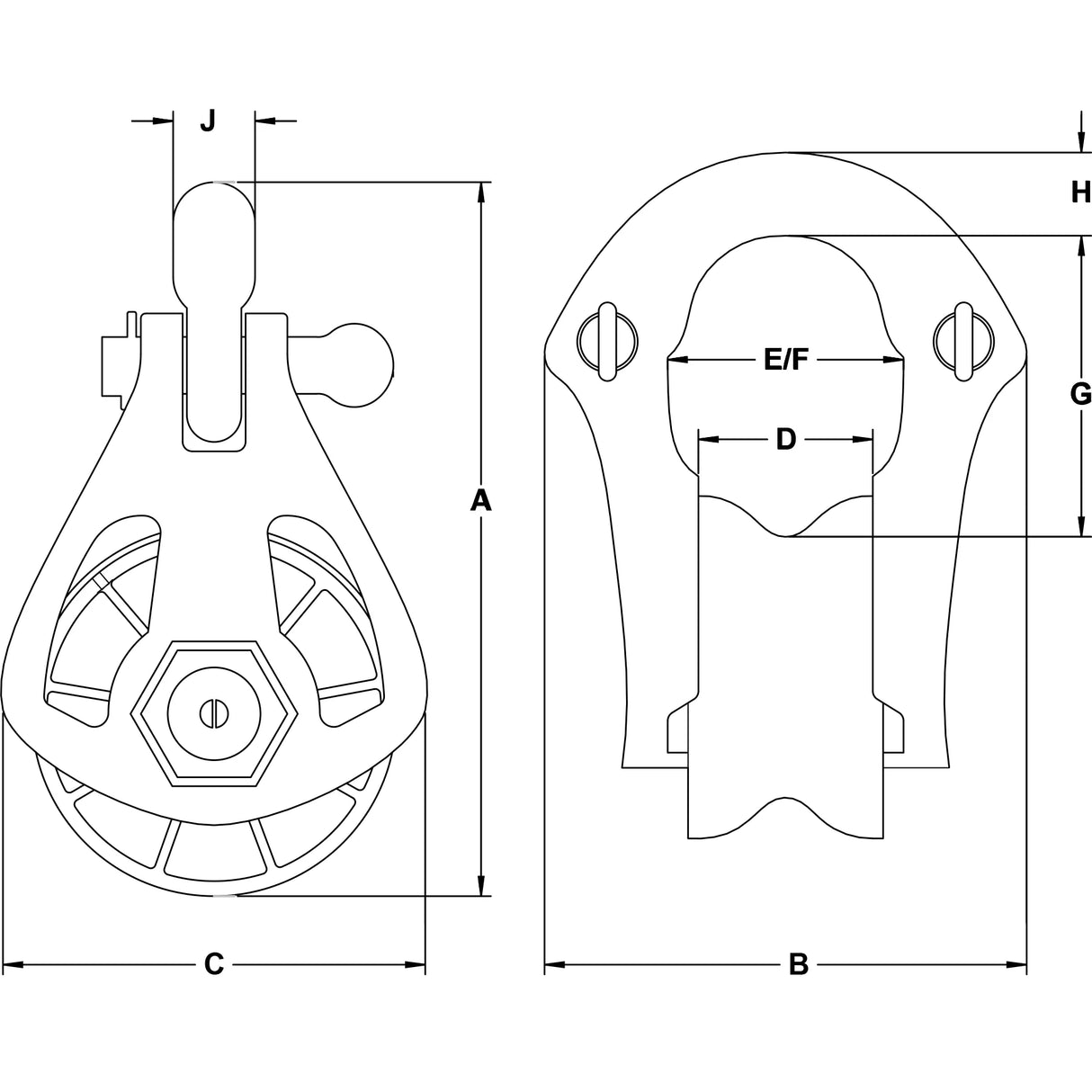

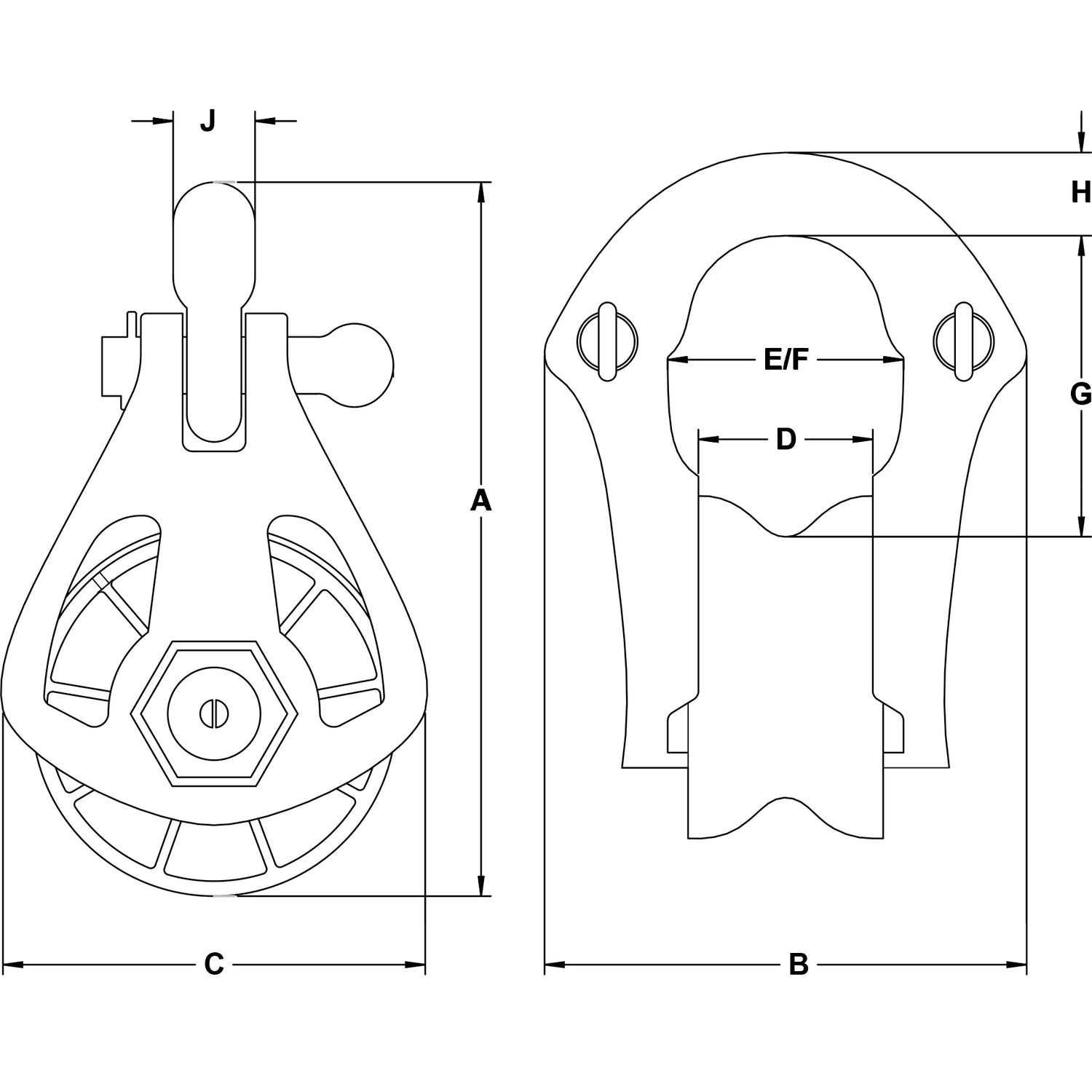

| Height (A) | 30.5 |
| Thickness (B) | 13.63 |
| Width (C) | 16.5 |
| Throat Bottom (D) | 6.75 |
| Inside Throat Width (E) | 9.5 |
| Inside Yoke Width (F) | 9.5 |
| Throat Height (G) | 15 |
| Yoke Bar Height (H) | 2.38 |
| Yoke Bar Width (J) | 2.38 |
