Skookum | SKU:
SKM-106-YOKE
Skookum Ropemaster 6.25 Ton 6" Half Sided Block with REGULAR YOKE
Regular price
$1,349.54
Unit price
/
Unavailable
Ropemaster 6.25T half sided block with yoke. Model 106 with 6 in. sheave for 1/2 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Alloy steel sheaves are used on lightweight models 513A & 515A.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 6 |
| Wire Rope Min | 3/8 |
| Wire Rope Max | 1/2 |
| WLL (TONS) | 6.25 |
| Weight (LBS) | 21 |
| Replacement Sheave Part # | SKM-222003 |
| Draw Pin Part # | SKM-551410 |

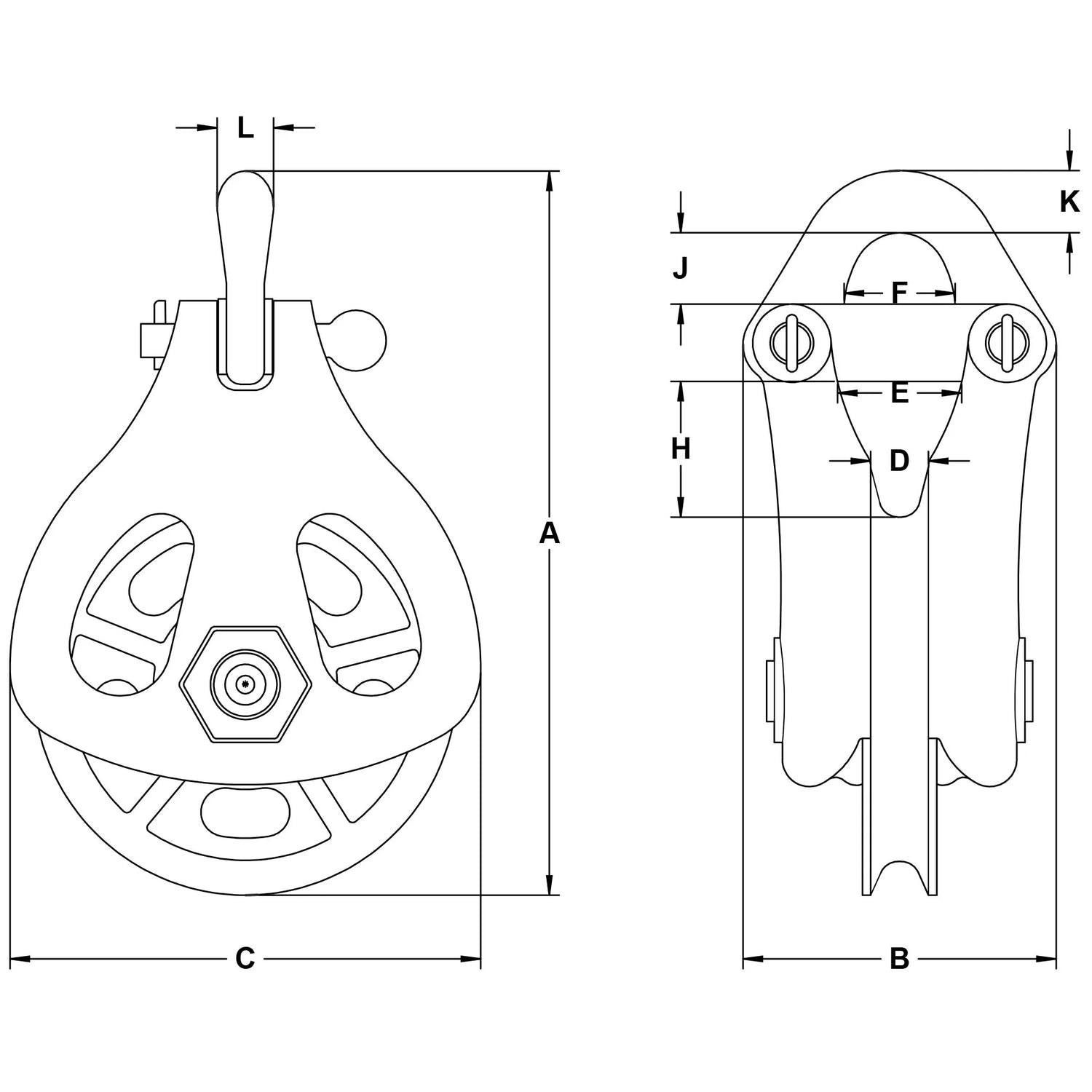

| Height (A) | 11.5 |
| Thickness (B) | 5.68 |
| Width (C) | 6.56 |
| Throat Bottom (D) | 1.25 |
| Inside Throat Width (E) | 2.43 |
| Yoke Width Above (F) | - |
| Throat Height | 5 |
| Throat Height Below (H) | - |
| Throat Height Above (J) | - |
| Yoke Bar Height (K) | 1.09 |
| Yoke Bar Width (L) | 1.25 |
