Skookum | SKU:
SKM-558003-YOKE
Skookum T Series 8 Ton 10" Cast Half Sided Block with REGULAR YOKE (T-10S)
Regular price
$2,009.68
Unit price
/
Unavailable
Model T-10S with 10 in. sheave for 1 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 10 |
| Wire Rope Min | 3/4 |
| Wire Rope Max | 3/4 |
| WLL (TONS) | 8.0 |
| Weight (LBS) | 52 |
| Replacement Sheave Part # | SKM-539903 |
| Draw Pin Part # | SKM-551420 |

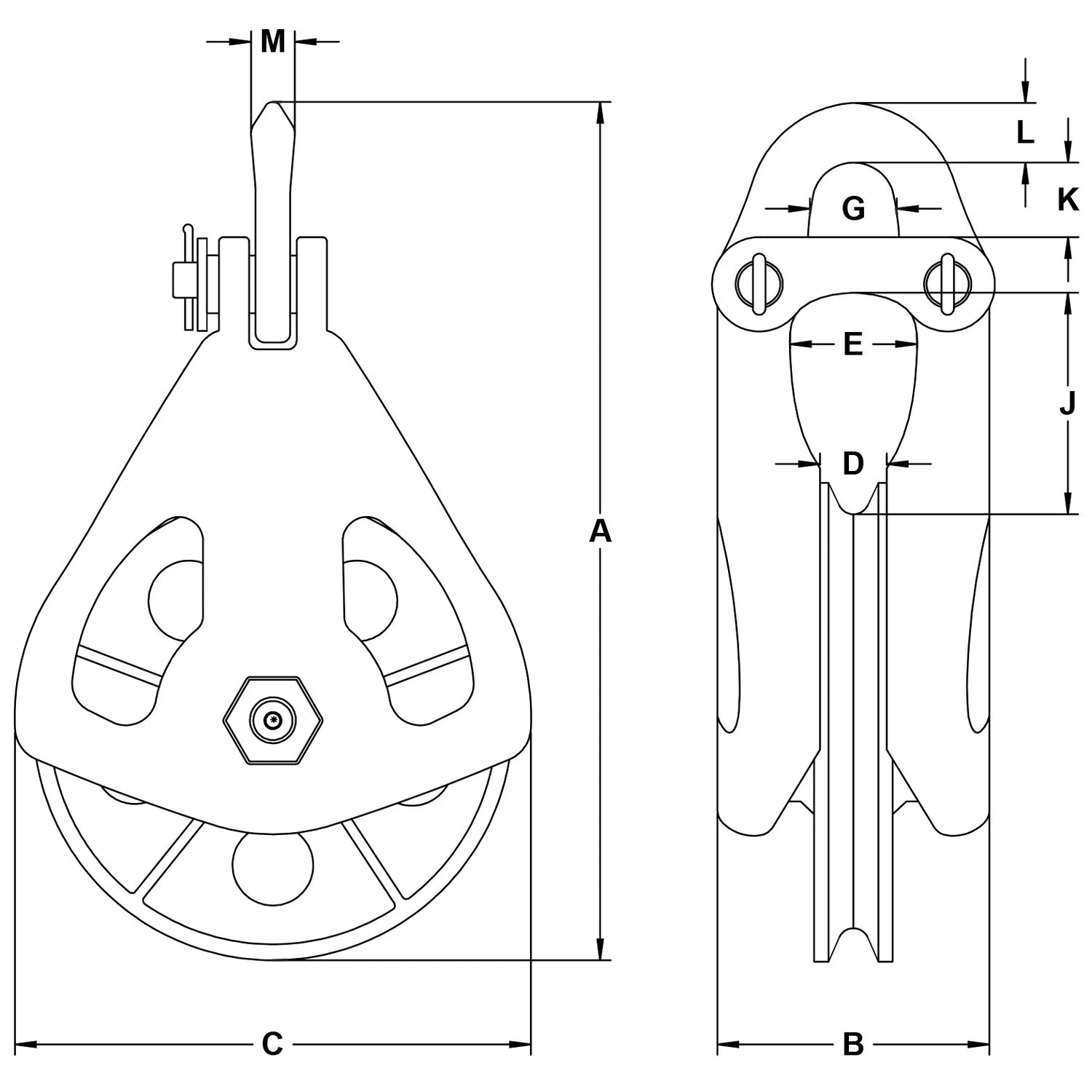

| Height (A) | 18 |
| Thickness (B) | 5.5 |
| Width (C) | 10.75 |
| Throat Bottom Width (D) | 1.38 |
| Inside Throat Width (E) | 2.25 |
| Yoke Width (G) | 1.63 |
| Throat Height Below (J) | 4.25 |
| Throat Height Above (K) | 2.5 |
| Yoke Bar Height (L) | 1.5 |
| Yoke Bar Width (M) | 1.31 |
