Skookum | SKU:
SKM-515A-YOKE

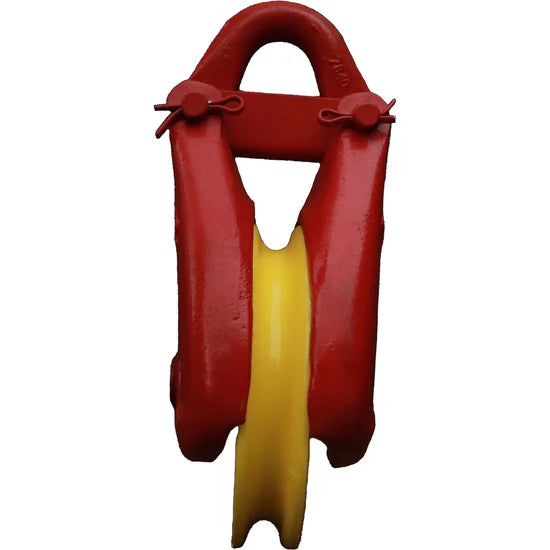

Skookum Ropemaster 15 Ton 15" Half Sided Block with REGULAR YOKE
Regular price
$2,589.03
Unit price
/
Unavailable
Ropemaster 15T half sided block with yoke. Model 515A with 15 in. sheave for 1 in. wire rope. Timken roller bearings.
- Work-hardening manganese steel sheave maximize wire rope & sheave life.
- Alloy steel sheaves are used on lightweight models 513A & 515A.
- Equipped with tapered roller bearings for long life in higher line speed applications.
- Recessed sheave design prevents wire rope from binding between sheave and block side.
- Half side design for strength with minimized weight.
- Versatile draw pin allow for rapid reeving & exchange of attaching style.
- Rugged cast alloy steel sides for demanding environments.
- ASME B30.26-1 compliant
| Sheave Diameter | 15 |
| Wire Rope Min | 7/8 |
| Wire Rope Max | 1 |
| WLL (TONS) | 15 |
| Weight (LBS) | 73 |
| Replacement Sheave Part # | SKM-226805 |
| Draw Pin Part # | SKM-551465 |
| Height (A) | 24.25 |
| Thickness (B) | 6 |
| Width (C) | 15.5 |
| Throat Bottom (D) | 2.38 |
| Inside Throat Width (E) | 3 |
| Yoke Width Above (F) | 3 |
| Throat Height | 7.63 |
| Throat Height Below (H) | 3.25 |
| Throat Height Above (J) | 2.25 |
| Yoke Bar Height (K) | 1.5 |
| Yoke Bar Width (L) | 1.63 |
