Bottle Lifting Device

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Bottle Lifters proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A..
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.

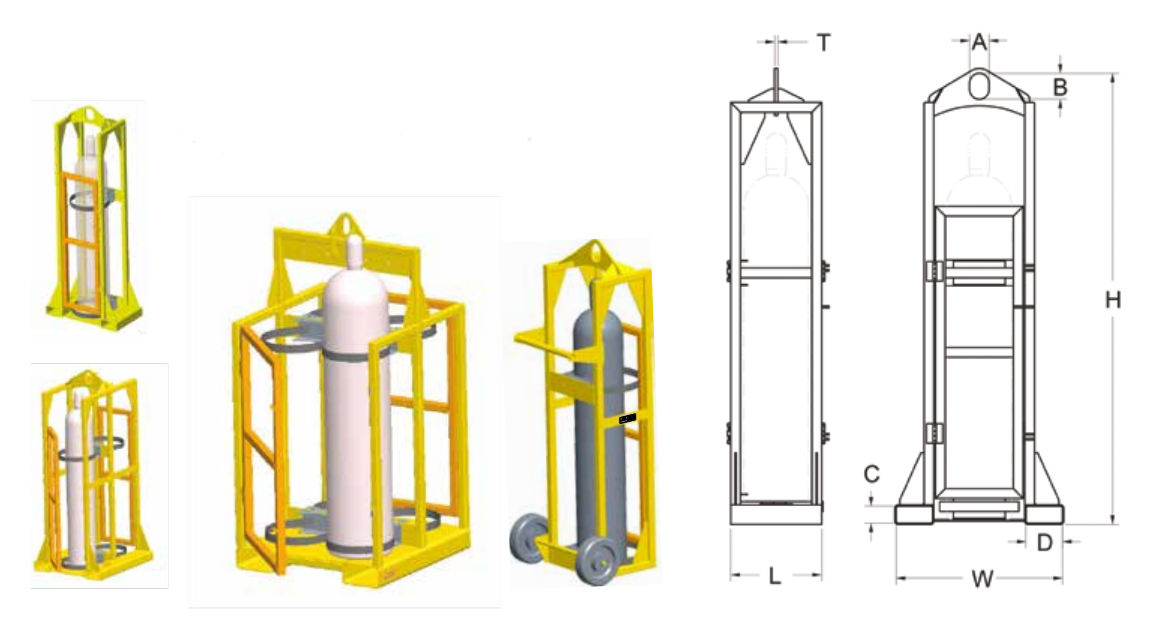

MPN	WLL	Tank Capacity	A	B	C	D	T	L	W	H	Weight (lbs)	Price	Quantity
500 lbs 1-Tank Bottle Lifter With Straps And Locking Doors (20199)	20199	500	1	3	4	2.62	5.62	0.5	14	26	70	150	$4,411.03

750 lbs 2-Tank Bottle Lifter With Straps And Locking Doors (16307)	16307	750	2	3	4	3	6	0.5	29.5	26	64.5	300	$6,008.84

1,500 lbs 4-Tank Bottle Lifter With Straps And Locking Doors (17324)	17324	1500	4	3	4	5	9	0.5	31	30.5	65	525	$9,259.07

500 lbs 1-Tank Bottle Lifter / Cart With Straps And Locking Doors (25694)	25694	500	1	3	4	N/A	N/A	0.5	21.5	25.8	68	115	$4,964.14

Products

MPN: 20199

WLL: 500

Tank Capacity: 1

A: 3

B: 4

C: 2.62

D: 5.62

T: 0.5

L: 14

W: 26

H: 70

Weight (lbs): 150

Price:$4,411.03

MPN: 16307

WLL: 750

Tank Capacity: 2

A: 3

B: 4

C: 3

D: 6

T: 0.5

L: 29.5

W: 26

H: 64.5

Weight (lbs): 300

Price:$6,008.84

MPN: 17324

WLL: 1500

Tank Capacity: 4

A: 3

B: 4

C: 5

D: 9

T: 0.5

L: 31

W: 30.5

H: 65

Weight (lbs): 525

Price:$9,259.07

MPN: 25694

WLL: 500

Tank Capacity: 1

A: 3

B: 4

C: N/A

D: N/A

T: 0.5

L: 21.5

W: 25.8

H: 68

Weight (lbs): 115

Price:$4,964.14
