CM USA Carbon SPA Shackles

CM Industrial/Government-Rated Carbon Shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

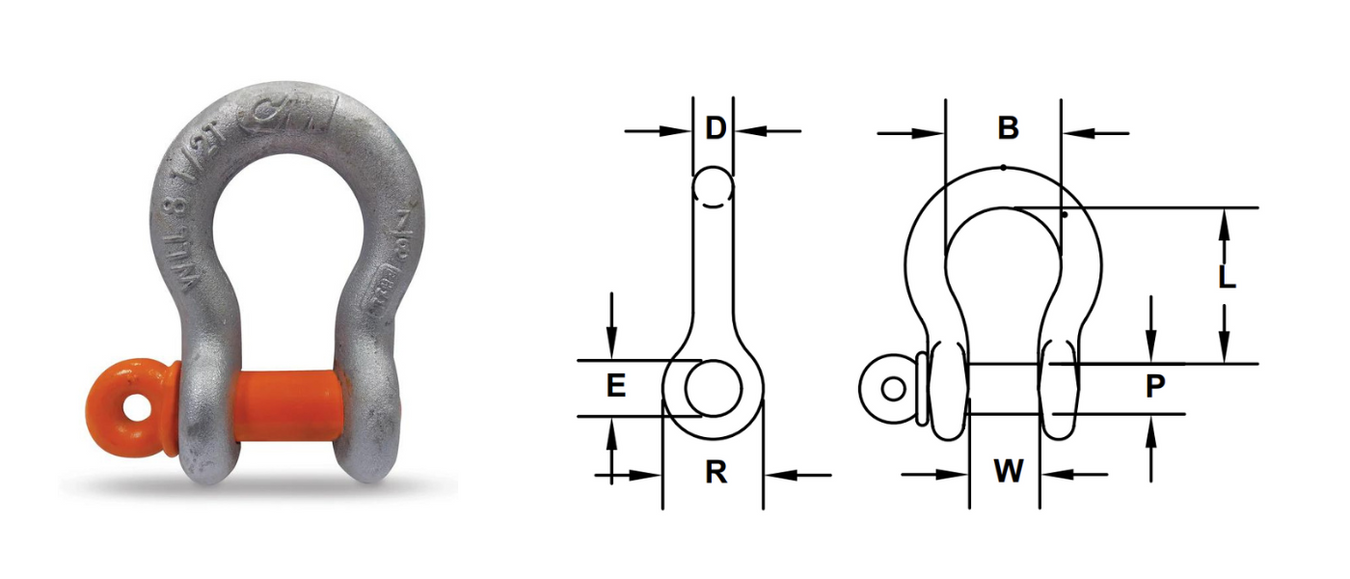

Size D (in.)	Working Load Limit (Ton)	MPN	P (in.)	E (in.)	W (in.)	R (in.)	L (in.)	Domestic	B (in.)	Price	Quantity
CM 3/16" 1/3 ton Screw Pin Carbon Anchor Shackle	3/16	1/3	MC645G	0.25	0.29	0.38	0.57	0.88	Yes	0.58	$7.55

CM 1/4" 1/2 ton Screw Pin Carbon Anchor Shackle	1/4	1/2	MC646G	0.31	0.36	0.47	0.75	1.13	Yes	0.75	$9.66

CM 5/16" 3/4 ton Screw Pin Carbon Anchor Shackle	5/16	3/4	MC647G	0.38	0.45	0.53	0.84	1.25	Yes	0.81	$10.08

CM 3/8" 1 ton Screw Pin Carbon Anchor Shackle	3/8	1	MC648G	0.44	0.52	0.66	1.00	1.40	Yes	1.00	$11.17

CM 7/16" 1-1/2 ton Screw Pin Carbon Anchor Shackle	7/16	1-1/2	MC649G	0.50	0.58	0.72	1.15	1.69	Yes	1.19	$12.17

CM 1/2" 2 ton Screw Pin Carbon Anchor Shackle	1/2	2	MC650G	0.63	0.70	0.84	1.34	1.94	Yes	1.38	$18.20

CM 5/8" 3-1/4 ton Screw Pin Carbon Anchor Shackle	5/8	3-1/4	MC651G	0.75	0.83	1.06	1.66	2.41	Yes	1.63	$29.67

CM 3/4" 4-3/4 ton Screw Pin Carbon Anchor Shackle	3/4	4-3/4	MC652G	0.88	0.95	1.28	1.94	2.84	Yes	1.89	$40.54

CM 7/8" 6-1/2 ton Screw Pin Carbon Anchor Shackle	7/8	6-1/2	MC653G	1.00	1.09	1.44	2.14	3.31	Yes	2.06	$55.95

CM 1" 8-1/2 ton Screw Pin Carbon Anchor Shackle	1	8-1/2	MC654G	1.13	1.22	1.72	2.44	3.75	Yes	2.52	$75.30

CM 1-1/8" 9-1/2 ton Screw Pin Carbon Anchor Shackle	1-1/8	9-1/2	MC655G	1.25	1.36	1.84	2.66	4.02	Yes	2.69	$122.12

CM 1-1/4" 12 ton Screw Pin Carbon Anchor Shackle	1-1/4	12	MC656G	1.38	1.52	2.03	3.15	4.63	Yes	2.88	$156.95

CM 1-3/8" 13-1/2 ton Screw Pin Carbon Anchor Shackle	1-3/8	13-1/2	MC666G	1.50	1.65	2.25	3.25	5.19	Yes	3.25	$214.51

CM 1-1/2" 17 ton Screw Pin Carbon Anchor Shackle	1-1/2	17	MC657G	1.63	1.77	2.41	3.50	5.63	Yes	3.50	$253.27

CM 1-5/8" 20 ton Screw Pin Carbon Anchor Shackle	1-5/8	20	MC685G	1.75	1.88	2.66	3.91	6.13	Yes	4.13	$346.73

CM 1-3/4" 25 ton Screw Pin Carbon Anchor Shackle	1-3/4	25	MC677G	2.00	2.13	2.94	4.06	6.97	Yes	4.75	$439.15

CM 2" 35 ton Screw Pin Carbon Anchor Shackle	2	35	M658G	2.25	2.13	3.28	4.51	7.44	Yes	5.50	$509.47

Products

Size D (in.): 3/16

Working Load Limit (Ton): 1/3

MPN: MC645G

P (in.): 0.25

E (in.): 0.29

W (in.): 0.38

R (in.): 0.57

L (in.): 0.88

Domestic: Yes

B (in.): 0.58

Price:$7.55

Size D (in.): 1/4

Working Load Limit (Ton): 1/2

MPN: MC646G

P (in.): 0.31

E (in.): 0.36

W (in.): 0.47

R (in.): 0.75

L (in.): 1.13

Domestic: Yes

B (in.): 0.75

Price:$9.66

Size D (in.): 5/16

Working Load Limit (Ton): 3/4

MPN: MC647G

P (in.): 0.38

E (in.): 0.45

W (in.): 0.53

R (in.): 0.84

L (in.): 1.25

Domestic: Yes

B (in.): 0.81

Price:$10.08

Size D (in.): 3/8

Working Load Limit (Ton): 1

MPN: MC648G

P (in.): 0.44

E (in.): 0.52

W (in.): 0.66

R (in.): 1.00

L (in.): 1.40

Domestic: Yes

B (in.): 1.00

Price:$11.17

Size D (in.): 7/16

Working Load Limit (Ton): 1-1/2

MPN: MC649G

P (in.): 0.50

E (in.): 0.58

W (in.): 0.72

R (in.): 1.15

L (in.): 1.69

Domestic: Yes

B (in.): 1.19

Price:$12.17

Size D (in.): 1/2

Working Load Limit (Ton): 2

MPN: MC650G

P (in.): 0.63

E (in.): 0.70

W (in.): 0.84

R (in.): 1.34

L (in.): 1.94

Domestic: Yes

B (in.): 1.38

Price:$18.20

Size D (in.): 5/8

Working Load Limit (Ton): 3-1/4

MPN: MC651G

P (in.): 0.75

E (in.): 0.83

W (in.): 1.06

R (in.): 1.66

L (in.): 2.41

Domestic: Yes

B (in.): 1.63

Price:$29.67

Size D (in.): 3/4

Working Load Limit (Ton): 4-3/4

MPN: MC652G

P (in.): 0.88

E (in.): 0.95

W (in.): 1.28

R (in.): 1.94

L (in.): 2.84

Domestic: Yes

B (in.): 1.89

Price:$40.54

Size D (in.): 7/8

Working Load Limit (Ton): 6-1/2

MPN: MC653G

P (in.): 1.00

E (in.): 1.09

W (in.): 1.44

R (in.): 2.14

L (in.): 3.31

Domestic: Yes

B (in.): 2.06

Price:$55.95

Size D (in.): 1

Working Load Limit (Ton): 8-1/2

MPN: MC654G

P (in.): 1.13

E (in.): 1.22

W (in.): 1.72

R (in.): 2.44

L (in.): 3.75

Domestic: Yes

B (in.): 2.52

Price:$75.30

Size D (in.): 1-1/8

Working Load Limit (Ton): 9-1/2

MPN: MC655G

P (in.): 1.25

E (in.): 1.36

W (in.): 1.84

R (in.): 2.66

L (in.): 4.02

Domestic: Yes

B (in.): 2.69

Price:$122.12

Size D (in.): 1-1/4

Working Load Limit (Ton): 12

MPN: MC656G

P (in.): 1.38

E (in.): 1.52

W (in.): 2.03

R (in.): 3.15

L (in.): 4.63

Domestic: Yes

B (in.): 2.88

Price:$156.95

Size D (in.): 1-3/8

Working Load Limit (Ton): 13-1/2

MPN: MC666G

P (in.): 1.50

E (in.): 1.65

W (in.): 2.25

R (in.): 3.25

L (in.): 5.19

Domestic: Yes

B (in.): 3.25

Price:$214.51

Size D (in.): 1-1/2

Working Load Limit (Ton): 17

MPN: MC657G

P (in.): 1.63

E (in.): 1.77

W (in.): 2.41

R (in.): 3.50

L (in.): 5.63

Domestic: Yes

B (in.): 3.50

Price:$253.27

Size D (in.): 1-5/8

Working Load Limit (Ton): 20

MPN: MC685G

P (in.): 1.75

E (in.): 1.88

W (in.): 2.66

R (in.): 3.91

L (in.): 6.13

Domestic: Yes

B (in.): 4.13

Price:$346.73

Size D (in.): 1-3/4

Working Load Limit (Ton): 25

MPN: MC677G

P (in.): 2.00

E (in.): 2.13

W (in.): 2.94

R (in.): 4.06

L (in.): 6.97

Domestic: Yes

B (in.): 4.75

Price:$439.15

Size D (in.): 2

Working Load Limit (Ton): 35

MPN: M658G

P (in.): 2.25

E (in.): 2.13

W (in.): 3.28

R (in.): 4.51

L (in.): 7.44

Domestic: Yes

B (in.): 5.50

Price:$509.47
