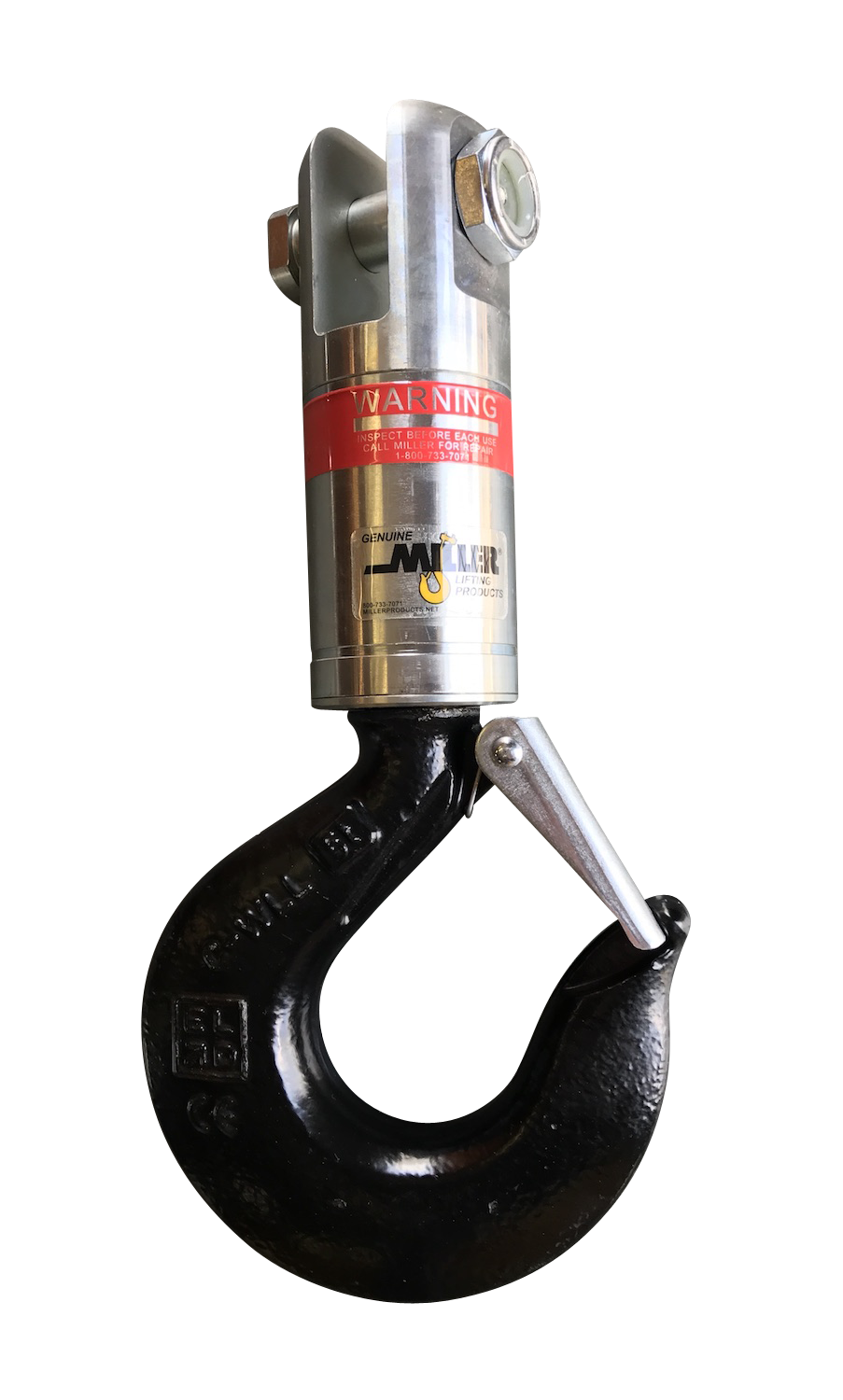

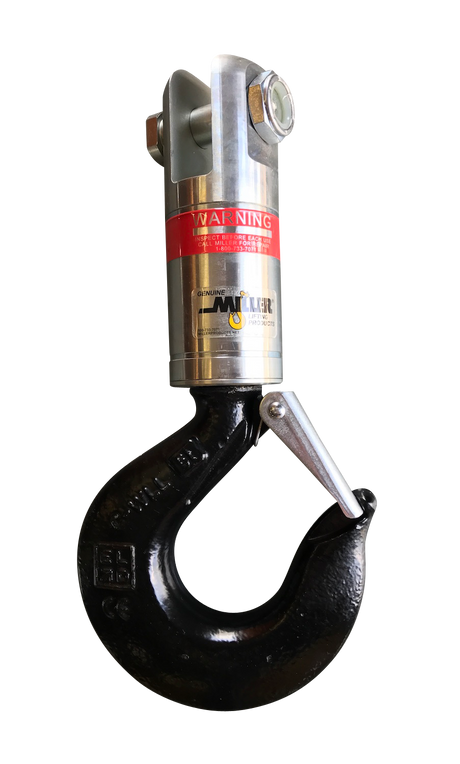

Celvis to Hook – Type 115

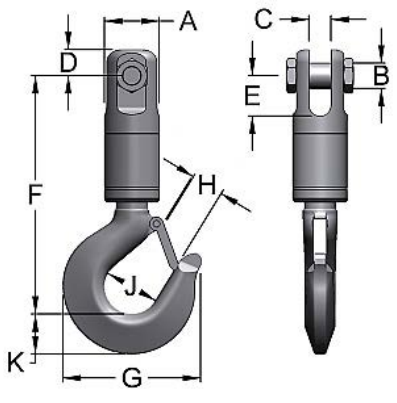

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	J	K	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model B-115 Jaw to Hook WLL 1.5 tons	1.5	B-115	3/8	1.63	0.5	0.5	0.69	0.78	5.88	3.63	1	1.63	1	2.31	$614.25

Miller Angular Contact Ball Bearing Swivel Model C-115 Jaw to Hook WLL 3 tons (C-115)	3	C-115	1/2	2	0.75	0.75	0.94	1.19	8.56	4.88	1.34	2	1.38	5.94	$831.60

Miller Angular Contact Ball Bearing Swivel Model D-115 Jaw to Hook WLL 5 tons	5	D-115	5/8	2.5	0.88	1	1.13	1.56	10.81	6.5	1.34	2.5	1.81	11.81	$1,171.80

Miller Angular Contact Ball Bearing Swivel Model EE-115 Jaw to Hook WLL 8.5 tons	8.5	EE-115	3/4	2.88	1.19	1.56	1.34	2.09	13.75	8.69	2.25	3.25	2.59	24	$1,426.95

Miller Angular Contact Ball Bearing Swivel Model G-115 Jaw to Hook WLL 10 tons	10	G-115	7/8	4	1.5	1.75	1.75	3.5	17.88	11	3	3.25	3	53	$2,570.40

Miller Angular Contact Ball Bearing Swivel Model GG-115 Jaw to Hook WLL 15 tons	15	GG-115	1	4	1.5	1.75	1.75	3.5	17.88	11	3	4.25	3	53	$2,627.10

Miller Angular Contact Ball Bearing Swivel Model H-115 Jaw to Hook WLL 25 tons	25	H-115	1 1/4	5	2	2	2.38	3.69	23.01	12.02	3.54	4.41	4.21	131	$5,017.95

Miller Angular Contact Ball Bearing Swivel Model HH-115 Jaw to Hook WLL 35 tons	35	HH-115	1 1/2	5	2	2	2.38	3.69	23.01	12.02	3.54	4.41	4.21	131	$5,972.40

Products

Working Load Limit (ton): 1.5

MPN: B-115

Rope Size: 3/8

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 2.31

Price:$614.25

Working Load Limit (ton): 3

MPN: C-115

Rope Size: 1/2

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 5.94

Price:$831.60

Working Load Limit (ton): 5

MPN: D-115

Rope Size: 5/8

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 11.81

Price:$1,171.80

Working Load Limit (ton): 8.5

MPN: EE-115

Rope Size: 3/4

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 24

Price:$1,426.95

Working Load Limit (ton): 10

MPN: G-115

Rope Size: 7/8

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 53

Price:$2,570.40

Working Load Limit (ton): 15

MPN: GG-115

Rope Size: 1

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 53

Price:$2,627.10

Working Load Limit (ton): 25

MPN: H-115

Rope Size: 1 1/4

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 131

Price:$5,017.95

Working Load Limit (ton): 35

MPN: HH-115

Rope Size: 1 1/2

A:

B:

C:

D:

E:

F:

G:

H:

J:

K:

Weight (lbs): 131

Price:$5,972.40
