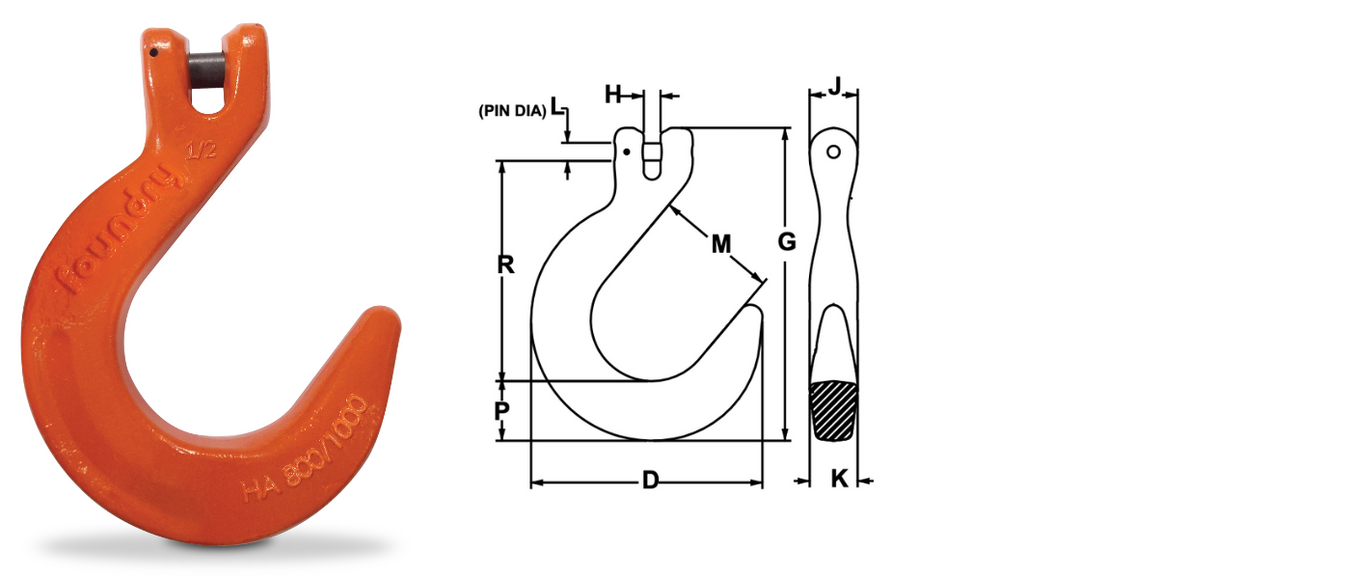

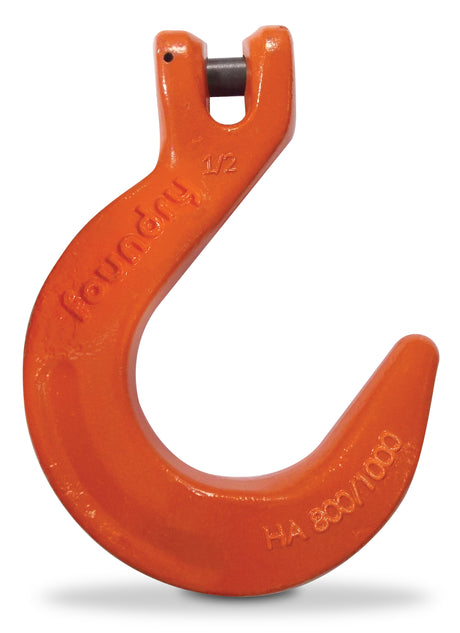

Clevis Foundry Hooks Grade 100

WORKING LOAD LIMIT: 4,300 TO 35,300 LBS.

Benefits & Features

  • Clevlok® head designed for easy assembly
  • “I” beam body design increases grip when removing from load
  • Meets ASTM A952 standards
  • Quenched & tempered alloy steel
  • Individually proof tested
  • Durable orange powder coated finish
  • 4:1 design factor
  • Meets ASME B30.10

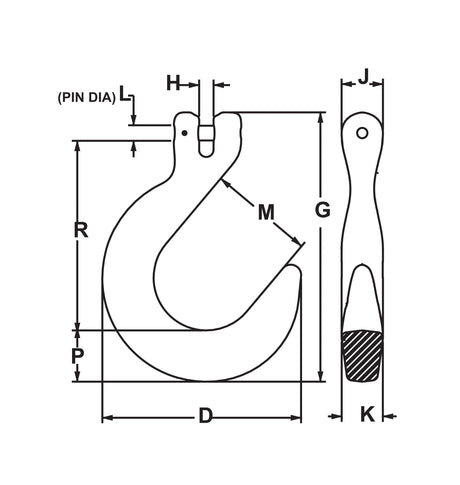

Size (in.) Working Load Limit (lbs.) MPN D (in.) G (in.) H (in.) J (in.) K (in.) L (in.) M (in.) P (in.) R (in.) Price Quantity
9/32 4,300 475798 4.82 6.52 0.35 1.00 1.00 0.36 2.55 1.24 4.59 $156.95
3/8 8,800 475799 5.73 7.87 0.47 1.16 1.27 0.51 3.05 1.43 5.59 $239.87
1/2 15,000 475800 6.83 9.40 0.59 1.50 1.50 0.63 3.55 1.75 6.58 $287.82
5/8 22,600 475801 7.94 10.98 0.70 1.74 1.81 0.75 4.07 2.03 7.69 $559.92
3/4 35,300 475802 9.17 13.20 0.88 2.05 2.00 0.91 4.50 2.63 8.87 $639.88

Products

Size (in.): 9/32
Working Load Limit (lbs.): 4,300
MPN: 475798
D (in.): 4.82
G (in.): 6.52
H (in.): 0.35
J (in.): 1.00
K (in.): 1.00
L (in.): 0.36
M (in.): 2.55
P (in.): 1.24
R (in.): 4.59
Price:$156.95
Size (in.): 3/8
Working Load Limit (lbs.): 8,800
MPN: 475799
D (in.): 5.73
G (in.): 7.87
H (in.): 0.47
J (in.): 1.16
K (in.): 1.27
L (in.): 0.51
M (in.): 3.05
P (in.): 1.43
R (in.): 5.59
Price:$239.87
Size (in.): 1/2
Working Load Limit (lbs.): 15,000
MPN: 475800
D (in.): 6.83
G (in.): 9.40
H (in.): 0.59
J (in.): 1.50
K (in.): 1.50
L (in.): 0.63
M (in.): 3.55
P (in.): 1.75
R (in.): 6.58
Price:$287.82
Size (in.): 5/8
Working Load Limit (lbs.): 22,600
MPN: 475801
D (in.): 7.94
G (in.): 10.98
H (in.): 0.70
J (in.): 1.74
K (in.): 1.81
L (in.): 0.75
M (in.): 4.07
P (in.): 2.03
R (in.): 7.69
Price:$559.92
Size (in.): 3/4
Working Load Limit (lbs.): 35,300
MPN: 475802
D (in.): 9.17
G (in.): 13.20
H (in.): 0.88
J (in.): 2.05
K (in.): 2.00
L (in.): 0.91
M (in.): 4.50
P (in.): 2.63
R (in.): 8.87
Price:$639.88
