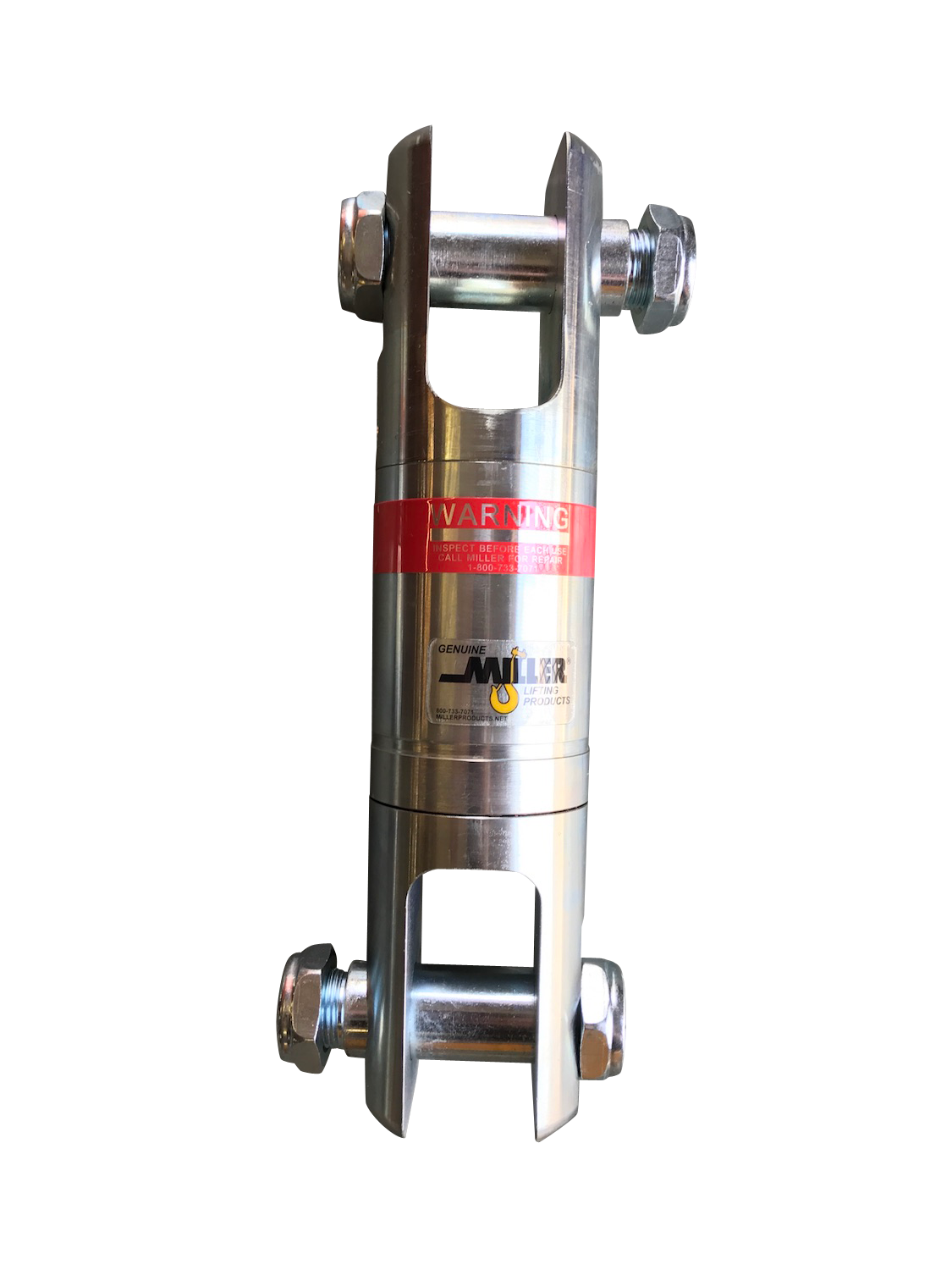

Clevis to Clevis – Type 111

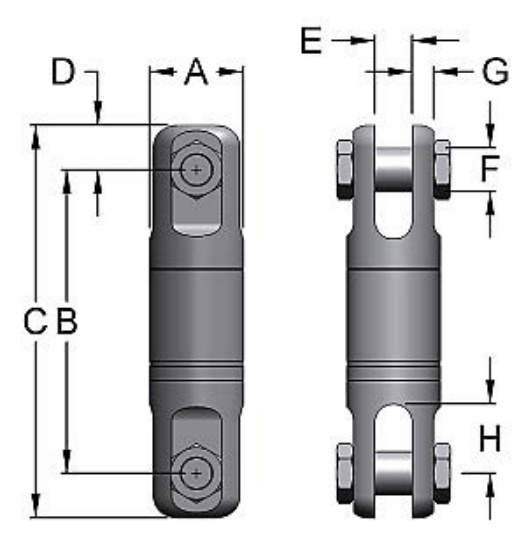

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model A-111 Jaw to Jaw WLL 0.45 tons	0.45	A-111	1/8	0.88	2.38	3.13	0.38	0.25	0.25	0.19	0.41	0.37	$425.25

Miller Angular Contact Ball Bearing Swivel Model BB-111 Jaw to Jaw WLL 0.75 tons	0.75	BB-111	1/4	1.31	3.5	4.38	0.44	0.31	0.38	0.22	0.56	2	$529.20

Miller Angular Contact Ball Bearing Swivel Model B-111 Jaw to Jaw WLL 1.5 tons	1.5	B-111	3/8	1.63	4.06	5.44	0.69	0.5	0.5	0.31	0.78	0.93	$718.20

Miller Angular Contact Ball Bearing Swivel Model C-111 Jaw to Jaw WLL 3 tons	3	C-111	1/2	2	6.25	8.09	0.94	0.75	0.75	0.38	1.19	4.5	$803.25

Miller Angular Contact Ball Bearing Swivel Model D-111 Jaw to Jaw WLL 5 tons (D-111)	5	D-111	5/8	2.5	7.94	10.09	1.13	1	0.88	0.56	1.56	9.5	$1,181.25

Miller Angular Contact Ball Bearing Swivel Model EE-111 Jaw to Jaw WLL 8.5 tons	8.5	EE-111	3/4	2.88	9.63	12.31	1.34	1.56	1.19	0.53	2.09	15.25	$1,474.20

Miller Angular Contact Ball Bearing Swivel Model G-111 Jaw to Jaw WLL 10 tons	10	G-111	7/8	4	14	17.5	1.75	1.75	1.5	0.81	3.5	40	$2,371.95

Miller Angular Contact Ball Bearing Swivel Model GG-111 Jaw to Jaw WLL 15 tons	15	GG-111	1	4	14	17.5	1.75	1.75	1.5	0.81	3.5	40	$2,523.15

Miller Angular Contact Ball Bearing Swivel Model H-111 Jaw to Jaw WLL 25 tons	25	H-111	1 1/4	1/4	5	15.94	20.69	2.38	2	2	1.13	3.69	$4,800.60

Miller Angular Contact Ball Bearing Swivel Model HH-111 Jaw to Jaw WLL 35 tons	35	HH-111	1 1/2	1/2	5	15.94	20.69	2.38	2	2	1.13	3.69	$5,339.25

Products

Working Load Limit (ton): 0.45

MPN: A-111

Rope Size: 1/8

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 0.37

Price:$425.25

Working Load Limit (ton): 0.75

MPN: BB-111

Rope Size: 1/4

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 2

Price:$529.20

Working Load Limit (ton): 1.5

MPN: B-111

Rope Size: 3/8

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 0.93

Price:$718.20

Working Load Limit (ton): 3

MPN: C-111

Rope Size: 1/2

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 4.5

Price:$803.25

Working Load Limit (ton): 5

MPN: D-111

Rope Size: 5/8

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 9.5

Price:$1,181.25

Working Load Limit (ton): 8.5

MPN: EE-111

Rope Size: 3/4

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 15.25

Price:$1,474.20

Working Load Limit (ton): 10

MPN: G-111

Rope Size: 7/8

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 40

Price:$2,371.95

Working Load Limit (ton): 15

MPN: GG-111

Rope Size: 1

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 40

Price:$2,523.15

Working Load Limit (ton): 25

MPN: H-111

Rope Size: 1 1/4

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 3.69

Price:$4,800.60

Working Load Limit (ton): 35

MPN: HH-111

Rope Size: 1 1/2

A:

B:

C:

D:

E:

F:

G:

H:

Weight (lbs): 3.69

Price:$5,339.25
