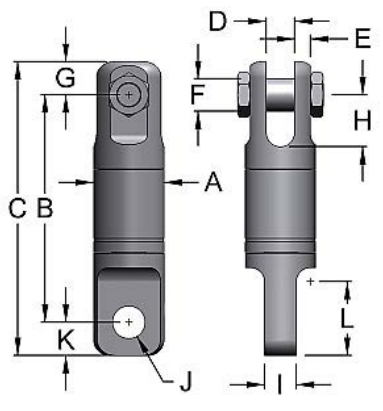

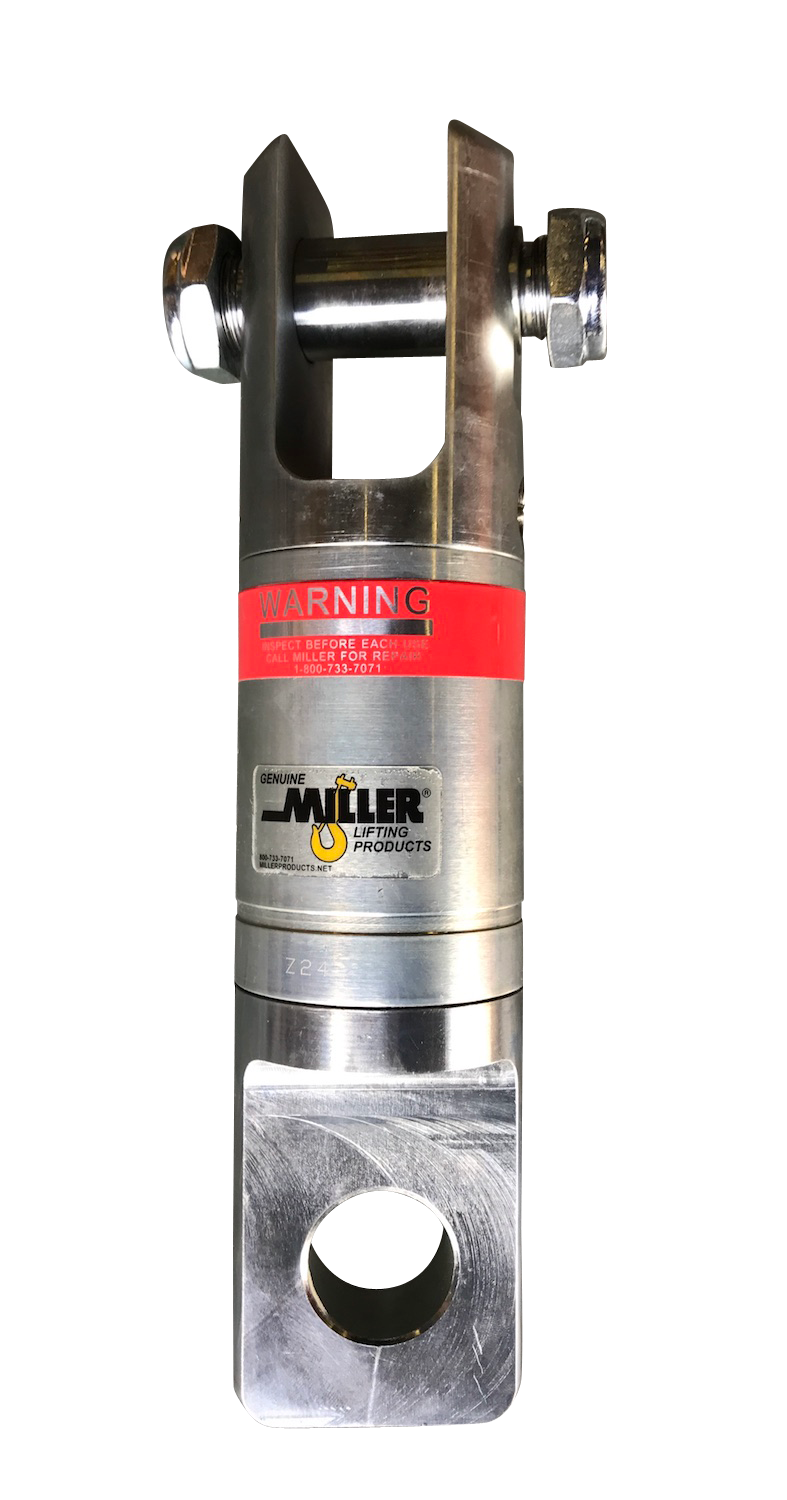

Clevis to Eye – Type 112

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	I	J	K	L	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model A-112 Jaw to Eye WLL 0.45 tons	0.45	A-112	1/8	0.88	2.5	3.25	0.25	0.19	0.25	0.38	0.41	0.25	.26	0.38	0.75	0.31	$378.00

Miller Angular Contact Ball Bearing Swivel Model BB-112 Jaw to Eye WLL 0.75 tons	0.75	BB-112	1/4	1.31	3.56	4.44	0.31	0.22	0.38	0.44	0.56	0.31	0.38	0.44	0.94	0.94	$481.95

Miller Angular Contact Ball Bearing Swivel Model B-112 Jaw to Eye WLL 1.5 tons	1.5	B-112	3/8	1.63	4.13	5.38	0.5	0.31	0.5	0.69	0.78	0.5	0.66	0.63	1.34	1.94	$633.15

Miller Angular Contact Ball Bearing Swivel Model C-112 Jaw to Eye WLL 3 tons	3	C-112	1/2	2	6.19	8.13	0.75	0.38	0.75	0.94	1.19	0.75	0.91	1	1.94	4.25	$756.00

Miller Angular Contact Ball Bearing Swivel Model D-112 Jaw to Eye WLL 5 tons	5	D-112	5/8	2.5	7.88	10.19	1	0.56	0.88	1.13	1.56	1	1.28	1.19	2.5	8.94	$1,096.20

Miller Angular Contact Ball Bearing Swivel Model EE-112 Jaw to Eye WLL 8.5 tons	8.5	EE-112	3/4	2.88	9.5	12.34	1.56	0.53	1.19	1.34	2.19	1.25	1.41	1.5	3.13	15.25	$1,219.05

Miller Angular Contact Ball Bearing Swivel Model G-112 Jaw to Eye WLL 15 tons	10	G-112	7/8	4	13.94	17.5	1.75	0.81	1.5	1.75	3.5	1.72	1.66	1.81	4.66	39	$2,305.80

Miller Angular Contact Ball Bearing Swivel Model GG-112 Jaw to Eye WLL 10 tons	15	GG-112	1	4	13.63	17.5	1.75	0.81	1.5	1.75	3.5	1.94	2.03	2.13	4.91	40	$2,447.55

Miller Angular Contact Ball Bearing Swivel Model H-112 Jaw to Eye WLL 25 tons	25	H-112	1 1/4	5	15.94	20.69	2	1.13	2	2.38	3.69	2.25	2.31	2.38	5.25	75	$4,488.75

Miller Angular Contact Ball Bearing Swivel Model HH-112 Jaw to Eye WLL 35 tons	35	HH-112	1 1/2	5	15.94	20.69	2	1.13	2	2.38	3.69	2.25	2.31	2.38	5.25	75	$4,639.95

Products

Working Load Limit (ton): 0.45

MPN: A-112

Rope Size: 1/8

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 0.31

Price:$378.00

Working Load Limit (ton): 0.75

MPN: BB-112

Rope Size: 1/4

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 0.94

Price:$481.95

Working Load Limit (ton): 1.5

MPN: B-112

Rope Size: 3/8

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 1.94

Price:$633.15

Working Load Limit (ton): 3

MPN: C-112

Rope Size: 1/2

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 4.25

Price:$756.00

Working Load Limit (ton): 5

MPN: D-112

Rope Size: 5/8

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 8.94

Price:$1,096.20

Working Load Limit (ton): 8.5

MPN: EE-112

Rope Size: 3/4

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 15.25

Price:$1,219.05

Working Load Limit (ton): 10

MPN: G-112

Rope Size: 7/8

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 39

Price:$2,305.80

Working Load Limit (ton): 15

MPN: GG-112

Rope Size: 1

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 40

Price:$2,447.55

Working Load Limit (ton): 25

MPN: H-112

Rope Size: 1 1/4

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 75

Price:$4,488.75

Working Load Limit (ton): 35

MPN: HH-112

Rope Size: 1 1/2

A :

B :

C:

D :

E :

F :

G :

H :

I :

J :

K :

L:

Weight (lbs): 75

Price:$4,639.95
