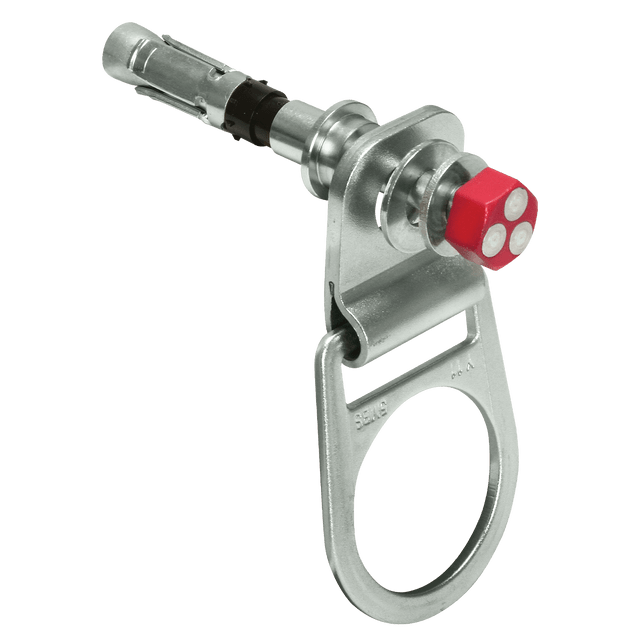

Rotating D-ring Anchor with Concrete Expansion Bolt (7451C)
by Falltech

Rotating D-ring Anchor with Concrete Expansion Bolt (7451C)

$140.86 - $140.86
$140.86
$140.86 - $140.86
$140.86
PN: FT-7451C

Features

  • Features stainless steel anchoring plate with alloy steel connecting D-ring
  • Precision-cut bushing provides 360° D-ring rotation.
  • Ideally suited for temporary or permanent installation in cured concrete
  • Expansion bolt includes torque-indicating cap
  • Features reusable anchoring plate and D-ring
  • Meets OSHA 1926.502 regulations

Material Specifications

  • Anchoring Plate: Plated stainless steel

  • D-ring: Plated alloy steel; 5,000 lb min. static strength

Performance Specifications

  • Static Strength: 5,000 lb min.
  • ANSI User Capacity: 130 to 310 lb max.
  • OSHA User Capacity: 130 to 425 lb max.

Compliant With

OSHA 1926.502 and 1910.66
