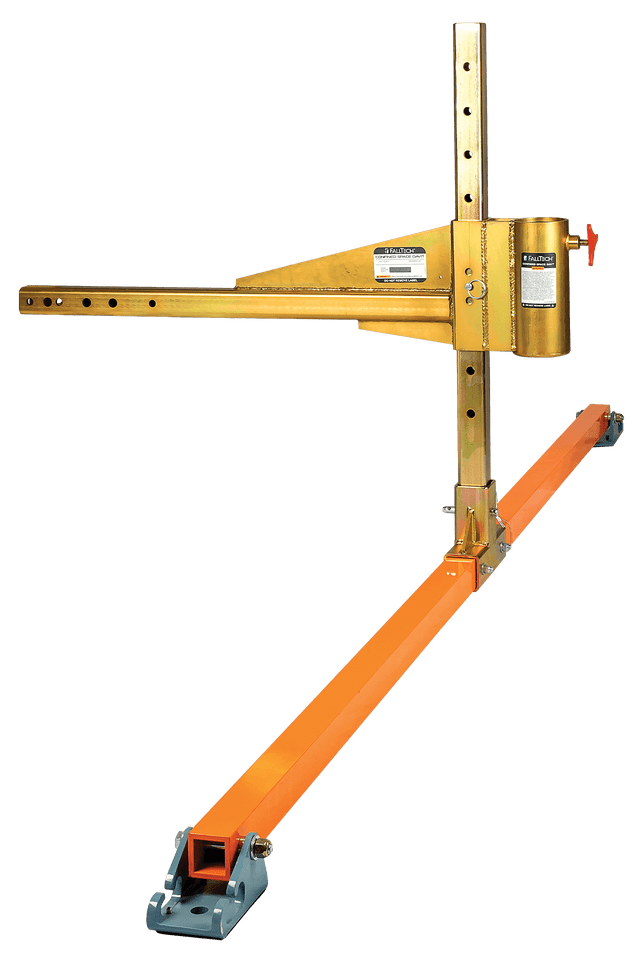

3pc Vehicle Hitch-mount Base for 24" to 44" Systems (6501644)

Features

• Installs to Class 3 minimum vehicle trailer hitch with 2" square receiver
• Steel hitch bar features PVC mast sleeve insert and mast securing handscrew.
• Horizontal foot bar incudes two pivoting feet and vertical T-bar bracket for improved stability
• Two detent pins quickly connect foot bar, vertical post and hitch bar
• 11" to 36" height adjustment range provided in 3" increments
• Constructed with lightweight powder coated aluminum and plated alloy steel components
• Meets OSHA 1926.502 and 1910.66 regulations only when used with offset davit arms and mast extensions


Material Specifications

• Vehicle Hitch-mount Base: Powder coated 6061 aluminum and plated steel


• Sleeve Insert: PVC pipe

Performance Specifications

• Rescue Static Strength: 5,000 lb min.


• Entry/Egress Static Strength: 1,800 lb min.


• Rescue User Capacity: 2 users, 310 lb max. for each person


• Entry/Egress Capacity: 1 user, 310 lb max.

Compliant With:
