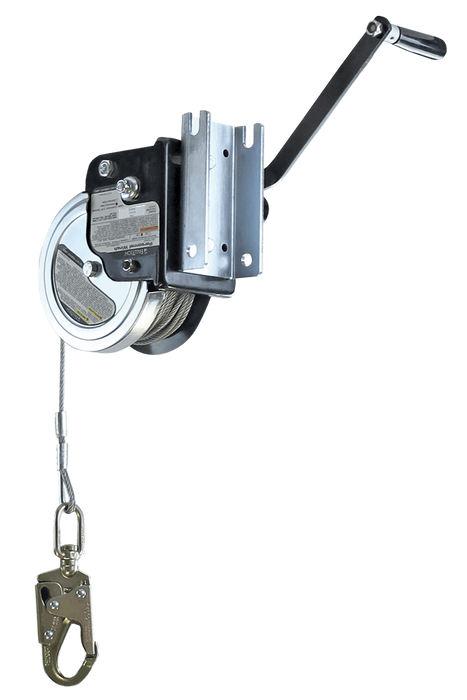

60' FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable (7297S)
by Falltech

60' FallTech® Personnel Winch for Tripods and Davits with Stainless Steel Cable (7297S)

$955.30 - $955.30
$955.30
$955.30 - $955.30
$955.30
PN: FT-7297S

MPN: 7509S

Features

  • Single user mechanical Winch for entering and exiting confined spaces
  • 3/16" stainless steel cable lifeline with alloy steel swivel snap hook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2009

Material Specifications

  • Cable: 3/16" stainless steel; 3,400 lb min. static strength
  • Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
  • Drive and Drum Gears: Plated alloy steel

Performance Specifications

  • Static Strength: 3,100 lb min.

  • Handle Operation Force: 30 lb max.

  • ANSI User Capacity: 130 to 310 lb max.

  • OSHA User Capacity: 130 to 310 lb max.

Compliant With:

OSHA 1926.502, 1926.1200, and 1926.146
ANSI Z359.4-2013 and Z117.1-2016
