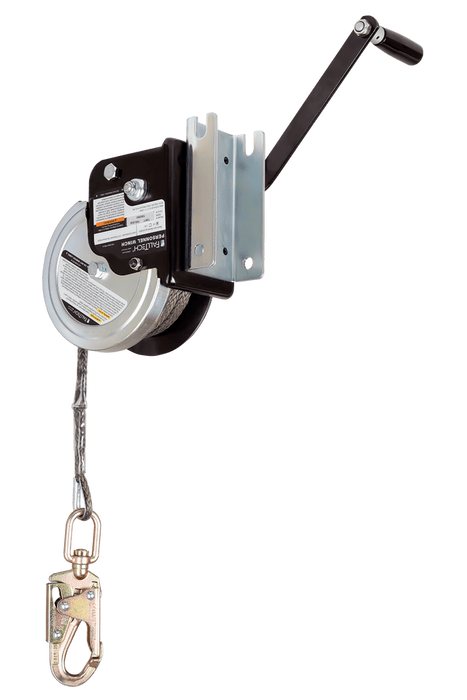

60' FallTech® Personnel Winch for Tripods and Davits with Technora® Rope (7297T)
by Falltech

60' FallTech® Personnel Winch for Tripods and Davits with Technora® Rope (7297T)

$1,034.83 - $1,034.83
$1,034.83
$1,034.83 - $1,034.83
$1,034.83
PN: FT-7297T

MPN: 7509S

Features

  • Single user mechanical Winch for entering and exiting confined spaces
  • 1/4" Technora® synthetic rope line constituent includes alloy steel swivel snaphook.
  • Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed
  • Secondary braking system provides added safety in case of primary brake failure
  • Features folding handle for easy storage and integral mounting bracket for Davit and Tripod installation
  • Includes 20" weather-resistant storage bag and integral mounting bracket for tripods and davits
  • Separate leg brackets 7291A and 7291B for Tripod mounting and 65101DU for Davit mounging may be required
  • Winch is not intended for Material Handling purposes
  • Complies with ANSI Z359.4-2013 and Z117.1-2016

Material Specifications

  • Cable: 1/4" Technora® rope; 4,500 lb min. static strength
  • Lifeline Connector: Zinc plated alloy steel; min. 5,000 lb Tensile Strength with 3,600 lb Gate Strength
  • Drive and Drum Gears: Alloy steel
  • Integral Bracket: Zinc plated alloy steel

Performance Specifications

  • Static Strength: 3,100 lb min.
  • Handle Operation Force: 30 lb max.
  • ANSI User Capacity: 130 to 310 lb max.
  • OSHA User Capacity: 130 to 310 lb max.

Compliant With:

OSHA 1926.502, 1926.1200, and 1926.146
ANSI Z359.4-2013 and Z117.1-2016
