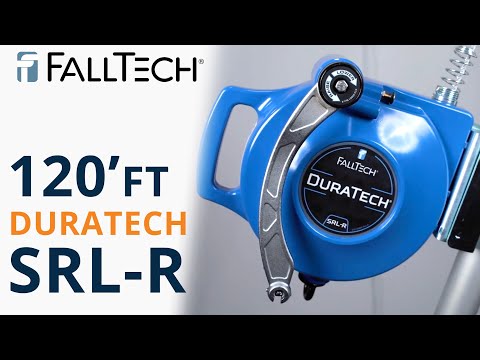

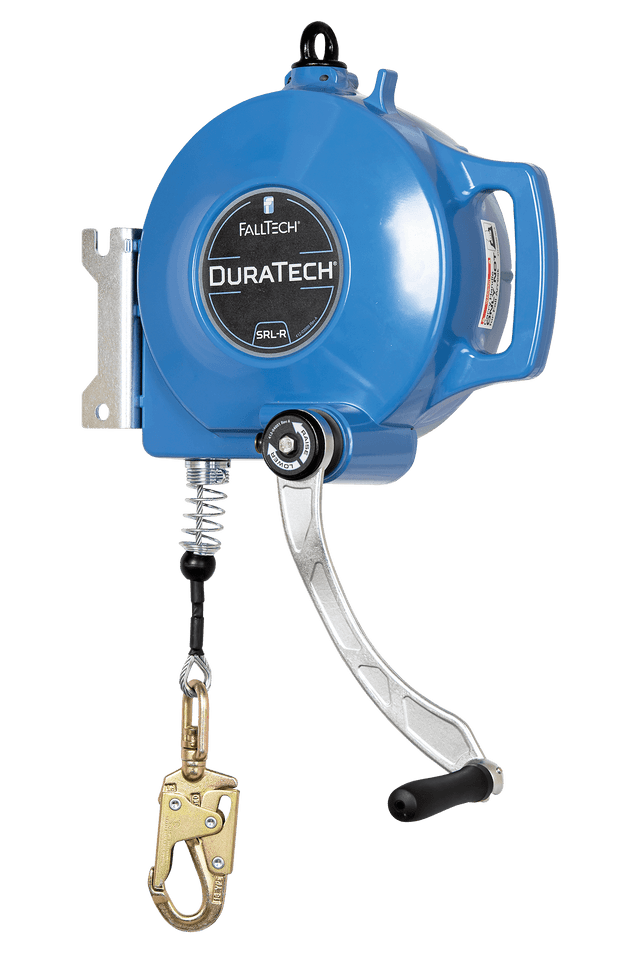

120' DuraTech® 3-way SRL-R with Galvanized Steel Cable for Tripods and Davits (7278)

Original price $4,442.82 - Original price $4,442.82
Original price
$4,442.82
$4,442.82 - $4,442.82
Current price $4,442.82

Features

  • Delivers reliable 3-way operation an SRL and a Retrieval Winch for emergency rescue
  • Heavy-duty, lightweight and corrosion resistant cast aluminum housing construction.
  • 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
  • Features integrated proprietary mounting bracket for tripods and davits
  • Complies with ANSI Z359.14-2021 Class 1 SRL-R

Material Specifications

  • ANSI User Capacity: 130 to 310 lb max.

  • OSHA User Capacity: 130 to 310 lb max.

  • Cable: 3/16" galvanized steel; 3,600 lb min. static strength

  • Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

  • Housing and Drum: Machined aluminum alloy

Performance Specifications

  • Static Strength: 3,600 lb min.

  • ANSI SRL Class/Type: Class 1 SRL-R

  • Avg. Arrest Force: 1,350 lb

  • Max. Arrest Force: 1,800 lb

  • Max. Arrest Distance: 42"

Compliant With:

OSHA 1910.140 and 1926.502
ANSI Z359.14-2021
