Connecting Links

WORKING LOAD LIMIT: 2,700 TO 35,300 LBS.

Benefits & Features

  • Used for overhead lifting slings to connect chain branches to  the master link and the hook to attachments
  • Constructed of drop forged alloy steel
  • Must be matched to chain size
  • Do not use for chain repair or splicing
  • Meets ASTM A952 standards
  • 4:1 design factor

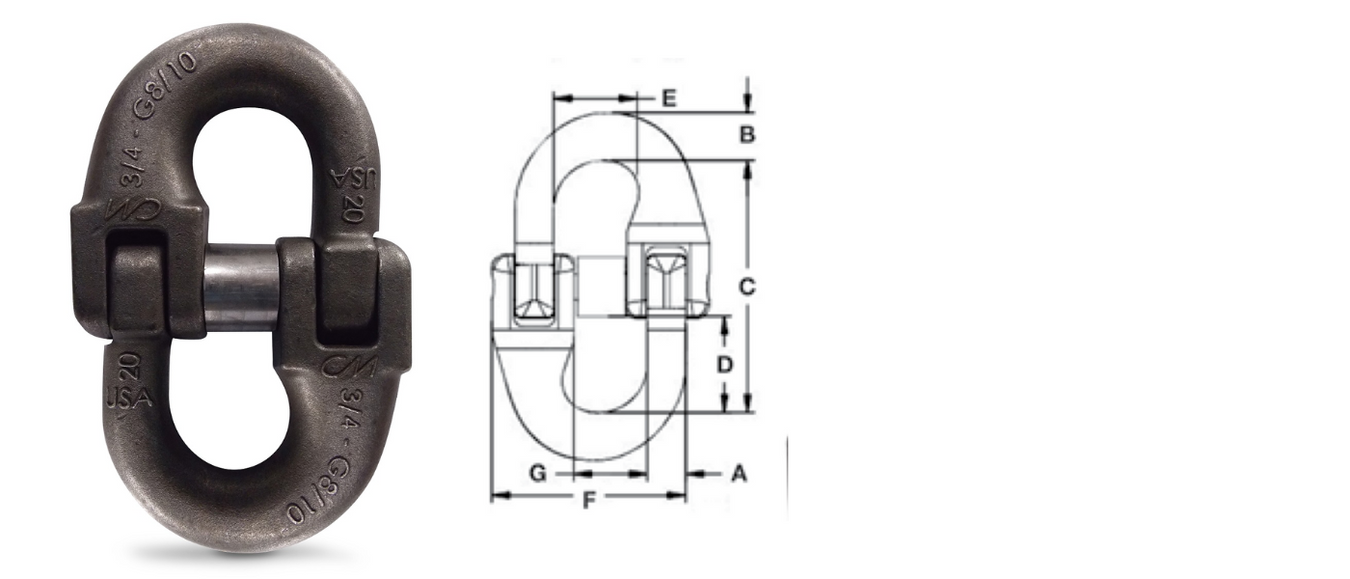

Size (in.) Working Load Limit (lbs.) MPN A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) Price Quantity
7/32 2,700 667021-2 0.29 0.28 1.85 0.69 0.61 1.44 0.52 $32.89
9/32 4,300 667028-2 0.37 0.44 1.94 0.69 0.68 1.58 0.61 $31.34
3/8 8,800 667038-2 0.52 0.50 3.02 1.15 1.05 2.33 0.81 $32.49
1/2 15,000 667050-2 0.64 0.68 3.79 1.43 1.29 2.98 1.10 $53.50
5/8 22,600 667062-2 0.81 0.91 4.50 1.70 1.54 3.57 1.32 $73.96
3/4 35,300 667075-2 0.97 1.07 5.36 2.06 1.78 4.69 1.52 $105.41

Products

Size (in.): 7/32
Working Load Limit (lbs.): 2,700
A (in.): 0.29
B (in.): 0.28
C (in.): 1.85
D (in.): 0.69
E (in.): 0.61
F (in.): 1.44
G (in.): 0.52
Price:$32.89
Size (in.): 9/32
Working Load Limit (lbs.): 4,300
A (in.): 0.37
B (in.): 0.44
C (in.): 1.94
D (in.): 0.69
E (in.): 0.68
F (in.): 1.58
G (in.): 0.61
Price:$31.34
Size (in.): 3/8
Working Load Limit (lbs.): 8,800
A (in.): 0.52
B (in.): 0.50
C (in.): 3.02
D (in.): 1.15
E (in.): 1.05
F (in.): 2.33
G (in.): 0.81
Price:$32.49
Size (in.): 1/2
Working Load Limit (lbs.): 15,000
A (in.): 0.64
B (in.): 0.68
C (in.): 3.79
D (in.): 1.43
E (in.): 1.29
F (in.): 2.98
G (in.): 1.10
Price:$53.50
Size (in.): 5/8
Working Load Limit (lbs.): 22,600
A (in.): 0.81
B (in.): 0.91
C (in.): 4.50
D (in.): 1.70
E (in.): 1.54
F (in.): 3.57
G (in.): 1.32
Price:$73.96
Size (in.): 3/4
Working Load Limit (lbs.): 35,300
A (in.): 0.97
B (in.): 1.07
C (in.): 5.36
D (in.): 2.06
E (in.): 1.78
F (in.): 4.69
G (in.): 1.52
Price:$105.41
